Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $16.63 | $16.29 | $15.78 | $15.10 | Contact US |

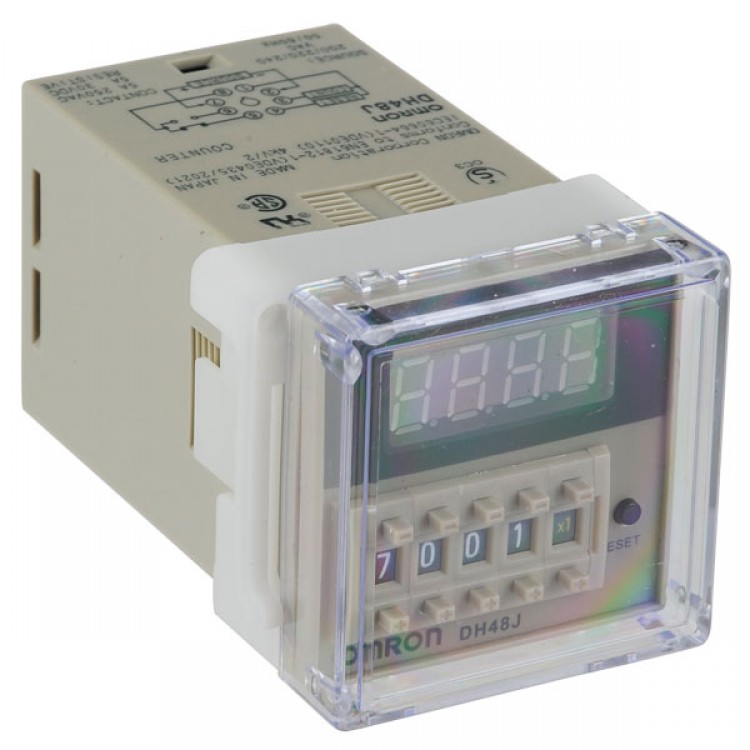

DH48J Magnification Preset 4 Digits Time Relay Socket
Description:
- The magnification can be set, 9999 x1, x10, x100.
- Reset function button, LED 4 digits display, built in socket , plastic dust cover included.
- Preset the counting digits and magnification with the pressed key switch before is powered on.
- The Time Relay is used widely in industrial automatic control system and mechanical equipments
Product Name | Time Relay |
Model | DH48J |
Counting Speed | 30 Times/Sec |
Working Voltage | AC 200/220/240V |
Contact Capacity | AC 250V 5A Resistive Load |
Time Range | 1-9999,10-99990,100-999900 |
Total Size (Approx.) | 5.8 x 5 x 11cm/2.3'' x 2'' x 4.3'' (L*W*H) |
Color | As Picture Shown |
Weight | 195g |
Package Content | 1 x Time Relay w Socket |
