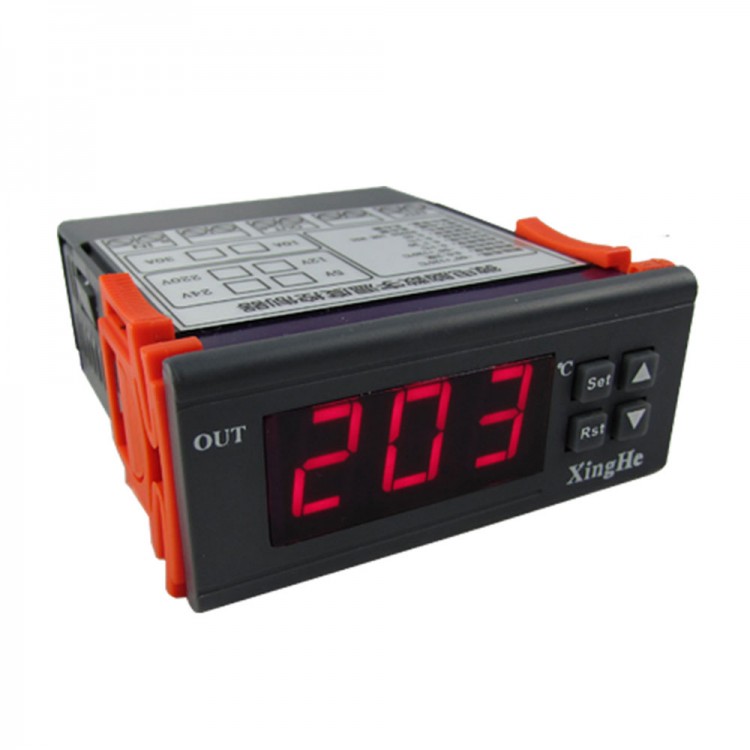

Digital Intelligent Temperature Controller 12V -30 to 999 Degree C Thermostat Cool Heat Switch XH-W2030
Specification:
- Model:XH-W2030
- Input voltage:12V
- Temperature control range: -30~999 Degree Celsius
- Resolution: 1Degree Celsiu
- Temperature measurement accuracy:0.3%FS
- Control accuracy: 1.0 Degree Celsius
- Refresh rate:0.5s
- Thermostat probe: NTC 3950 / B = 10K 0.5%(waterproof type 1M)
- Output: 10A temperature control output+1CH 10A high temperature alarm output
- Environmental Requirements: -30 ~ 60 Degree Celsius, Humidity 20% -85%
- Dimensions: 77 * 35 * 88mm
- Mounting holes dimension: 70.5*29mm
| Code | Code description | Setting range | Factory setting |
| P0 | Cooling/Heating mode | C/H | H |
| P1 | Hysteresis setting | 1-100 | 2 |
| P2 | Temperature correction | -10~+10 | 0.0 |
| P3 | High temperature alarm | -29~999 | OFF |
| P4 | Data lock switch | ON/OFF | OFF |
P0: Cooling/Heating mode
High temperature start cooling mode:C
low temperature start heating mode:H
P1:Hysteresis setting
heating mode(H):measured value<=set value - hysteresis start output heated to set value to stop
cooling mode(C):measured value>=set value - hysteresis start output cooled to set value to stop
P2:Temperature correction
When measuring the temperature and the standard deviation of temperature, you can use this function to correct.Corrected temperature = Temperature before correction + Correction value
P3:High temperature alarm
When the measured temperature exceed this value,the screen will flash and send out warning beeps,at the same time forced turn off output.
P4:Data lock switch
Turn on the data lock switch,can keep the current setting is not altered.If you need to alter,please turn off the data lock switch.
Package list:
- 1 x Temperature sensor
- 2 x Bracket
- 1 x Back cover plate
- 1 x Manual
