Description:
VAC1100A bi-color DC voltage meter can measure DC voltage, current, power, charge and discharge capacity, watt, time, and other physical quantities, parameters can be set overcurrent protection, overvoltage protection, undervoltage protection, limit protection and more species protection, the instrument is very suitable for use in electrical work process parameters voltage, current, watts, etc. to monitor, can also be used for battery charging and discharging process of monitoring capacity.

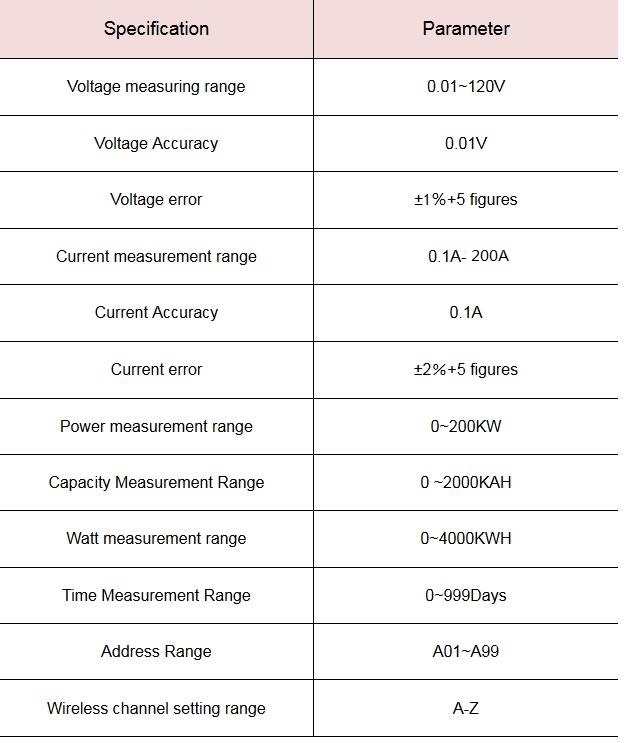

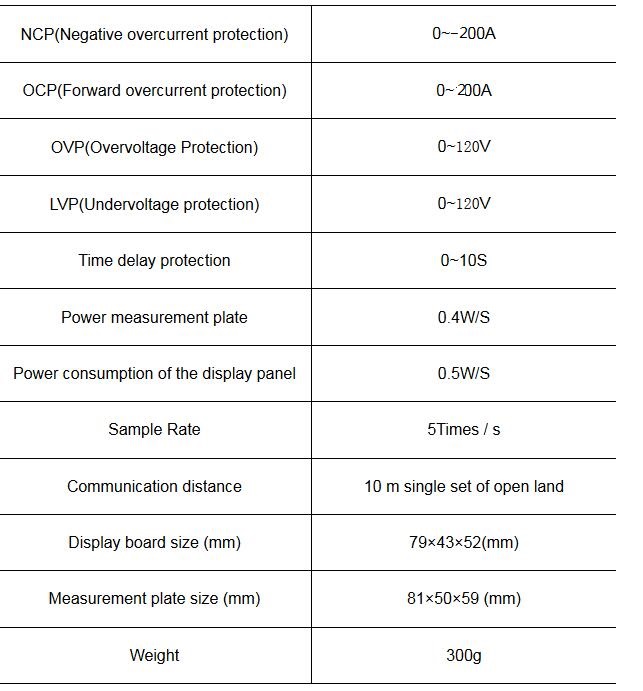

Features:
- The display can be used between the header and measurement modules wireless transmission of data, reducing the cumbersome wiring, but also to avoid errors caused by line losses furthest communication distance is 10 meters, you can also use standard USB cable for wired communication , thanks to the 485 communication, the length of the line can be extended to 1200 m；
- Bidirectional current detector for detecting the charging and discharging of the user can easily detect bidirectional current without changing the wiring;
- Power and memory function, the display can be set off after the header memory before the power saving and Ah, watts and time, to facilitate observation and measurement, but the measurement before the power module need to click the OK button to save parameter;

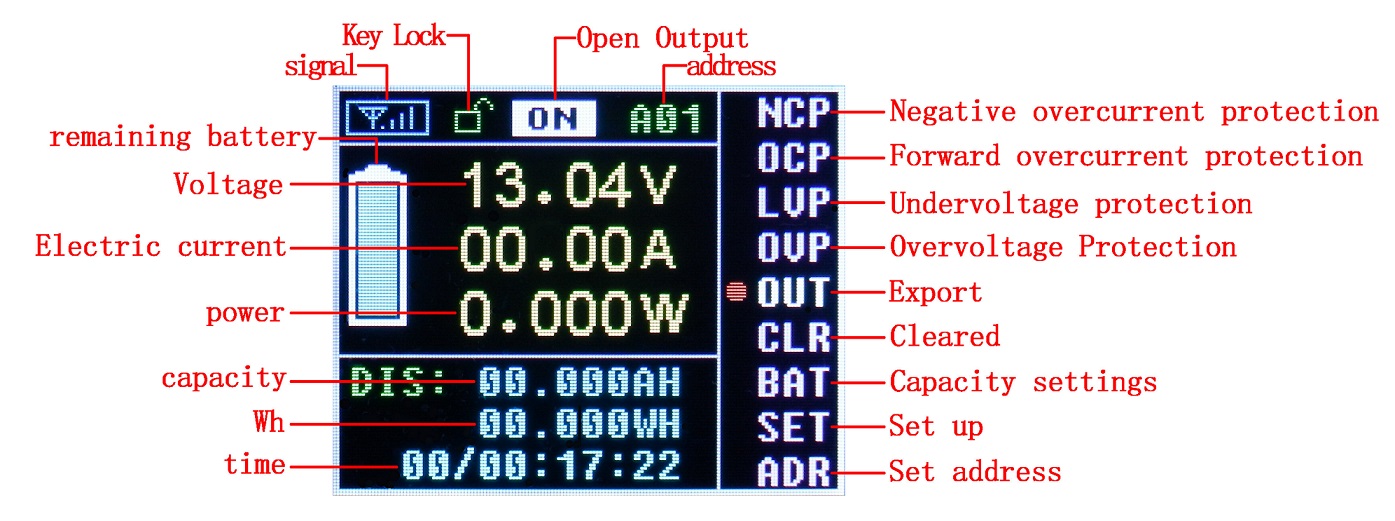

- Voltage, current, power, discharge capacity, and the time when the tile display simultaneously displays information fully clear;
- Equipped with relay,With overcurrent, overvoltage, undervoltage, limit protection (extended relay time) and other functions;
- When the number of security, and the time when the wattage clear function, does not affect the measurement;
- Can be set up to address each individually, and with a view to display a plurality of measurement parameters measuring board;
- The use of multiple machines simultaneously, the machine can be set individually for each channel to avoid mutual interference;
- Wth a screen lock, time off, brightness adjustment and change the language display function;

Display power meter wiring diagram

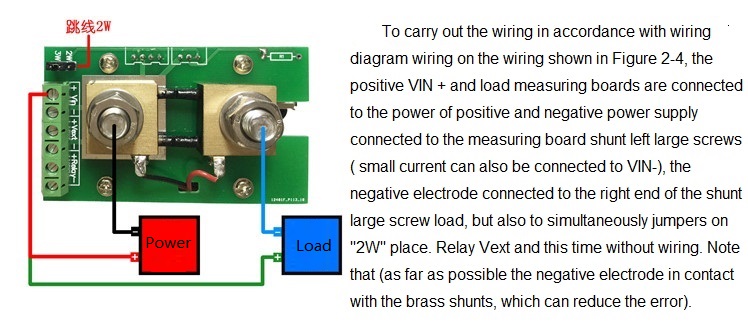

It can display a wired connection between the meter and measurement modules can also be a wireless communication

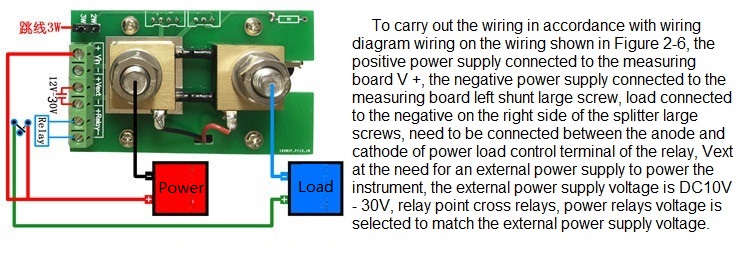

The following shows a wired connection, we have a standard USB extension cable (0.8 m long) if you feel that is not long enough, we can provide an optional 3-meter USB extension cable; since we are using a wired connection 485 communication, Therefore, the maximum length of this line can be extended to 1200 meters.

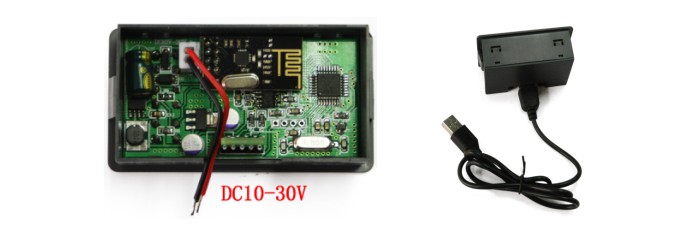

Measurement module and display meter has a built-in wireless transceiver modules, they can be between wireless communication, wireless communication distances are 10 meters, then we need to show the header provides a 5V supply to power it to be open the back cover see a white socket, use 10-30V supply

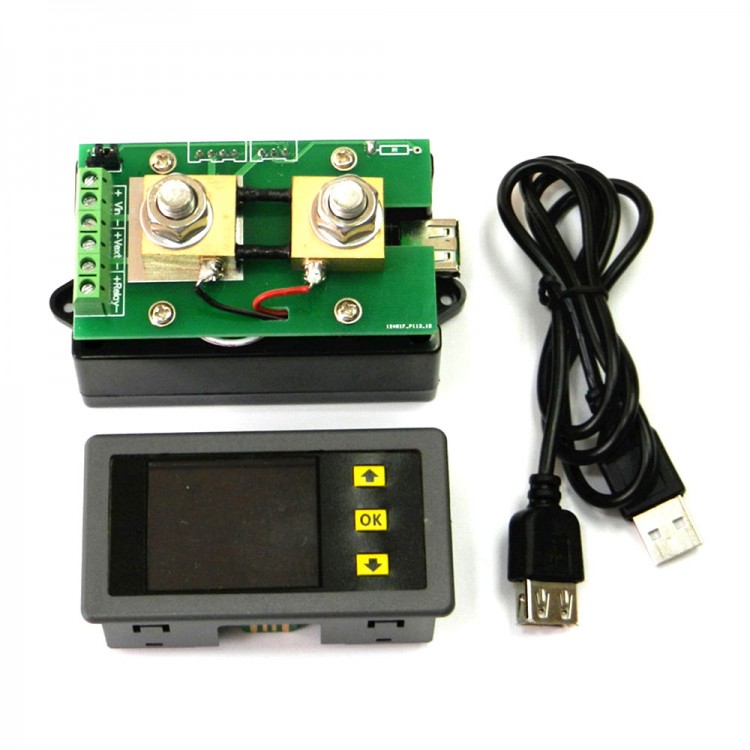

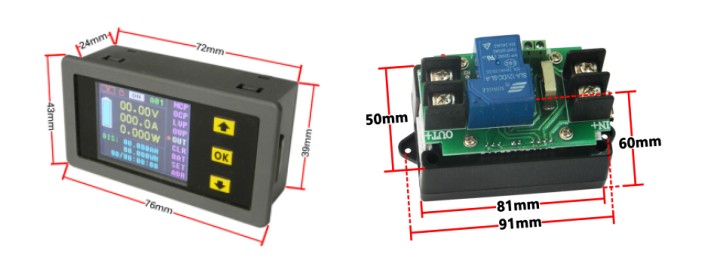

Package List:
- 1 x Display meter
- 1 x Measurement module
- 1 x USB cable
