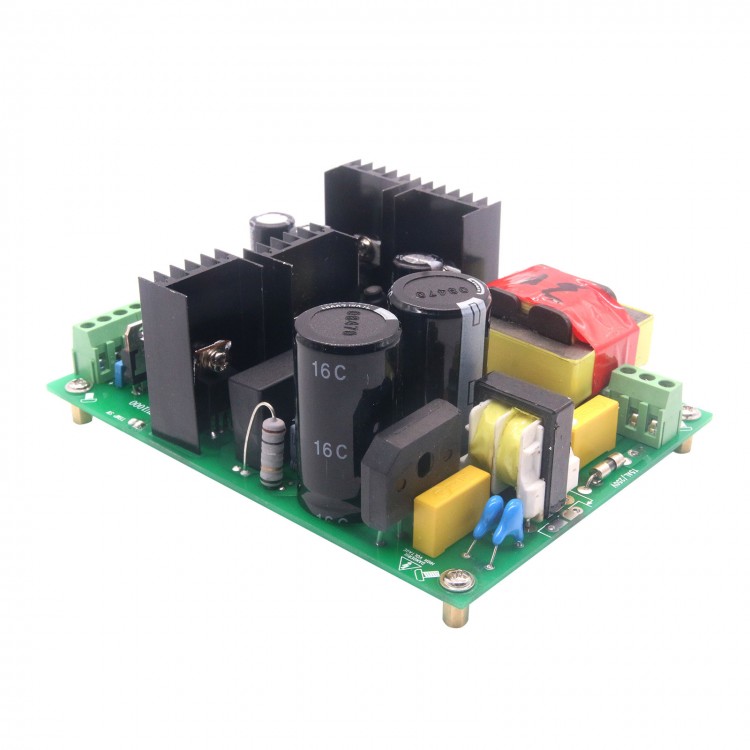

Digital Power Supply Board 500W AC100-120V 200-240V for Amplifier HBP500W
Specification:
- Model: HBP500W Power Supply Board for Amplifier
- Input voltage: AC 100-120V/200-240V
- Output voltage:
Fixed main power supply (500W) voltage:
+/-30VDC,
+/-35VDC,
+/-37VDC (suitable for TDA8950TH, TDA8954TH power amplifier board),
+/-40VDC,
+/-45VDC,
+/-50VDC,
+/-55VDC,
+/-60VDC,
+/-65VDC,
+/-70VDC.
- Auxiliary voltage: +/-15V, 1A (common ground with the main power supply),+12V, 0.5A (independent ground wire);
- Auxiliary power supply, 7815/7915/7812 voltage regulator
- Recommend 200-400W amplifier.
- Size: 100*133*50mm
- Transformer: 0.1mm*100 anaerobic enamel covered wire, efficiency 90%
- Electrolytic capacitors with high frequency and low impedance, low ripple.
Package List:
- 1 x Digital Power Supply Board
