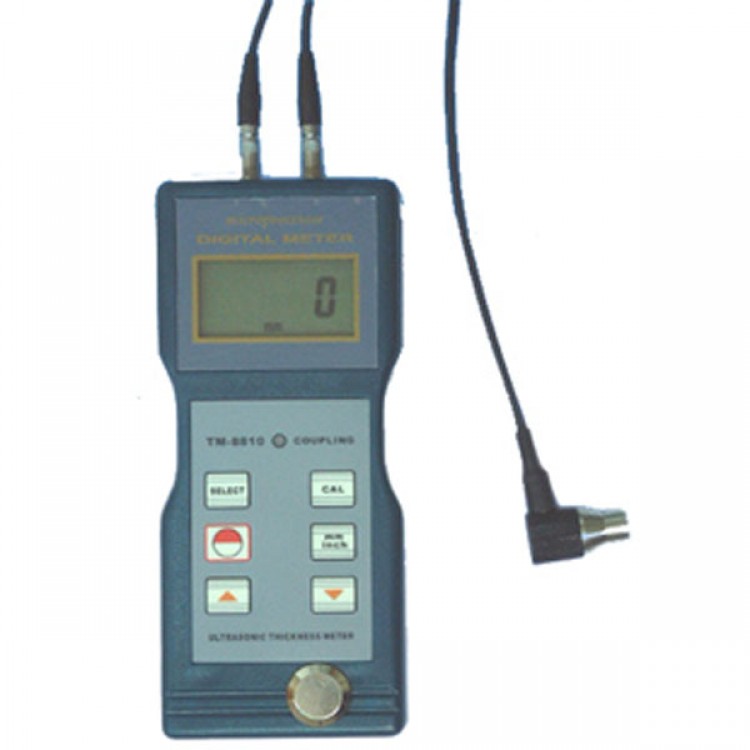

• Digital Testing Meter TM-8810 Microprocessor Ultrasonic Wall Thickness Gauge Meter Tester Steel PVC

Digital Testing Meter TM-8810 Microprocessor Ultrasonic Wall Thickness Gauge Meter Tester Steel PVC

Availability: In stock, usually dispatched in 1 business day

  • Price:$134.02
  • Price in reward points: 1340 Reward Points: 13
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $131.34 $128.66 $124.64 $119.28 Contact US
Quantity:

Digital Testing Meter TM-8810 Microprocessor Ultrasonic Wall Thickness Gauge Meter Tester Steel PVC


Introduction:

Used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.
in industries of petroleum,shipbuilding,power station,and machine manufacturing

Specifications:

- Measuring range (metric/imperial): 1.2-200mm,0.06-8inch
- Operating principle: ULTROSONIC
- Materials measured: only 11 types of materials, including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron
- Lower limit steel pipes: ф15x2.0mm, ф20x3.0mm determined by the transducer
- Calibration block: included
- Resolution: 0.1mm
- Accuracy: ±(0.5%n+0.1)
- Power supply: 4x1.5vaa(UM-3) battery
- Battery indicator: low battery indicator
- Operating conditions:0-+45℃(32℉-104℉),≤90%RH
- Dimensions: 160x68x32mm
- Weight: 208g(not including battery)
