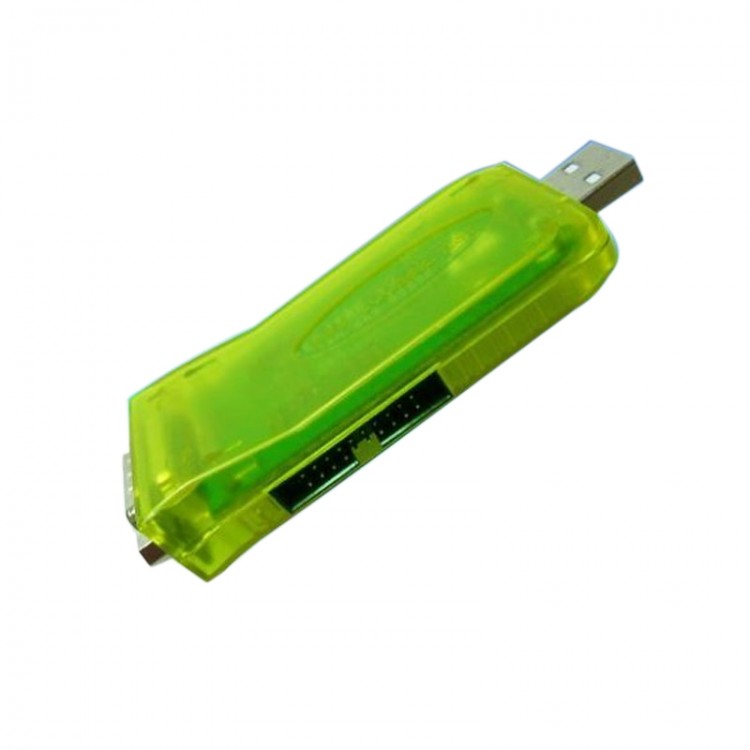

• DIY Downloader Debugger Simulators to USB JTAG OpenJTAG V3Serial Port with Video Tutorial

DIY Downloader Debugger Simulators to USB JTAG OpenJTAG V3Serial Port with Video Tutorial

Availability: In stock, usually dispatched in 1 business day

  • Price:$39.05
  • Price in reward points: 391 Reward Points: 4
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $38.27 $37.49 $36.32 $34.75 Contact US
Quantity:

DIY Downloader Debugger Simulators to USB JTAG OpenJTAG V3Serial Port with Video Tutorial

Description:
Support ARM, a full range of NOR Flash program

OpenJTAG CD "OpenJTAG_openocd_0. 6 _gflash CD. Iso" download address: click here

In order to crack down piracy, the newly added documents can be encrypted release, after the file name with "_P" are encrypted files.
Such as "using OpenJTAG debugging S5PC210_P. PDF is encrypted file.

Watch method:
1. The installation CD Windows \ \ install directory "06. Haihaisoft_PDF_Reader. Exe"
2. Use just install Haihaisoft PDF Reader to open the encrypted PDF files
3. Input when buying OpenJTAG provide user name and password

Note:
1. If it is OpenJTAG old users, pleaseopenjtag#.comSend E-mail for user name and password
2. Usually there is user name and password in the front of OpenJTAG CD
If there are none, see the disc user name and password, please also send an email to openjtag#.com,
3. Email attached purchase vouchers, such as taobao screenshots, bank transfer record, etc

Contains the following video:
1. Use the OpenJTAG video
2. Detailed s3c6410 10 bare plate experiment (a total of 29 source program, 22 video), note: 6410 video download address only 115. com/folder/fdomujma#, no CD.Please use 115 eggs software download.

Filmed a video video more clearly (CD) :

Video web site:v.youku.com/v_show/id_XMjI1MDQ3NzQw.html

Video content has the following four parts:
1. The installation program
2. Debug a simple program leds
3. The debugging u - the boot
4. Debugging ADS project

A variety of burning method:
1) gflash tools, support the s3c2410, s3c2440, s3c6410, s5pv210 direct burning
2) use openocd command line burning directly
3) downloaded from the JTAG mouth u - the boot into memory, the use of u - the boot to burning

A variety of debugging methods:
1) use openocd command directly debugging
2) using the GDB command line debugging
3) using the Eclipse graphical debugging

Supports a variety of debugging tools:
(1) support the IAR
(2) support the Eclipse
(3) can debug ADS compiled axf file

It is a collection of three functions (USB JTAG, turn the USB serial port, online debugging), which integrates the debugger.
Both desktop and notebook, the lack of a serial port, parallel port can be used.
Can be used to debug the ARM7, ARM9, architecture (M3, XSCALE wasn't entirely series CPU bare board procedures, u - the boot, the kernel.

Hardware features:
USB:
USB2.0 interface at full speed
Use a USB power supply
Plug and play
JTAG:
The IEEE 1149.1 standard
Maximum rate of 6 mbits/SEC
Is parallel port JTAG 150 times
Multi - ICE 10 - pin socket
Multi - ICE 20 - pin socket
The target system from 5 v to 1.5 v adaptive

Serial port:
- RS232 standard
- Support 7 or 8 bits data
- One or two stop bits
- Odd/even/mark/space/no check
- Maximum baud rate 1 MBPS

The online simulation function:
Support multiple CPU series: ARM7, ARM9, architecture (M3 / M8 / A8, XSCALE wasn't entirely

Software features:
- The Eclipse integrated development environment of the installer and tutorials (Linux/Windows version)Adjustable ADS, KEIL compiler axf file
- Source level debugger OpenOCD installer and tutorials (Linux/Windows version)
- Real-time debugging features: single step, run at full speed, reduction, soft/hardware breakpoint, jump, etc
- CPU registers, memory, variable observation window: dynamic, real-time view
- Support ARM built-in Cache and MMU functions
- Online burning a variety of NOR Flash and NAND Flash
- Driver: supports Linux 2.4 or higher, Windows ME, 2000, Server 2003, XP, win 7

Item list:
- OpenJTAG 1 boards
- USB extension cord* 1
- 2 mm spacing 10-pin JTAG cable* 1
- 2 mm spacing 20-pin JTAG cable *1
- 2.54 mm spacing 20-pin JTAG cable *1
- 2 mm spacing to 2.5 mm distance 20 pin adapter plate *1
