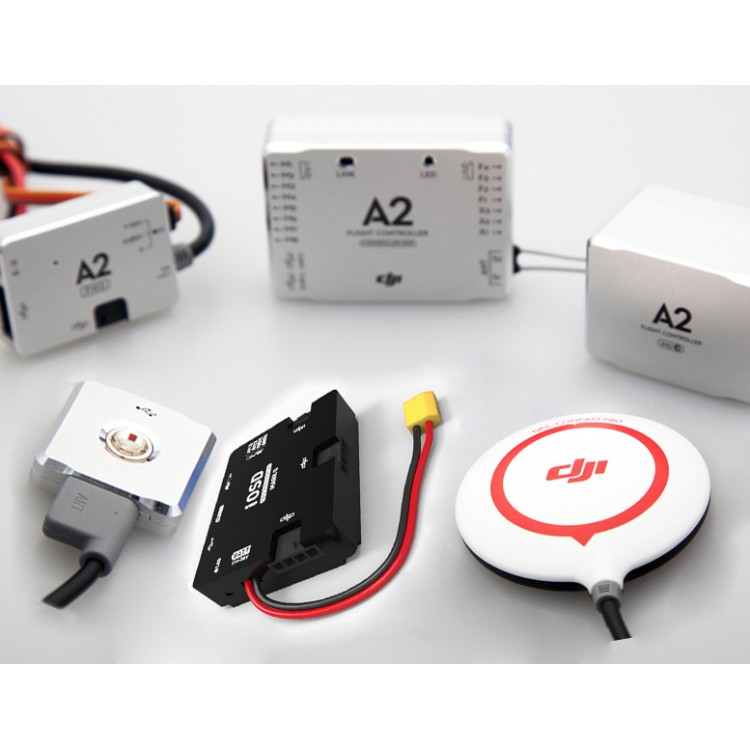

DJI A2 Flagship Multirotor Stabilization Controller Flight Control GPS + DJI IOSD-M2 iOSD Mark II Combo
DJI is pleased to announce a new flagship multirotor controllerm it's called the 'A2". superseding the Wookong family, the A2 sticks closely to the DJI's tradition of wowing customers with high specs, but it also innovates dramatically in a couple of key areas, which DJI hopes will give it an edge over the competition.
DJI A2 Multi-Rotor stabilization controller is a complete flight system for various multi-rotor platforms for commercial and industrial AP applications. Based on the technology and design philosophy of DJI's Ace series of high-performance controller, the A2 offers you a brand new flight experience. Its flight mode setup provides a seamless transition for current Ace One AP professionals. It utilizes high quality components precisely calibrated with temperature compensation in all gyros and sensors, industry renowned flight algorithm in autopilot and UAV field.
Specifications of DJI A2 Flight Control:
- Flight controller: 54x39x14.9mm
- IMU: 41.3x30.5x26.3mm
- GPS Pro:62mm(diameter)x14.3mm
- PMU: 39.5x27.6x9.8mm
- LED-BTU-I: 30x30x7.9mm
The iOSD is a multifunctional integrated on screen display module which also has a built-in BEC module that supports 3s-6s LiPo batteries (11-26 volts), when used with the Wookong M or Ace One professional autopilot systems, it delivers a total solution for aerial photography with key information clearly displayed around the outside of the screen.
The DJI Innovations iOSD only supports the Wookong M AutoPilot and Ace One systems at this time. The iOSD supports two video input sources, one of which can be selected by the R/C transmitter and switched remotely. It can also change the wireless the transmission channel using the wireless video transmission module by DJI. The iOSD can be upgrade in the future by firmware updates.
Specifications of DJI IOSD II:
- Size: 52 mm x 41 mm x 11 mm
- Weight: 56g
- Video Input/Output Mode: PAL/NTSC
- Electrical Characteristics Voltage:3S-6S
- Current(Typical Value):60mA/52.2V, 103mA/12.6V
- Rated Power:1.25W
- Operating Temperature: -20C to +60C
