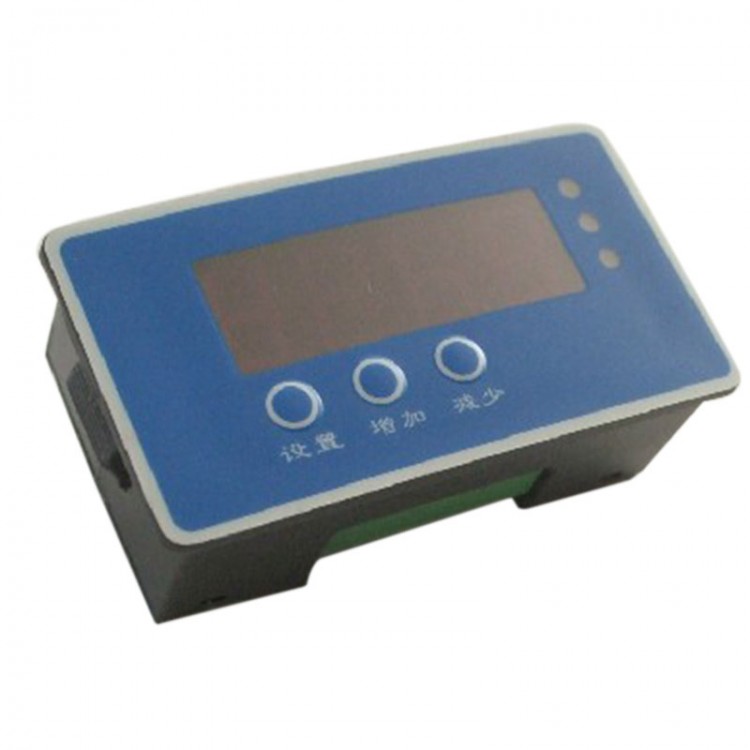

DKC-S100 Fixed-length Stepper Motor Controller/ fixed-length Controller/Display Stepper Motor Controller D2B3

Introduction:

DKC - S100 is my company independent development of a f type stepping motor controller. The controller USES import original high-speed smart chip as hardware platform, software adopt unique anti-interference technology makes the stability of the controller, reliability and strong anti-jamming are very good. So the controller is suitable for various conditions of the factory site. Can be applied to various location control, fixed-length control, such as all kinds of precise control requirements.
1 super wide voltage input: DC6-32 V
2 multiple protection function: a reverse connect protection, over-voltage protection, over-current protection
3 simple operation : don't need to learn complicated programming instructions, simply set can be precise positioning
4 deceleration: optimization of S type acceleration, 0 to 20, can be set up.
5 shows: four digital tube display the current operation state, the number of trigger, and pulse number
6 output frequency, the maximum output 35 KHZ pulse frequency.
7 input/output: input and output the isolation. At the end of the input signal level effectively.
Dimension: 80 x42x24 (mm) standard frame size
Hole size: 77 x40 (mm)

Instructions:
1)DKC-S100 Controller has 8 set items as follows:

Serial number       Functional description     Character       Parameter                                                Note

         1                    forward distance              1 - CN            1-9999        the actual amount of output pulse is equal to (1 - CN) * (5 - CF)

         2                    forward speed                  2 - CS            1-500         the speed value of forward direction

         3                    inverse distance               3 - FN            1-9999       the actual amount of output pulse is equal to (3 - FN)*(5 - CF)

         4                    inversion speed                4 - FS            1-500        Speed value of the reverse direction

         5                    segment set                      5 - CF            1-9999      setting of the equivalent of a unit,such as motor mobile 1 mm

                                                                                                                need to XX  pulse,then it's XX.

         6                    speed setting                    6 - AC            1-20          the longer the value, the greater the acceleration time

         7                    trigger count                     7 - JS                --            number of trigger, regardless of the trigger forward, reverse the

                                                                                                                 value is increased.

        8                    manual point move            8 - Sd                --            manual inching mode, press the "add" motor forward, let go to

                                                                                                                stop, "reducing" as the reverse

    (2)
In setting up state Press (increased) (reduce) switch 1 to 8 set items.
Press (set) key to enter a setting parameter Settings, press (increase (decrease) change parameter values. Set up, according to the exit parameters change state (set) key. Enter the set state. Then repeat the process until 6 item set is complete.
Item 7 to trigger the count is the meter is triggered, reversal trigger the number of times. The project can only view, and reset, and cannot be modified. In setting up state press (set) key check in counting the number 0-9999, at the same time press (increased) (reduce) reset the count value.
8 for the manual point move in setting up state press (set) key entry point to move, press (increase) for the forward, press (reduce) for reversal. According to a scale of 0-9999 to the actual amount of pulse. 4 and reversing speed 2, respectively, the speed of the set.

(3)
The forward distance, the inverse distance ", set the parameters of 0-9999. Distance of the unit can segment set, 5 item definition. For example, we define the distance units for motor rotation for a week. So we know from subdivided into 8 subdivision drive, 1600 pulse motor rotation for a week, so we set the segment set equal to 1600. The forward distance, so the inversion from 0-9999 corresponds to the actual distance is 0-9999 weeks, of course, the same way we also can be defined as MM, CM, etc. Units,
The forward speed, the inversion speed, set the parameters of 0-500, corresponding to the frequency of 5 to 35 KHZ
"Speed setting" and set the parameter to 0 to 10, according to the speed, acceleration value set, the demand to speed up a long time

Interface specifications:

  1                forward trigger                    trigger the port machine forward  1 - FN distance

  2                reversal trigger                   trigger the port machine reverse 3 - CN distance

  3                origin trigger                       origin  trigger input motor stop immediately

  4                +5V OPTG                          5 V output, and then drive control signal public port

  5                direction DIR -                    direction signal output port, and connection drive DIR-

  6                pulse PUL -                        pulse signal output port, and connection drive PUL -

  7                power V -                           negative power supply input

  8                power V +                          positive input power, voltage DC 6 - 32 V

Note: trigger signal is falling edge trigger, 0 - 5 V, highest no more than 24 V.
