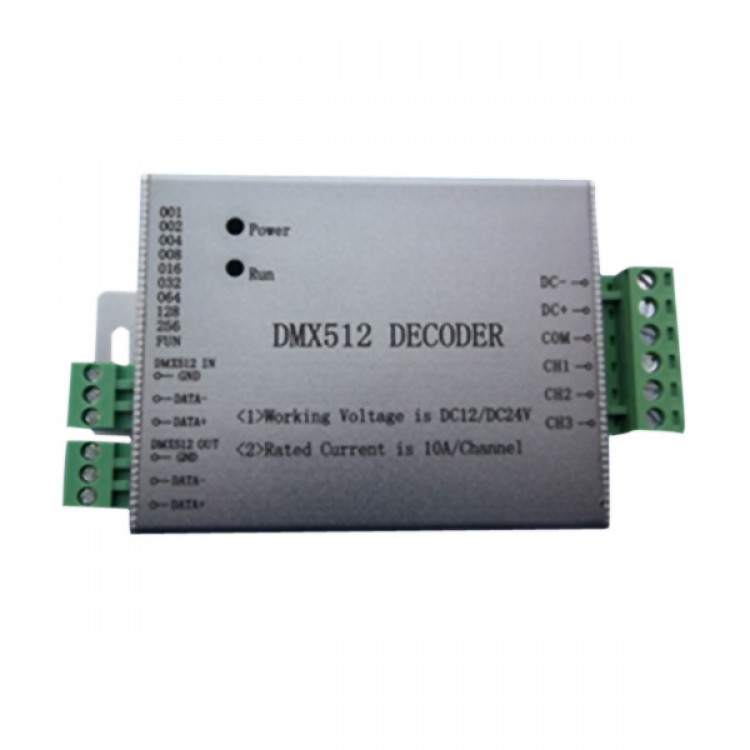

DMX512 Decoder CL-DMX512-3 LED Controller for RGB LED Strip
  • DMX512 Decoder CL-DMX512-3 LED Controller for RGB LED Strip

  • SKU:10040
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 2
  • Price:$20.73
  • Price in reward points: 207
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $20.32 $19.90 $19.28 $18.45 Contact US

DMX512 Decoder CL-DMX512-3 LED Controller for RGB LED Strip
Description:
- DMX common controller adopts the advanced micro control unit, it receives standard DMX-512 digital
- control signal and transformed it into PWM signal for driving LED;You could connect DMX module with DMX
- digital console to achieve dimming or various changes in procedures.

Technical Parameters:
- Working temperature: -20-60 ℃
- Supply voltage: 12V~24VDC
- Output: 3 channels
- External dimension: L110ΧW64ΧH25(mm)
- Packing size: L120ΧW75ΧH35(mm)
- Net weight: 150g
- Gross weight: 200g
- Static power consumption: <1W
- Output current: each channel 10A
- Output power: 12V:360W,  24V : 500W

Note:
- Supply voltage is DC12V,other high voltage cause unit to fail
- Never connect two wire directly in case of short circuit.
- Lead wire should be connected correctly according to colors that connecting diagram offers
- Warranty of this product is one year. During this period, we guarantee replacement or repair with no charge
- Tampering with unit or overload will not be coverd under warranty
