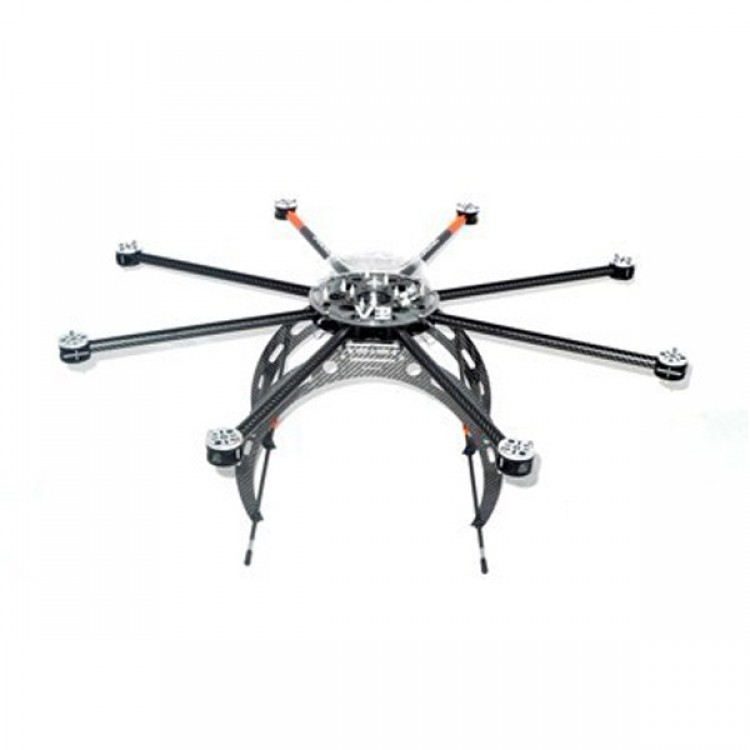

Droidworx AD8-HLE OctaCopter 8-Rotor Aircraft Frame Heavy Lift Extended V3 FPV Multi-rotor
This is a professional frame for MikroKopter.AD-8 Heavy Lift airframe comes complete for self-assembly and is ready for fitting MikroKopter UAV electronics directly - 8 motors (not included) in standard assembly (Okto).
As in all the Droidworx range, this airframe is made from high quality, lightweight, UV resistant, vibration absorbing composite components;- Carbon Fiber 3k twill tube chosen for it strength, light weight and natural vibration absorption properties – carbon fiber center section - machined engineering composite engine mounts - carbon fiber undercarriage assembly with vibration isolators and adjustable battery tray.The landing gear/gear rail assembly allows for fitting different camera mounts for various cameras and applications.
Particular details of this air frame:
As all of the AD Heavy Lift crafts, the AD-8 Heavy Lift Extended can be fitted with AXi 2814/22 series motors or the MK3638 series motors to fit 12” propellers.
The span width from engine center to engine center is 820 mm. The air frame weighs 950 g and is able to carry a maximum payload of 2 kg.
The standard landing gear on this frame is replaced with the extended landing gear, increasing the standard clearance of 16 cm from gear rail to ground level to 36 cm to allow fitting the Droidworx/PhotoHigher Pro Camera Gimbal AV200.
- Version 3
- Weight: 950 grams (approx 1170gr with accessories)
- Diameter: 870 mm
- Distance from engine to engine: 820 mm
- Maximum payload: 2 Kg
- Propellers to use: 12''
