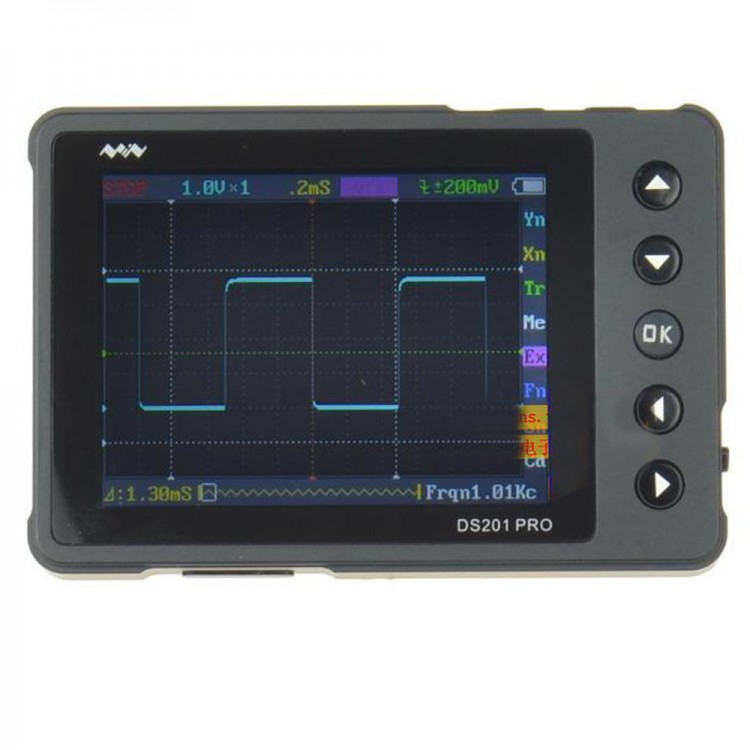

DS201 Pro 32bit 2.8" TFT LCD 8M Flash USB Digital Storage Mini Pocket Oscilloscope with 320x240 Display Recharging
Specifications:
- Display: 2.8'' Color TFT LCD
- Resolution: 320×240
- Display color: 65K
- Analog bandwidth: 0-200kHz
- Max.sampling rate: 1Msps 12bits
- Sampling store depth: 4096 point
- Horizontal sensitivity: 1uS/Div~10S/Div(1-2-5 step)
- Vertical sensitivity: 10mv/Div~10V/Div(x1 probe)/0.5V/Div~10V/Div(x10 probe)
- Input impedance: >500KΩ
- Max.input voltage: 80Vpp(x1 probe)
- Coupling: DC
- Trigger: Auto, Normal, Single, None, Scan
- Auto measurement:
frequency, cycle, duty, Vpp, Vram, Vavg, DC voltage
vertical precision measure vernier
horizontal precision measure vernier
up/down edge trigger
trigger vernier
trigger sensitivity vernier
keep/run
- Test signal built-in: (1-2-5 step)
- Wave memory: 8M memory
- PC interface connection: USB
- Charging method: USB
- Size: 88mm×59mm×11mm
Package included:
- 1 x DS0201 Digital Oscilloscope Device
- 1 x MCX Probe
- 1 x Data Cable
- 1 x Protective bag
