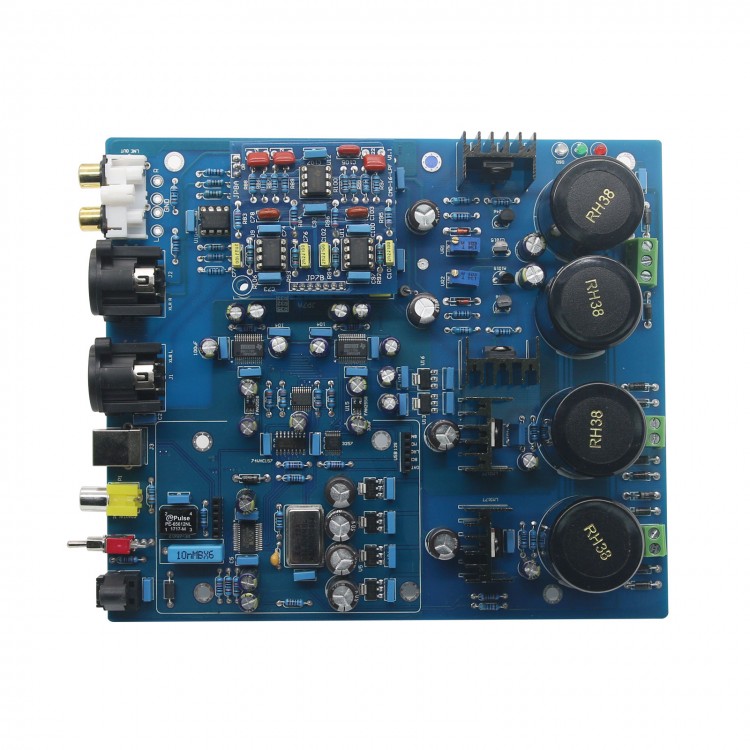

DSD1796 NE5532 Double Chip DAC Decoder Board Coaxial Optical Fiber USB Input for Audio DIY
Specification:
- Adopt DSD1796 NE5532
- Main filter capacitor 4×10000UF,full wave bridge rectifier circuit
- Five ring metal resistance, main circuit adopts accuracy -+1% metal film resistance
- 1.6mm PCB, copper thickness is 2.0Oz
- Full balance 7 pieces double AMP design, with XLR output, RCA single-ended output
- Double sheet DSD1796, each sheet for one channel
- Analog power supply using CD-7 voltage stabilizing circuit
- Coaxial input support sampling rate: 44.1K-192K PCM (does not support 176.4K)
- Optical fiber input support sample rate: 44.1K-192K PCM (does not support 176.4K)
- USB input support sampling rate: 44.1K-384K DSD64-DSD256, PCM (DSD256 using Native mode output, oppo drive)
- No XMOS U8 sub card
Power parameter:
- Two groups 9V AC (each group is over 10W)
- 2.1 groups of AC double 12V or double 15V (over 15W)
- The power supply needs to be connected at the same time
- PCB size: 186*160MM
Package List:
- 1 x Decoder Board
