DSLogic Pro Extension Module Open Source Extensible Electronic Instrument 400MHz 256Mbit

Tags: DSLogic Pro

Availability: Out Of Stock

  • Price:$116.81
  • Price in reward points: 1168 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $114.47 $112.14 $108.63 $103.96 Contact US
Quantity:

DSLogic Pro Extension Module Open Source Extensible Electronic Instrument 400MHz 256Mbit

Description:

DSLogic Pro is an upgrade product from DSLogic project.

DSLogic is an Open-Source, Low-cost & Extensible electronic instrument for makers and electronic enthusiasts, which consists of DSLogic-Core and extension modules. DSLogic-Core is a re-configurable circuit board based on FPGA technology with maximum 400MHz sampling rate and 256Mbit on-board memory. DSLogic-Core can work alone as a fully functional logic analyzer, along with various extension modules. DSLogic can also work as oscilloscope, data acquisition system, protocol analyzer and even RF analyzer.

Features:
- Open source
- Unibody aluminum shielded case
- Upgradable hardware
- Continuous Adjustable threshold
- Up to 1G samples at stream mode
- Support more than 40 protocol analyzers
- Advanced triggering option support
- External trigger support
- State sample support
- USB interface, USB powered
- Extensible & Reconfigurable
- Shielded wire bundle included

Specifications:
- Input channels number: 16
- Max Sampling rate: 400M @ 4 channels / 200M @ 8 channels / 100Mbps @ 16 channels
- Max Sampling depth: 1G/channel @ stream mode / 16M/channel @ buffer mode
- Hardware memory size: 256Mbits
- Threshold voltage: 0 ~ 5V (continuous adjustable, 0.1v step)
- Min pulse width can be collected: 5ns
- Input bandwidth: 50MHz
- Max state clock input: 50MHz
- Trigger position support
- Advanced trigger stages: 16 stages
- Advanced trigger count: 16 bits
- Advanced trigger set: 2 sets per stage
- Input voltage range: -30 ~ + 30V
- Input impedance: 250Kohm // ~7pF
- State sample support
- External trigger input support
- External trigger output support
- Support OS: windows, Linux, OS X
- Dimensions: 79 x 74 x 9mm

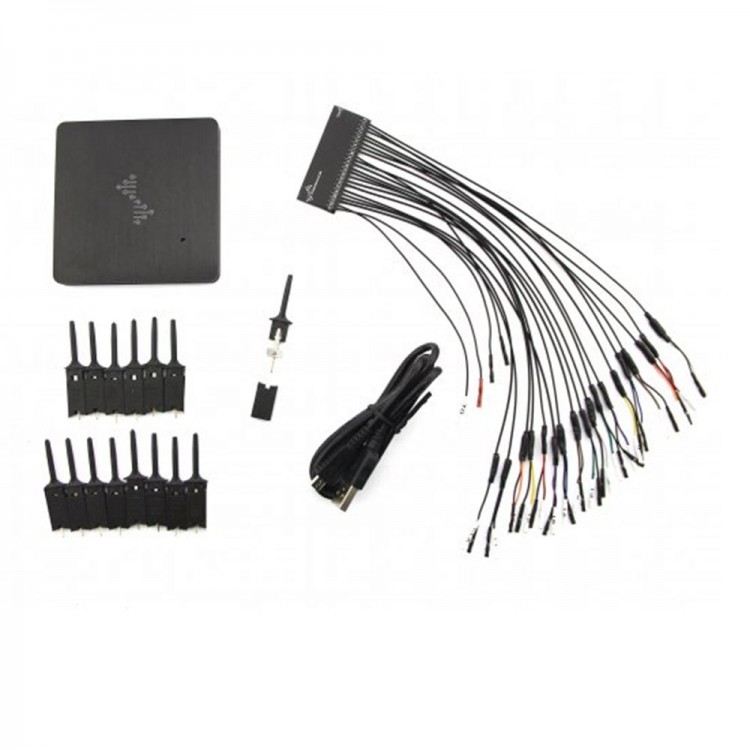

Package List:
- DSLogic Pro: x 1
- Shielded wire bundles: x 1
- Clips for logic analyzer: x 16
- USB cable: x 1
