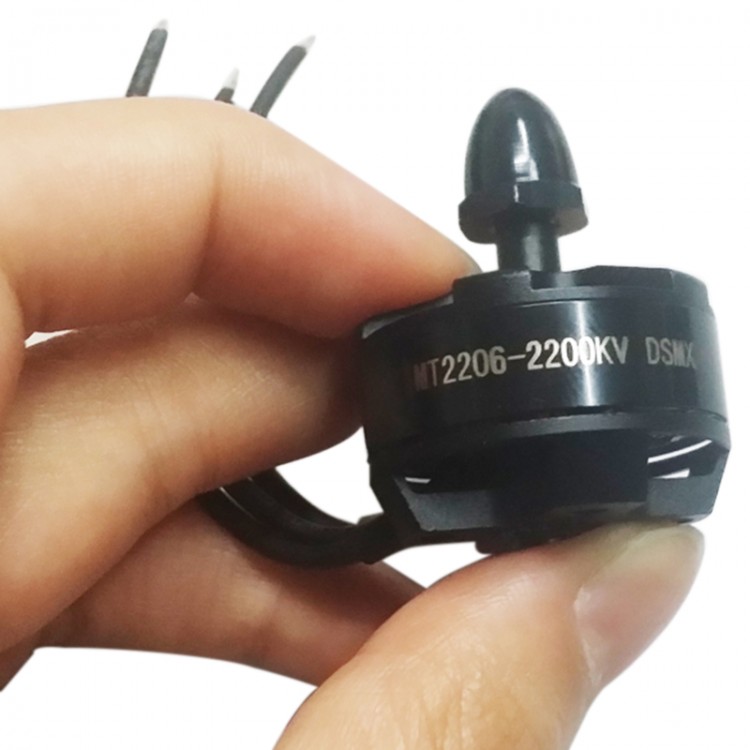

DSMX MT 2206 2300KV Brshless Motor CW CCW Kit for QAV250 Quadcopter Multicopter
Specification:
- ML2206S 2300KV Motor
- Motor KV:2300KV RPM/V
- Motor Resistance (RM) :0.0868 Ω
- Idle Current (Io/10V): 0.7A/10V
- Max Continuous Current : 16A
- Max Continuous Power: 170W
- Lipo Cell: 2-3S
- No. of Stator Arms: 12
- Pole Count :14
- Motor Diameter: 28mm/1.1in
- Motor Body Length: 18.5mm/0.73in
- Overall Shaft Length: 23mm/0.91in
- Shaft Diameter: 3mm/0.12in
- Bolt holes spacing :16mm/19mm/0.63in/0.75in
- Bolt thread: M3×5
- Maximum thrust:750g
Note:
- One motor is with black head, corotation and lock. And the other is with silver head, reversal and positive lock.
- The kit is with bullet head, fixed screw,heat shrink tube and the gold plated banana plug.
Package included:
- A pair of motor
