DSO Shell Oscilloscope OSC 15001K 2.4 Inch Color TFT LCD DSO138 Upgraded Version

Description:

SMD parts pre-soldered already.

DSO Shell has similar bandwitch as DSO138 though it contains significant improvements in structure, mechanical, and operation.

DSO Shell comes with full enclosure. The front panel and top/bottom brackets are flexiable for easy user modification.

Rotary encoder has been added. It makes parameter adjustment much quicker and easier.

The sensitivity of DSO Shell has been extended in both directions and is higher and wider than DSO138. It reaches 5mV/div --- 20V/div while DSO138 is only 10mV/div --- 5V/div.

DSO Shell runs on 9V (do not use power voltage higher than 10V!) power supply. Users need to prepare their own power supply since it is not included in the kits. The power jack on the mainboard accepts standare 5.5mm/2.1mm DC plug. Alternative 2-pin connector (0.1" pitch) is also provided for convenience to connect to different power sources.

Important Notes
It is assumed that users have adaquate soldering skills and troubleshooting skills to assemble the DSO Shell kits. Buyers are advised that due to skills of user is involved in assembly it is not guaranteed every kit will end up being a working device. But we will make as much efforts as we can to approach that goal.

After receiving the kits users are urged to check mainboard and LCD by applying proper power supply. Report immediately to your seller or JYE Tech if problem or damage is found.

Specification:
Vertical

- Number of Channel: 1
- Analog Bandwidth: 0 - 200KHz
- Sensitivity: 5mV/Div - 20V/Div
- Sensitivity error: < 5%
- Resolution: 12-bit
- Input Impedance: 1M ohm
- Maximum Input voltage: 50Vpk
- Coupling: DC, AC, GND

Horizontal:
- Max Real-time Sampling Rate: 1Msps
- Timebase: 10us/Div - 500s/Div
- Record Length: 1024

Trigger:
- Trigger Modes: Auto, Normal, Single
- Trigger Types: Rising/falling edge
- Trigger Position: 1/2 of buffer size fixed

Display:2.4-inch color TFT LCD with 320 x 240 resolution

Power Supply:
- 9V DC (8 - 10V acceptable)
- Supply Current: 120mA @ 9V

Physical
- Dimension: 110mm X 75mm X 25mm
- Weight: 0.18KG (GW)

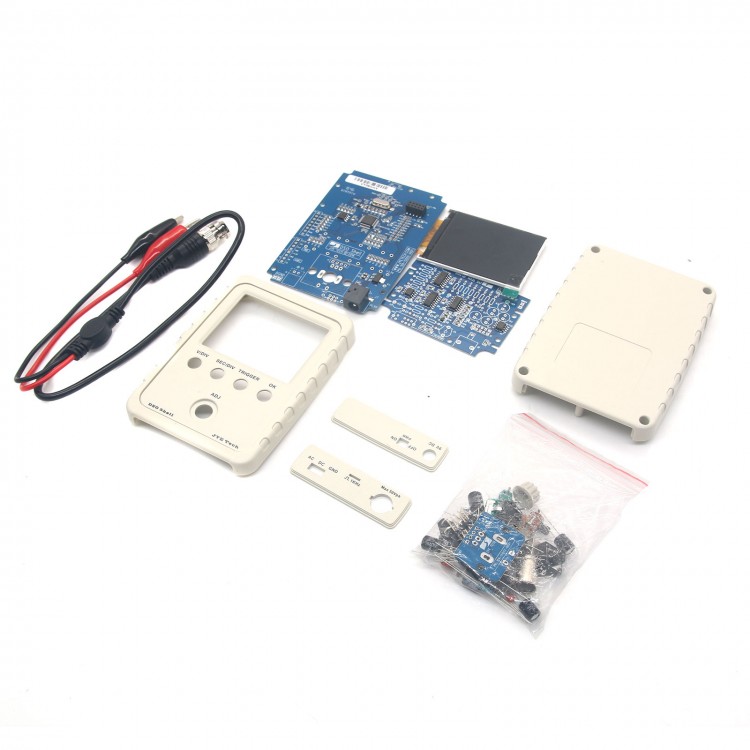

Package list:
- 1 x DSO Shell kit with SMD parts pre-soldered
- 1 x BNC-clip cable
- 1 x Users Manual (English)
