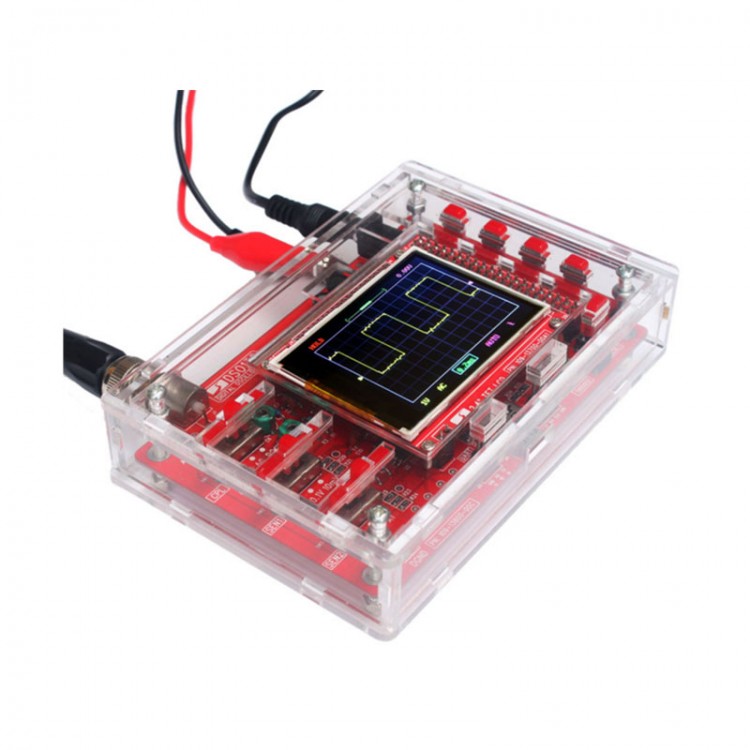

DSO138 2.4" TFT Digital Oscilloscope Handheld OSC Open Source STM32 with Shell Welded

Availability: In stock, usually dispatched in 1 business day

  • Price:$28.15
  • Price in reward points: 282 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $27.59 $27.02 $26.18 $25.05 Contact US
Quantity:

DSO138 2.4" TFT Digital Oscilloscope Handheld OSC Open Source STM32 with Shell Welded


Description:

This DSO138 digital oscilloscope adopts ARM Cortex-M3 processor and with 2.4-inch TFT screen. It's easy and reliable for circuit operation. It can display frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values. This boost converter is an excellent match for DSO138 oscilloscope kit. It can be connected directly to the DSO138 motherboard(not included), make DSO138 oscilloscope to be a portable oscilloscope for better using.

Specifications:
- Already welded,finished module
- Maximum Real-time Sampling Rate: 1Msps
- Accuracy: 12Bit
- Sampling Buffer Depth: 1024 bytes
- Analog Bandwidth: 0-200KHz
- Vertical Sensitivity: 10mV / Div - 5V / Div (1-2-5 progressive manner)
- Input Impedance: 1MΩ
- Maximum Input Voltage: 50Vpp (1: 1 probe), 400Vpp (10: 1 probe)
- Coupling Modes: DC / AC / GND
- The Horizontal Time Base Range: 10μs / Div - 50s / Div (1-2-5 progressive manner)
- Supply Voltage: DC 9V
- PCB Size: 117 * 76mm / 4.6 * 3in
- Screen Size: 52 * 40mm / 2 * 1.57in

Package List:
- 1 * DSO138 DIY Digital Oscilloscope with Shell
