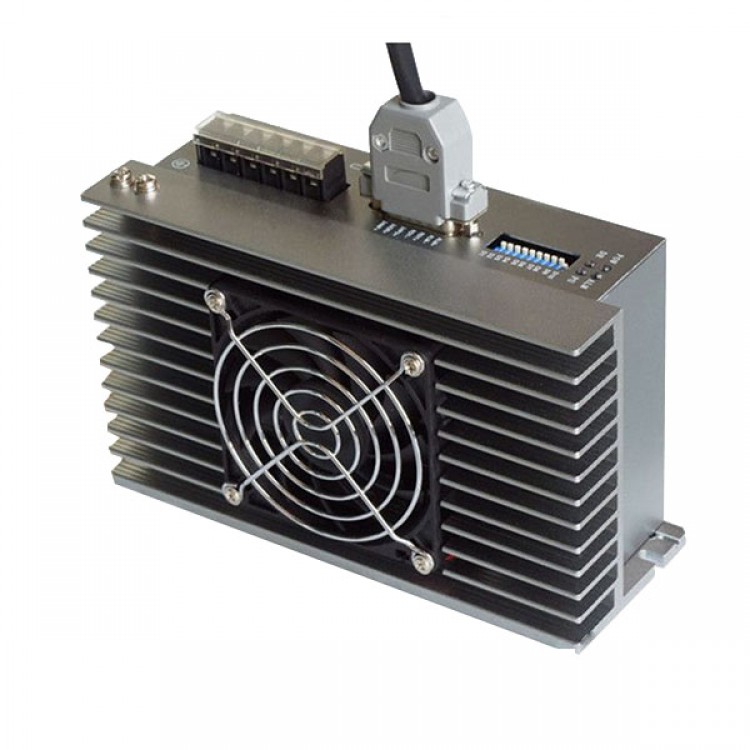

DSP 110 Three Phases Stepper Motor Driver PAS3-10522 AC220-80V 5A High Speed Good Performance w/ DSP High Speed Chip

DSP 110 Three Phases Stepper Motor Driver PAS3-10522 AC220-80V 5A High Speed Good Performance w/ DSP High Speed Chip

Description:
- This product is a high performance driver of the newest technology based on DSP high speed chip. The special current vector controlling techinolly enables the motor operate smoothly , good speed accelerating capacity, large torque supass traditional driver, better adaptability to sudden changes or frequent reversed pulse, less jammed or out of steps, can adjust to high grade occasion. the highest frequency is 2M

Specificaion:
- Voltage: AC220V-80V
- Current: 2.2-5A  adjustable
- Subdivision number of steps: 400, 500, 600, 800, 1000, 1200, 2000, 3000, 4000, 5000,6000，10000, 12000, 20000, 30000, 60000(Special subdivision:1250，1500，1600，2400，2500，3200，4800，6400，7500，8000，12800，15000，24000，25600，40000，51200)
- High speed performance, smooth operating, small noise and vibration, semi - automatic flow.
- Self operation,  smooth pulse, motor inertia, pulse filter (anti-interference) and other special functions (the user choose open or closed).
- With three phases110-20N stepper motor test, maximum no-load could run up to 2000 rpm, 1000 RPM can drive CNC stable work.
- Can reach as high as 80V high voltage power supply, which can provide good high speed performance
- Recommend 36V transformer and rectifier filter plate as power supply (36V alternating current rectifier, DC voltage can reach DC50V), each motor is calculated according to 150W power supply.
- Dimension: 178 x 108 x 65
- 4 mounting holes on two sides
- Hole diameter 3mm
- Hole center distance: short  23mm, long  113mm
- Weight: 1KG
- Differential signal input port, high speed optocoupler isolation.
- Side 2 fixed groove, groove width 4mm
- With heat radiating fan
