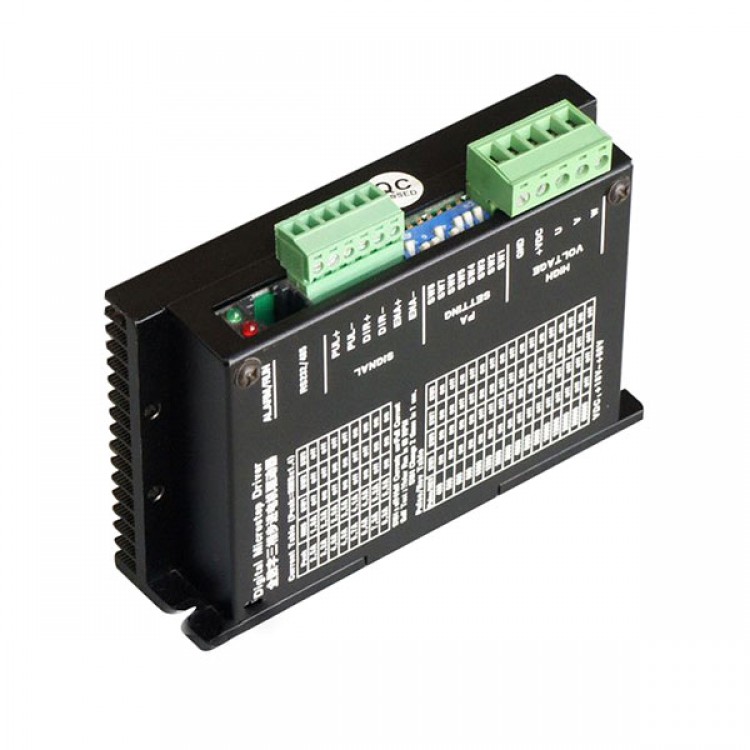

DSP 57 3 Phase Stepper Motor Driver PAS3-57606 DC18-60V 6A High Speed Type
Description:
- This dreiver is the newest product based on DSP high speed chip high performance driver, special current vector control technology makes motor operate very smooth, high speed performance, torque force is larger than traditional technology, has better impulse adapting ability, will not got stucked, suitable for high grade situation
- Voltage: current 18-60V,
- Current: 1.8-6 adjustable
- Microscope step is 400, 500, 600, 800, 1000, 1200, 2000, 3000, 4000, 5000,6000，10000, 12000, 20000, 30000, 60000, (other special expansion microscope: 1250，1500，1600，2400，2500，3200，4800，6400，7500，8000，12800，15000，24000，25600，40000，51200, if you need these microstep, ask the customer service)
- Cooperate with 3 phase 57-2N stepper motor to test, unload speed can reach 3000r/min
- Dimension: 118*76*33
- Differential signal terminal input, high speed coupled isolation, max frequency is 2M, weight 0.4kg, the driver side has two fixed slots, side width: 4mm
