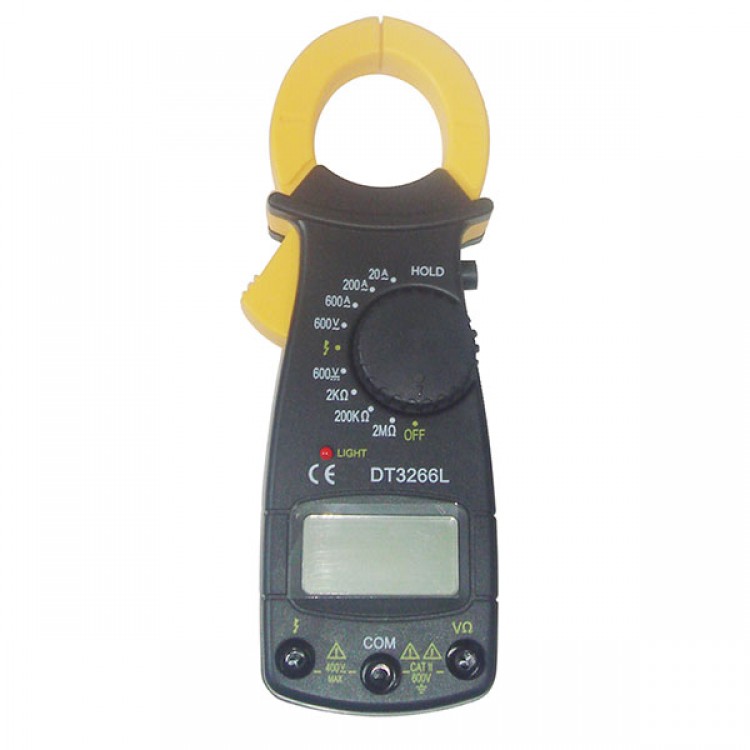

DT3266L Multimeter Digital Clamp Meter Electronic LCD AMP Tester Clip-on Table Meter

DT3266L Multimeter Digital Clamp Meter Electronic LCD AMP Tester Clip-on Table Meter


Features:

• 100% Brand New.

• Weight: 161g

• Dimension : 17.5 x 6.5 x 2.5 cm

• Made by famous T&M OEM manufacture

• Fashionable Design, Top Quality and Portable

• Full Overload Protection

• High Accurate & Superior Reliable Digital Multi-meter on the market, designed for use by electricians, technicians, serviceman and hobbyists, etc.

• Detect live wire function

• 3½ digits LCD with a Max. reading of 1999

• Manual Ranging

• Automatic Polarity Display

• Automatic Over-range Indication

• Automatic Low Battery Indication

• Data Hold Function for easy reading

• Sampling 2 Readings per Second

• Low Power Consumption, only 2x 1.5V AAA battery need!

• The item has been tested in good working condition before auction

Specifications:

• Power Supply: 2 of 1.5V Size AAA battery (NOT Included)

• Low Battery Indication: Yes

• Data Hold: Yes

• Sampling Speed: 2 times per second

• Over-load Indication:"1" is displayed

• Max Display: 1999 auto polarity display

• Measure Method: Double integral A/D switch implement

• Operating Environment: 0°C~40°C, under <80% R.H.

• Storage Environment: -10°C~50°C, under <80% R.H.

• Static Electricity: approx. 4mA

• Input Impedance: 10MΩ

• DC Voltage 600V +/-1. 0%

• Clamp Dimension: 25mm for open jaw, 35mm for inner diameter

• Popular Version. No DC amps measurement. Batteries might be removed by custom clearing.

  AC Current:

  Range	Resolution	Accuracy
  AC 20A	10mA	±(2.5%+10d)
  AC 200A	100mA
  AC 600A	1A

  DC&AC Voltage:

  Range	Resolution	Accuracy
  DC 600V	1V	±(1.0%+3d)
