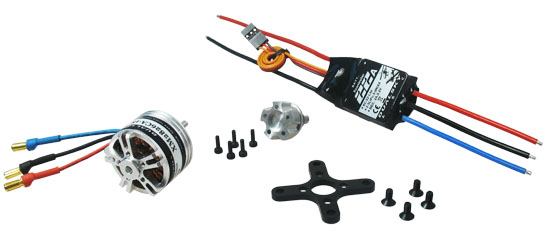

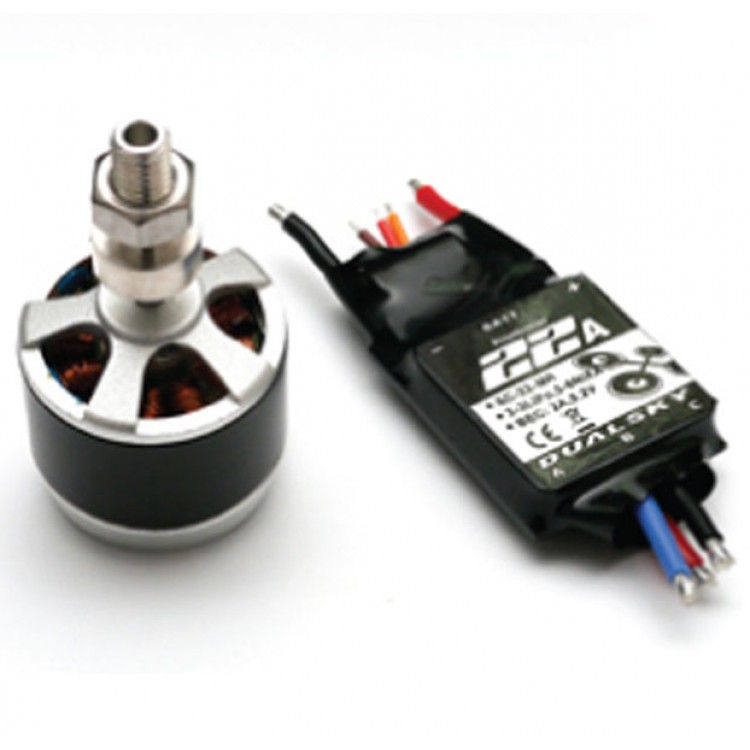

DUALSKY XM2830CA-Hornet 830RPM/V Motor + XC-22-Lite Thro Optimized for Hornet 460
  • DUALSKY XM2830CA-Hornet 830RPM/V Motor + XC-22-Lite Thro Optimized for Hornet 460
  • DUALSKY XM2830CA-Hornet 830RPM/V Motor + XC-22-Lite Thro Optimized for Hornet 460
  • DUALSKY XM2830CA-Hornet 830RPM/V Motor + XC-22-Lite Thro Optimized for Hornet 460
  • DUALSKY XM2830CA-Hornet 830RPM/V Motor + XC-22-Lite Thro Optimized for Hornet 460
  • DUALSKY XM2830CA-Hornet 830RPM/V Motor + XC-22-Lite Thro Optimized for Hornet 460
  • DUALSKY XM2830CA-Hornet 830RPM/V Motor + XC-22-Lite Thro Optimized for Hornet 460
  • DUALSKY XM2830CA-Hornet 830RPM/V Motor + XC-22-Lite Thro Optimized for Hornet 460

  • SKU:18372
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 6
  • Price:$55.68
  • Price in reward points: 557
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $54.57 $53.45 $51.78 $49.56 Contact US

DUALSKY XM2830CA-Hornet 830RPM/V Motor + XC-22-Lite Thro Optimized for Hornet 460

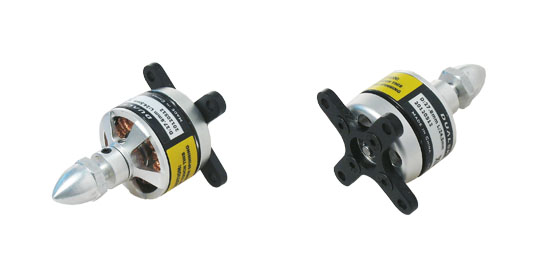

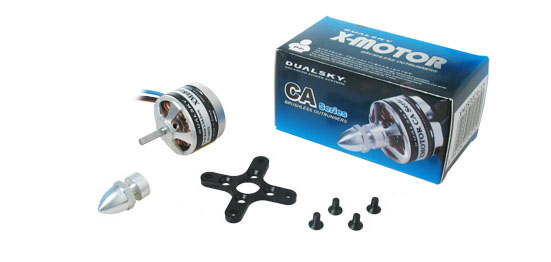

XM2830CA Description:
- Xmotor CA series brushless outrunners
- Optimized for Hornet 460

XM2830CA Specification:
- RPM/V (KV):  830
- Stator Diameter:  22
- Magnet length:  12
- Shaft diameter:  3.2
- Mounting holes pitch:  16/19
- Weight (g):  55
- Resistance (Ri)(mOhm):  145
- Idle Current (Io) @10V (A):  0.57
- No.of Cells (LiPo):  2..4
- Max. Efficiency Current[A]:  12
- Max. Burst Current (15s)[A]:  15
- Max. Power (15s):  200W
- Input Connectors:  DB3
- Recommended ESC:  XC1812BA
- Prop. Range:  9x4.7…10x5




XC-22-Lite Thro Feature:

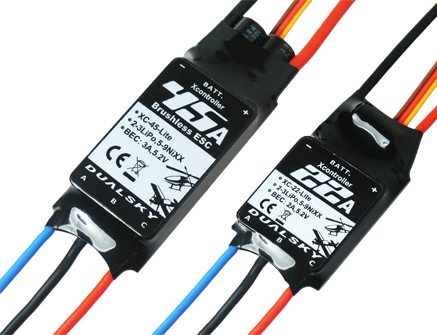

XC-22-Lite Thro Description:
- XC-22-Lite,ESC 22A,for airplane and Heli.

XC-22-Lite Thro  Specification:
- Dimensions: 47x 26x 7mm(L x W x D)
- Weight: 22g(with wires)
- Number of Cell: NiXX 5-9, 6-10.8V / LiPo 2-3, 7.4-11.1V
- Resistance(Ri)(Ohm): 0.0082
- Max Cont.  Current & Max Cont.Output: 22A, 244W
- Max Burst Current & Max Burst Output: 30A, 333W
- BEC / Dissipative Power: 5.2V/2A (Linear)
- Programmable: Throttle + ProgCARD V2
- Signal Wire: 180MM JR

XC-22-Lite Thro  Applications:
- 450 Class Sports
- 350g 3D, 600g Sports
