DUALSKY XM4005TE-13 840KV Outrunner Brushless Disk Type Motor for Multi-rotor

Availability: Out Of Stock

  • Price:$49.02
  • Price in reward points: 490 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $48.04 $47.06 $45.59 $43.63 Contact US
Quantity:

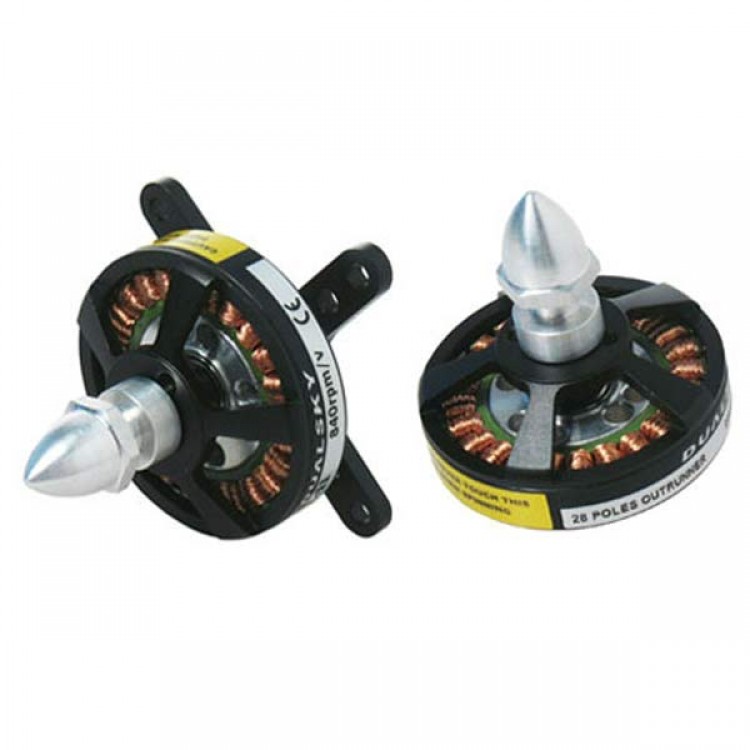

DUALSKY XM4005TE-13 840KV Outrunner Brushless Disk Type Motor for Multi-rotor
Specfications:
- Model: XM4005TE-13
- KV: 840RPM/V
- Weight: 53g
- Diameter: 40mm
- Length: 20mm
- Diameter of Shaft: 3.175mm
- Mounting holes pitch: 16/19mm
- Slots,Poles: 24, 28
- Idle Current(Io) @10V: 0.6A
- Resistance(Ri): 123mOhm
- Cruising power[8 mins]: 102.86W
- Bursts current[15s]: 16.85A
- Peak power[15s]: 187.03W
- Recommended ESC: XC1812BA
- Setup 1 (No. of Cell, Prop.): 3S, 12x5
- Setup 2 (No. of Cell, Prop.): 4S, 8x5
- Max. weight of 4-rotor copter: 1.13kg
- Max. weight of 3D models: 0.38kg
- Memo: 1KG 4-rotor copters, 400 class airplanes

Application: specially designed for quadcopter and multi-rotor aircrafts
