DualSky XM5015HD-7 340KV Heavy-Duty Four-Rotor Brushless Disc Motor V2.0 for FPV Multicopter UAV

Availability: In stock, usually dispatched in 1 business day

  • Price:$89.88
  • Price in reward points: 899 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $88.08 $86.28 $83.59 $79.99 Contact US
Quantity:

DualSky XM5015HD-7 340KV Heavy-Duty Four-Rotor Brushless Disc Motor V2.0 for FPV Multicopter UAV

Features:

- With propeller adapters
- Centrifugal fan
- Dynamic balanced rotor
- Heavy duty design
- Water & dust proof IP34

Specification:
- Model: XM5015HD-7
- RPM/V (KV): 340 High Voltage
- Weight w/o wires(g) :165

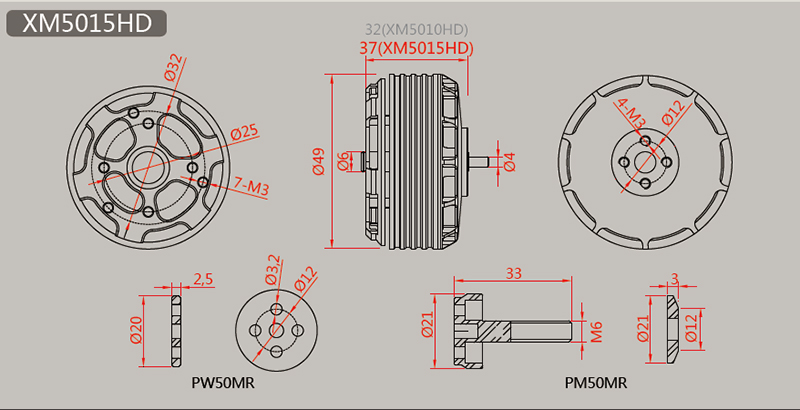

- Diameter(mm): 50
- Length(mm): 36.5
- Diameter of Shaft(mm):  IN: 6.0, Out:4.0
- Propeller mounting holes [Pitch, Size] (mm):  12mm, 4-M4;
- Motor mounting holes [Pitch, Size] (mm):(A) 25mm, 4-M4 (B)32mm, 4-M4
- Slots,Poles: 24, 28
- Idle Current(Io) @10V(A): 0.8
- Resistance(Ri)(mOhm): 100
- Nominal Voltage(V): 22.2V, 6S Lipo
- Cruising power(W)[30 mins]: 350
- Bursts current(A)[30s]: 29
- Peak power(W)[30s]: 640
- Input Wire: 18AWG, 600mm
- Recommended ESC: XC-401-MR
- Propeller:  MRP 17"

Package included:
- 1* DualSky XM5015HD-7 340KV brushless disc motor
