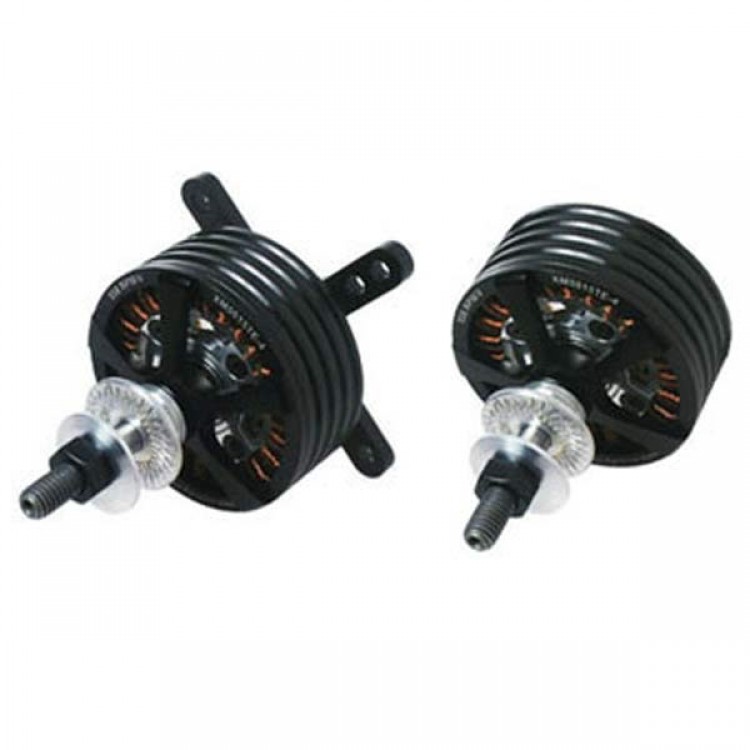

DUALSKY XM5015TE-3 760KV Outrunner Brushless Disk Type Motor for Multi-rotor
Specfication:
- Model: XM5015TE-3
- KV: 760RPM/V
- Weight: 160g
- Diameter: 50mm
- Length: 37mm
- Diameter of Shaft: 6.0mm
- Mounting holes pitch: 19/25mm
- Slots,Poles: 24,28
- Idle Current(Io) @10V: 2.9A
- Resistance(Ri): 19.6mOhm
- Cruising power[8 mins]: 381W
- Bursts current[15s]: 62A
- Peak power[15s]: 693W
- Recommended ESC: XC6018BA
- Setup 1 (No. of Cell, Prop.): 3S, up to 16x5
- Setup 2 (No. of Cell, Prop.): 4S, 13x7
- Max. weight of 4-rotor copter: 3.8kg
- Max. weight of 3D models: 1.3kg
- Memo: 4KG 4-rotor copters, 30E 3D airplanes
