• DualSky XM9015HD-10 120KV Heavy-Duty Four-Rotor Brushless Disc Motor V2.0 for FPV Multicopter UAV

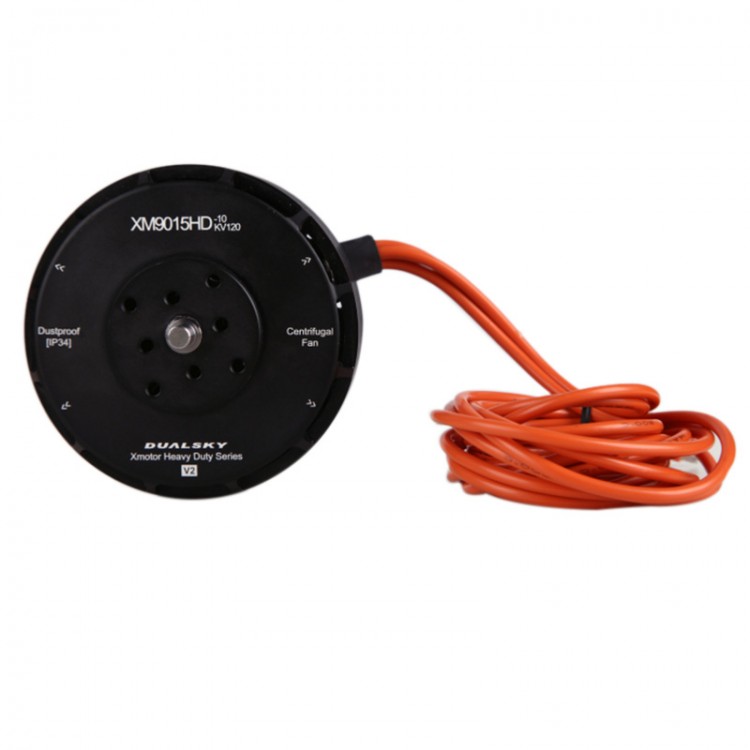

DualSky XM9015HD-10 120KV Heavy-Duty Four-Rotor Brushless Disc Motor V2.0 for FPV Multicopter UAV

Availability: In stock, usually dispatched in 1 business day

  • Price:$193.42
  • Price in reward points: 1934 Reward Points: 19
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $189.55 $185.68 $179.88 $172.14 Contact US
Quantity:

DualSky XM9015HD-10 120KV Heavy-Duty Four-Rotor Brushless Disc Motor V2.0 for FPV Multicopter UAV

Features:

- With propeller adapters
- Centrifugal fan
- Dynamic balanced rotor
- Heavy duty design
- Water & dust proof IP34

Specification:
- Model: XM9015HD-10
- RPM/V (KV): 120 High Voltage
- Weight w/o wires(g) :665
- Diameter(mm): 89
- Length(mm): 51.5
- Diameter of Shaft(mm):  IN: 610.0, Out:6.0
- Propeller mounting holes [Pitch, Size] (mm):  (A)20mm, 4-M4;(B)32mm, 4-M4

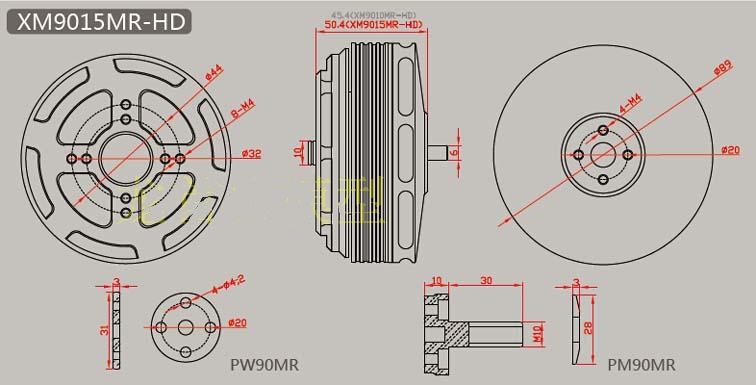

- Motor mounting holes [Pitch, Size] (mm):(A) 32mm, 4-M4 (B)44mm, 4-M4
- Slots,Poles: 24, 28
- Idle Current(Io) @10V(A): 0.9
- Resistance(Ri)(mOhm): 58
- Nominal Voltage(V): 30-51V, 10-12S Lipo
- Cruising power(W)[30 mins]: 1770
- Bursts current(A)[30s]: 72
- Peak power(W)[30s]: 3200
- Input Wire: 14AWG, 1000mm
- Recommended ESC: PCU 80HV
- Propeller:  MRP 24-26"

Package included:

- 1* DualSky XM9015HD-10 120KV  brushless disc motor
