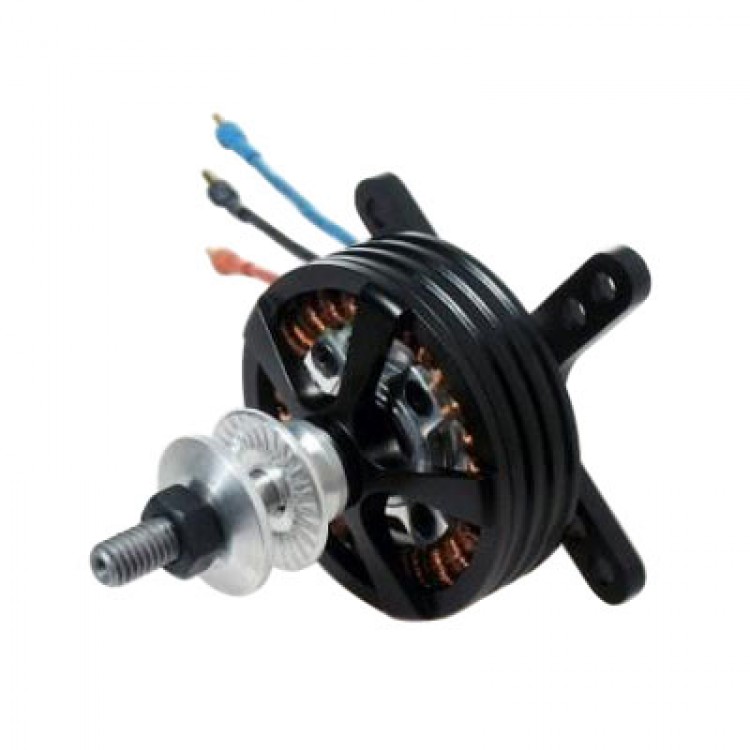

DUALSKYXM5010TE-6 Low Profile High Torque Brushless Outrunner Motor 590RPM/V for Multi Rotor Multicopter Dynamic Balancing

-28 poles
-High torque
-High efficiency
-Specifically designed for Multi Rotor
-It also can be used for Remote control aircrafts

Specification:
KV:  590RPM/V
Weight:  126g
Diameter:  50mm
Length:  31.6mm
Diameter of Shaft:  6mm
Mounting holes pitch:  19/25mm
Slots,Poles:  24, 28
Idle Current(Io) @10V:  1.3A
Resistance(Ri):  45mOhm
Cruising power[8 mins]:  310.79W
Bursts current[15s]:  38.18A
Peak power[15s]:  565.07W
Recommended ESC:  XC4018BA
Setup 1 (No. of Cell, Prop.):  4S, 15x5
Setup 2 (No. of Cell, Prop.):  5S, 13x5
Max. weight of 4-rotor copter:  3.11kg
Max. weight of 3D models:  1.04kg
Memo:  3KG 4-rotor copters, 15 - 25E airplanes
