Duoyi DY2015 Electric Vehicle Battery System Tester Capacity Tester 12V 60A Charging Meter

Availability: In stock, usually dispatched in 1 business day

  • Price:$46.52
  • Price in reward points: 465 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $45.59 $44.66 $43.26 $41.40 Contact US
Quantity:

Duoyi DY2015 Electric Vehicle Battery System Tester Capacity Tester 12V 60A Charging Meter

Features:Detection of battery state of health + battery charge status + battery open circuit voltage + Found starting capability, using the world\'s most advanced conductance testing technology, the testing process no heat, no discharge, no spark, no operating dangerous, anyone can operate. It can be directly detected in the car without removing the battery, rapid and accurate display of the battery test results.

Intelligent Test Function:
- Battery Test: Cold start current, battery internal resistance, voltage, life analysis.
- Start the test: during system startup battery changes.
- Charging System Test: the charging system work output.
- Load test: battery load status

Operating procedures:
- The tester red and black clamps to the tested battery, the red positive black negative, the tester display will show the boot screen, press OK to continue down (Note: test the battery voltage is lower than 6.0V or less can not be normal test).
- The tester prompts, select:

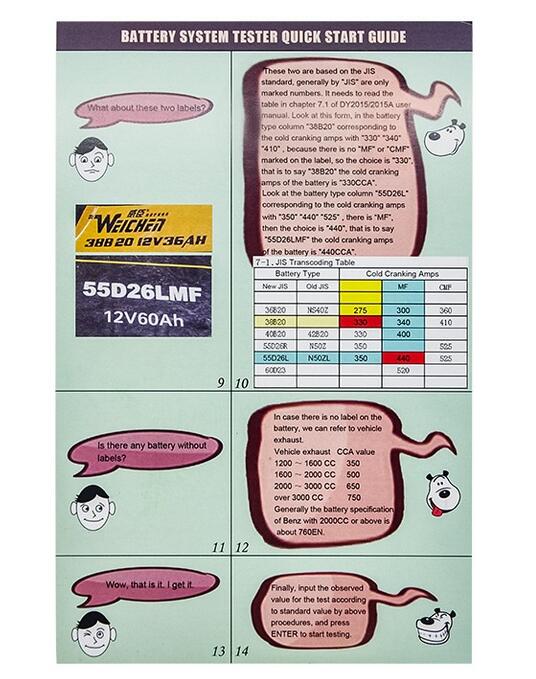

Enter the selection criteria: refers to the battery factory labeling standard, just above or in front of the battery can be seen, the standard can be selected on the battery label, such as CCA, BCI, DIN and so on.
- Rated Capacity choice: refers to the battery factory starting current standard, just above or in front of the battery can be seen, such as 300A.
Press the OK button to begin the test.
On the internal resistance, for the same cell, the smaller the resistance, the better health status (except for short), can be used as the inner resistance of the battery performance of a certain status criteria reference.
Hint:
- For the deep loss of electricity batteries (such as vehicles for a long time on hold, the battery is not charged in time; lights, forget to close the door so that the battery can not start serious loss of electric vehicles, etc.), the actual testing process, it may prompt "Replace Battery", for Such batteries, please consult the user battery manufacturers, charging method provided by the manufacturer to charge reduction, and then tested.

Specification:
- Use: general 12V lead-acid batteries
- Load test current ≤60A
- Detection Battery capacity range: 5-80Ah
- Voltage accuracy: ± 1% + 2d
- The maximum voltage value: DCV19.9V
- Battery capacity mode: 5/10/20/30/40/50/60/70 / 80Ah
- Self-diagnostic function: displays the error "Err"
- Relative Ambient temperature: 0-55C
- Relative humidity: ≤80%
- Production of leather Size: 155 * 80 * 45
- Product Weight: about 450g

Package List:
- 1 x DY2015 Electric Vehicle Battery System Tester with wire

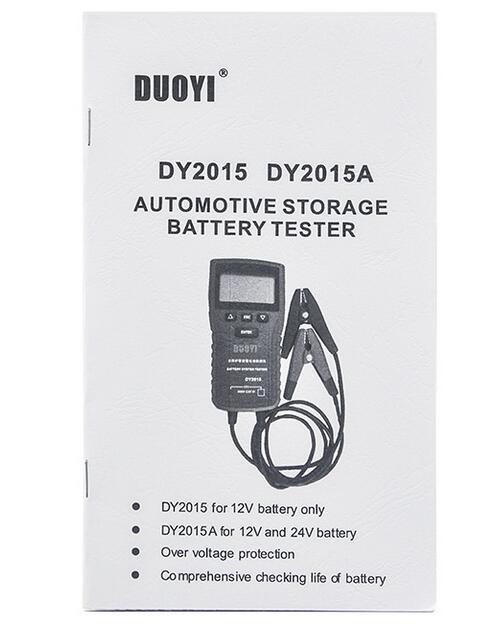

- 1 x Instruction
- 1 x Paper box
- 1 x Test fixture
