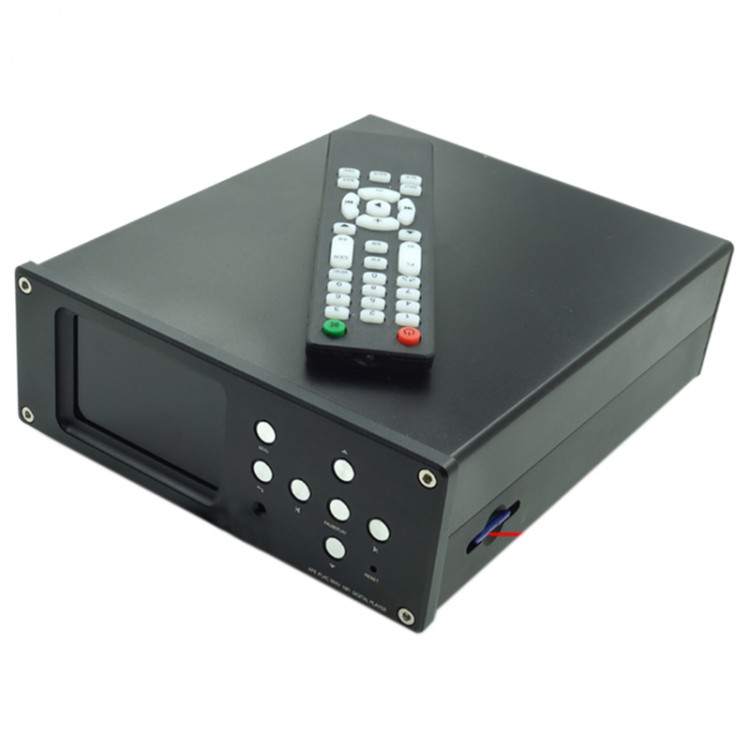

DV20A Lossless Music Player APE WAV MP3 Decoder DAC w/Coaxial Digit&AK4495 Output for DIY Audio

DV20A Lossless Music Player APE WAV MP3 Decoder DAC w/Coaxial Digit&AK4495 Output for DIY Audio

Description:
- DV20A, aluminum alloy, with digit dials player. Support format APE/ FLAC/WAV/ MP3. Hard decoder.
- The core process chip supports 192K 24bit master tape format.
- WAV: 192K  24BIT
- APE: 96K  24BIT
- FLAC : 192K 24BIT
- MP3: 44-48K 16BIT

Specification:
- Size: 194*70*230mm
- Support SD card and U-disk (not included) input, full function remote control
- With AK4495 decoding output
- Rear panel with coaxial digit output
- RCA audio output
- 3.5 port headphone output
- No need for external decoder

Features:
- Adopt ESS new maincontrol, hard decoder
- AK top level decoder chip AK4495
- 3.5inch IPS full view TFT LCD
- Amplifier adopts JRC MUS8820 or MUS8920
- Top grade capacitor, WIMA,ELNA
- Output RCA terminal and coaxial output terminal, CMC-816 interface

Note:
- Support lossless playing, so the data traffic is much more. There is also requirement for SD card and U-disk to stop the player from jam.
- When playing MP3, the volume should be 18, 2/3 position.(max. 25). When volume 1-22, distortion less than 0.01%
- When volume is more than 25, distortion will be more than the norminal value
- When playing APE, WAV,FLAC music, volume 16-20 is great.
- Volume control is for DAC audio output, it is unadjustable fot coaxial signal .

Update the firmware:
Put firmware into the SD menue , boot, the display will be bright to dark in 30 seconds , or show the words DONE, then the upgrade is done. Do not shut down when being dark, or have to rewrite the program. When update is over, get out of the SD card, wash out of the firmware in the computer , or will read and write to upgrade file for each boot. Do not shut doen when it is dark or befor showing DONE.

Package included:
- 1 x Music Player
- 1 x Power cable
- 1 x Remote controller without battery
