|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$31.05||$30.41||$29.46||$28.20||Contact US|

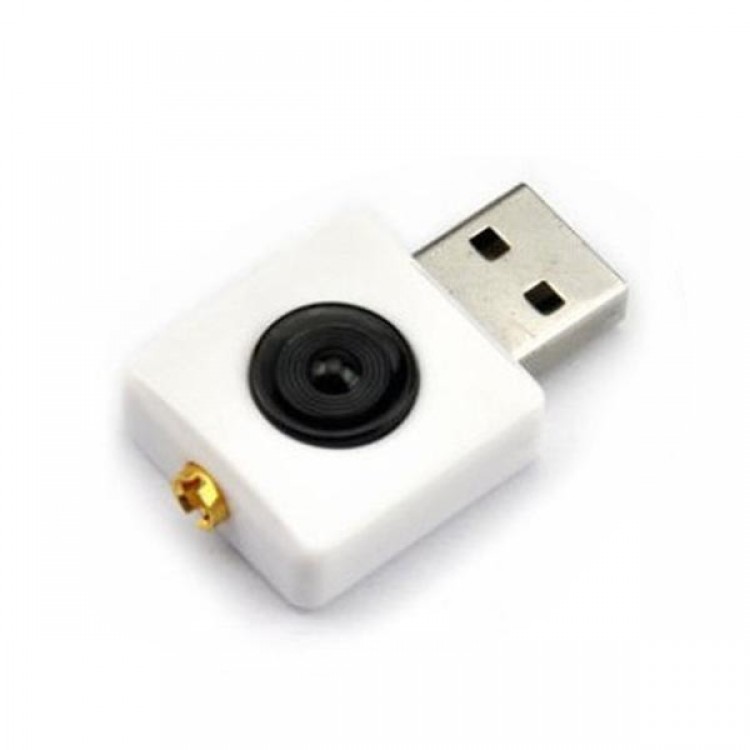

DVB-T SDR RTL2032U + E4000 50MHz - 2200MHz Tuner Realtek RTL2832U / E4000
- C CHIP : Realtek RTL2832U / E4000
- software defined radio / SDR GNU GPS GSM FM Radio
- The RTL2832U outputs 8-bit I/Q-samples, and the highest theoretically possible sample-rate is 3.2 MS/s, however, the highest sample-rate without lost samples that has been tested so far is 2.8 MS/s. The frequency range is highly dependent of the used tuner, sticks that use the - Elonics E4000 offer the best range (50MHz - 2200 MHz).
- 1.With the product, you can record live TV or schedule recordings using the built-scheduler. The time-shift function also allows you to pause and instantly replay your favorite scenes.
- 2,You can listen to FM audio and digital DAB radio, and record them to WMA audio format into your computer.
- 3,It support windows 7 media center. With the device, you can watch live TV, and record it by windows 7 media center.
- The item Uses a converting software-“Blaze video magic 3.0 “, it can convert your video file as AVI-MPEG4 ,ASF-MPEG4,MP4-MPEG4 (for iPod), PSP-MPEG4,3GP-MPEG4,AVI-DIVX,AVI-XVID,MOV-MPEG4 file, and convert your FM / DAB audio file as MP3 file.
- 4,It also supports LINUX OS, the driver “for Linux” can be sent to your email address as your request.
- Interface:USB 2.0 Standard
- Recording format:DVBT TV-DVD(MPEG-2),FM radio/DAB radio-WMA
- Converting format:
- Video:AVI-MPEG4,ASF-MPEG4,MP4-MPEG4(for ipod),PSP-MPEG4,3GP-MPEG4,AVI-DIVX,AVI-XVID,MOV-MPEG4
- Input:75 Ohm IEC(Din) Connector
- output:A type usrb male connect
- Receiving frequency:DVBT: 48.25 ~863.25 MHZ
- FM radio:87.5~108 MHZ
- DAB radio:L-Band-1452960~1490624 KHZ
- VHF—174928~ 239200 KHZ
- TV system:Full DVB-T and DAB compliant
- Punctured codes:1/2,2/3,3/4,,4/5,5/6 and 7/8
- bandwidth:6/7/8 MHZ auto select for DVB-T
- Power supply:Usb bus
- Consumed power:≤1.5W
- TV Player software:Newsoft presto! PVR
- Dimension / weight:90(L) X 28(W)X 15(H) / 21G
- Cable length:120cm for portable antenna
- System requirements:One available usb 2.0 port
- Pentium4 cpu or above
- 512MB RAM or above
- Graphics card supports DirictX 9.0C
- 1GB free HDD space
- CD-ROM for installation
- Windows XP/2000, VISTA,Win7,Linux
- USB DVB-T stick with FM&DAB device,portable antenna,remote controller,quick installation guide,software CD(includes driver,application and manual)
- 1 x USB DVB-T Stick
- 1 x Extra powerful antenna
