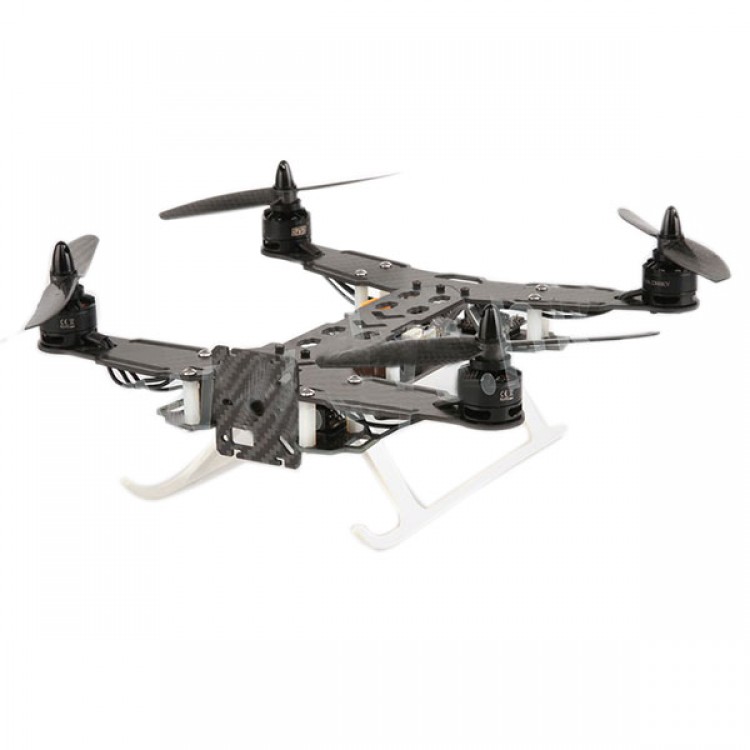

DYS BG-250 Quadcopter Frame Kit with BE1806 Motor 20A ESC CC3D Flight Control

Introduction:

OpenPilot is a next-generation Open Source UAV autopilot. It is a highly capable platform for multi-rotor craft, helicopters, as well as fixed wing aircraft. It has been designed from the ground up by a community of passionate developers from around the globe, with its core design principals being quality, safety, and ease of use.?  Simplicity does not come with any compromises either: with no hard-coded settings, a complete flight plan scripting language and other powerful features, OpenPilot is an extremely capable UAV autopilot platform

Package included:

- Motor: DYS BE1806 2300kv *1

- ESC: DYS mini 20A with BLHeli firmware *1

- Flight Controller: CC3D *1

- BG-250 frame *1



BG-250 Frame:

- Size: 225mm*204mm*65mmH

- Frame Weight: 130g

- Total Weight: 291g

DYS BE1806 2300KV motor:

- KV:2300

- Stator Diameter:23mm

- Stator Length:18.5mm

- Shaft Diameter:2.0mm

- Motor Dimensions(Dia.*Len):Φ23×18.5mm

- Weight (g):18g

- No.of Cells(Lipo):2-3S

- Max Continuous current(A):7.6A

- Max Continuous Power(W):84.4W

20A ESC

- Signal frequency：20-500Hz

- Outout PWM frequency：18KHz

- Application：SimonK firmware

CC3D Flight Controller
