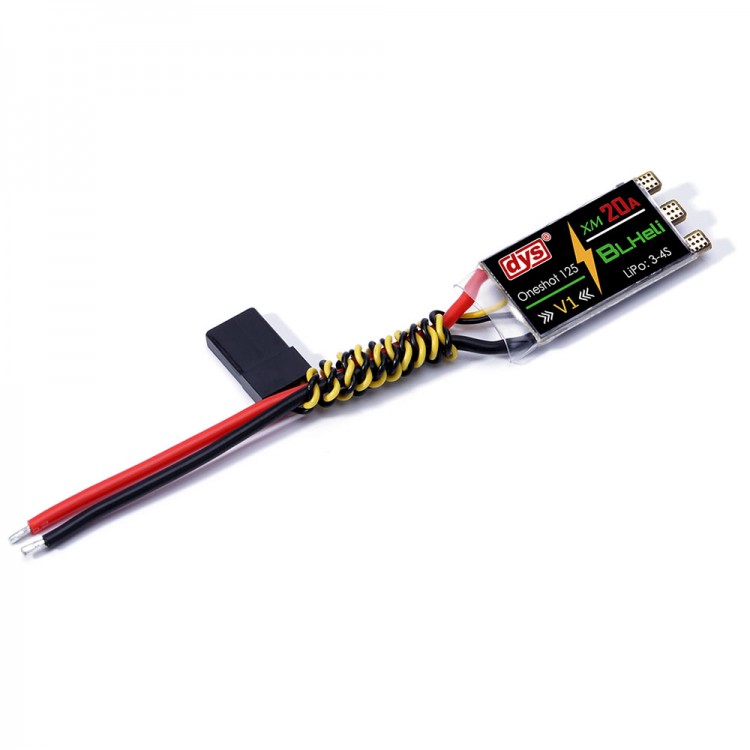

ESC Electronic Speed Controller 3-4s Lipo for Quadcopter Multicopter DYS XM20A V1

Availability: In stock, usually dispatched in 1 business day

  • Price:$14.52
  • Price in reward points: 145 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $14.23 $13.94 $13.50 $12.92 Contact US
Quantity:

ESC Electronic Speed Controller 3-4s Lipo for Quadcopter Multicopter DYS XM20A V1


Description:

The new DYS XM20A V1 ESC is specially designed for high KV power racing motors. The small size and integrated solder pads make for a cleaner and easier installation and are matched perfectly with the new DYS MR2204/ 2205-2300KV brushless racing motors.

Specification:
- Item Name: XM20A solder version ESC
- Input voltage: 3-4s Lipo
- BEC: NO
- Size(mm)L*W*H: 24*14*4.5mm
- Type: BLHeli Bootloader & Firmware
- Weight: 5.0g
- Feature: Silabs F396, Oneshot125/Oneshot42/Multishot enabled
- Input voltage: 3-4s Lipo
- BEC: NO
- Size(mm): 24L*14W*4.5H
- Type: BLHeli Bootloader & Firmware
- Weight: 5.0g

Features
- XM series ESC is the upgraded version of the SN series with advanced processor, a basic frequency up to 50MHz, and faster overall processing capacity to better support high KV motors
- Designed for quick multi-rotor throttle response
- Twisted pair cable is used to deliver throttle signal, reducing signal crosstalk while further stabilizing copper wire transmission
- New miniaturization and ultra-low resistance MOSFET, powerful flow resistance, and professional MOS Drive chips improve efficiency
- Newly designed PCB board improves impact resistance.
- Sub-miniaturization design reduces weight while still providing a high performance filtering capacitor
- Refresh rate of throttle signal up to 500Hz, compatible with all modern flight controllers, including the Naze32 Rev6 and SP Racing F3
- Ultra-high speed Oneshot125 with 3000Hz refresh rate provides quick, smooth throttle response
- Fully programmable via USB port, with two-way and 3D modes for high speed racing and acrobatics.

Package List:
- 1 x DYS XM20A V1 ESC
