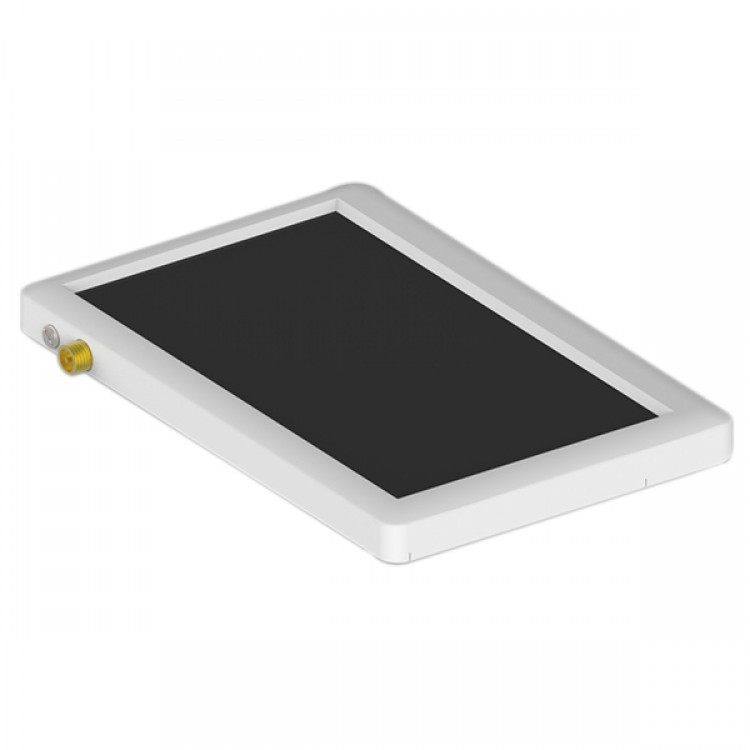

Eagle Eye Little Pilot AIO 5 Inch FPV Monitor HD Version Display for Multicopter FPV Photography

Availability: In stock, usually dispatched in 1 business day

  • Price:$112.19
  • Price in reward points: 1122 Reward Points: 11
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $109.95 $107.70 $104.34 $99.85 Contact US
Quantity:

Eagle Eye Little Pilot AIO 5 Inch FPV Monitor HD Version Display for Multicopter FPV Photography

Button definition:

1. Mute button
2. Up/Auto channel search button
3. Power/ Menu button
4. Down/Reference scale show/hide button
5.Video output port
6.Video input port
7.Battery charging status light (will turn OFF when the battery is fully charged)
8.Micro USB Charge port

LED Screen
- Resolution:   800×480(HD)
- Backlight:   LED
- Brightness: 700 cd/m2(HD)
- Aspect ratio:   16:9
- Response time:  10ms
- Color system:  PAL/NTSC
- Power Supply Battery life 2.5-3 hours
Input
- Signal:  Video(PAL/NTSC)
Output
- Signal:  Video
Matching antenna
- Interface:  RP-SMA
5.8G
- Sensitivity:  -94db

Button Description
Button name
- Function Shortcut functionMute button Mute
Adjustment
- button(+) Item increase Auto channel search
Adjustment
- button(-) Item decrease Reference scale display
Power/Menu button
- Enter menu Turn-on/off

5.8G .32CH are covered:
A1: 5.645G B1: 5.740G C1: 5.725G D1: 5.733G
A2: 5.665G B2: 5.760G C2: 5.745G D2: 5.752G
A3: 5.865G B3: 5.780G C3: 5.765G D3: 5.771G
A4: 5.705G B4: 5.800G C4: 5.785G D4: 5.790G
A5: 5.885G B5: 5.820G C5: 5.805G D5: 5.809G
A6: 5.905G B6: 5.840G C6: 5.825G D6: 5.828G
A7: 5.925G B7: 5.860G C7: 5.845G D7: 5.847G
A8: 5.945G B8: 5.880G C8: 5.865G D8: 5.866G

Format:
3 options are provided: AUTO/
PAL/NTSC. If AUTO selected, the input video system will be automatically identified. System setting will cause display failure.
GAMMA:
Control buttons: (-), (+). Range: C1-C3.
Brightness:
Control buttons: (-), (+). Range: 1-99.
Contrast:
Control buttons: (-), (+). Range: 1-99.
Saturation:
Control buttons: (-), (+). Range: 1-99.
Voltage trimming:
Range:-10~+10 (-0.1V~+0.1V)
Language:
Control buttons: (-), (+).
Options: Chinese and English
Reset:
This option leads back to factory default
settings.

Auto Channel Search
Press “+ button” to start auto channel search. The channel with the strongest signal will be chosen.
Show/hide Reference Scale
Reference scale can be showed by pressing “- button” once and hided by pressing the same button again.
Battery Charging
Connect the machine to a phone charger using the included USB cable. Using 1A charger or turning off the machine will increase the charging rate. The Charging
Status Light remains ON while the battery is charging and it will turn OFF when the battery is fully charged. Charging current can be 500mA or 1A.

FAQ
The video displayed is black-and-white:
Check whether the camera output is black-and-white (some cameras might automatically shift to black-and-white in low-light conditions)
Video display is abnormal:
Try resetting the machine. Set the video format to AUTO.
No response when turned on:
Try charging the machine for 30 minutes, notice whether the Charging Status Light is on or not.
No channel can be received:
Install antennas, and move the monitor close to the 5.8 GHz transmitter. Try searching channels manually.
No sound:
Try pressing the Mute button to turn on the sound.
