EAGLE Top Version A3 Super RC Flight Controller System Fixed-wing w/6-axis 3 Gyro+3 Acc MEMS

Description:
- A3 Super is the latest RC flight control system of EAGLE's A3 Series. It is designed especially for fixed-wing. With an integrated built-in high precision 6-axis (3 gyro + 3 acc) MEMS sensor and advanced attitude and PID control algorithm, the controller can accurately detect the angular velocity and attitude of the aircraft and issue commands to all servos, which enables the balance and stability throughout the flight. A3 Super provides mixing functions of delta-wing (flying-wing), v-tail and also supports separate dual aileron and dual elevator controls. It can be used in nearly any type of RC aircrafts.
- A3 Super offers four flight modes, including Normal Stabilization Mode, 3D Attitude Locking Mode, Self-balance Mode and Gyro Deactivated Mode. It also provides three kinds of control behavior including Stable Mode, Normal Mode and Sport Mode to meet the need of various user's requirement.

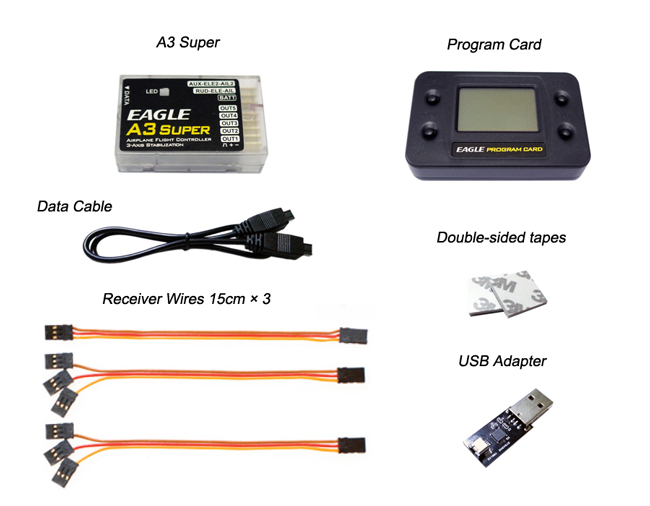

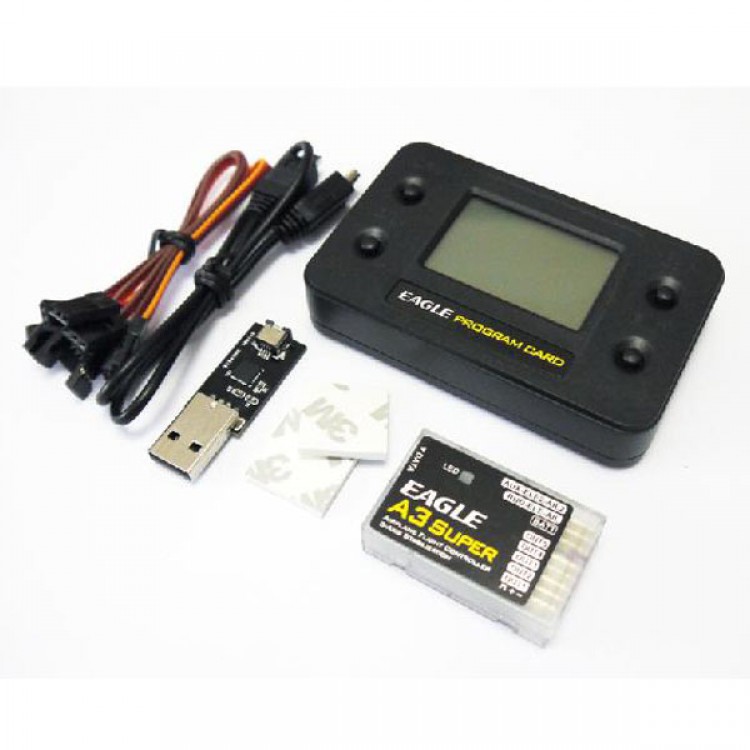

- We also provide you a program card. Without connecting to a PC, you can easily setup all the functions and parameters even during the outdoor flight. The firmware can be upgraded through the USB adapter.

Features
- Integrated design of 6-axis (3 gyro+3 acc ) MEMS sensor for self-stability and self-balance.
- 4 flight modes: Normal Stabilization, 3D Attitude Locking, Self-balance and Gyro Deactivated Modes.
- 3 control behaviors: stable, normal and sport modes.
- Separate dual aileron and elevator with dual input supported.
- Easy-to-use program card which supports both Simplified Chinese and English.
- Independent gyro gain adjustment and gyro ratio selection for each flight mode.
- Separate adjustments of servo travel limit to both sides of neutral.
- Mixing functions of delta-wing (flying-wing) and v-tail.
- More advanced configurations can be customized such as servo operating frequency, gyro response rate, gyro switch, level offset, stick centering and stick deadband.

Functions (Ver.1.0)
- Flight Mode (NORM/3DAL/SBAL 3-position assignment)
- Wing Type (Normal/Delta-wing/V-tail)
- Normal Gain (Aileron/Elevator/Rudder 0~100%)
- 3D Flight Gain (Aileron/Elevator/Rudder 0~100%)
- Self-balance Gain (Aileron/Elevator 0~100%)
- Gain Ratio (NORM/3DAL/SBAL S/M/L)
- Mount Orientation (Face Up/Face Down)
- Servo Limits (AIL-L/AIL-R/ELE-U/ELE-D/RUD-L/RUD-R 0~100%)
- Gyro On-Off (3-axis ON/OFF)
- Gyro Direction (3-axis NOR/REV)
- Servo Frequency (55Hz/66Hz/83Hz/111Hz/166Hz/333Hz)
- Response Rate (Very Slow/Slow/Standard/Fast/Very Fast)
- Self-balance Delay (Roll/Pitch 0~100%)
- Level Offset (Roll/Pitch ±10°)
- Stick Centering
- Stick Deadband (0-10%)
- Data Save (5 copies)
- Data Load (5 copies)
- Language (Chinese:English)
- Device Info.
- Card Info.
- Data Reset

Specifications
- Gyroscope: ±2000 dps
- Accelerometer: ±4g

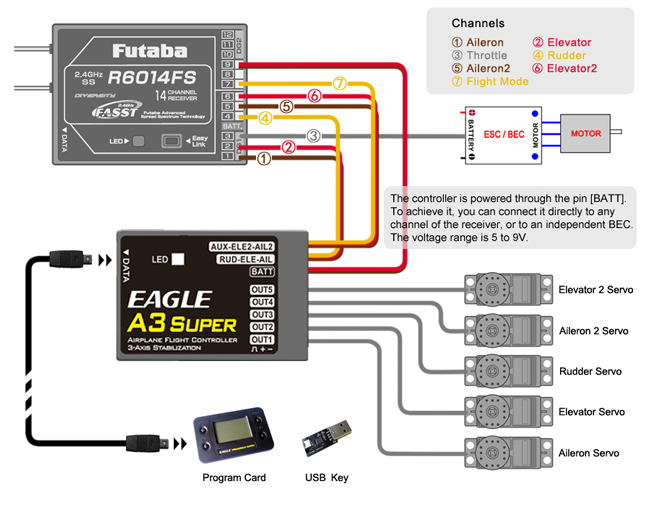

- Input Voltage:     DC5V~9V
- Supported Servo Type: 1520μs analog and digital servo
- Operating Temperature: -40 ℃ ~ 85 ℃
- Size:     43×27mm
- Weight: 10g (excluding receiver wires)
