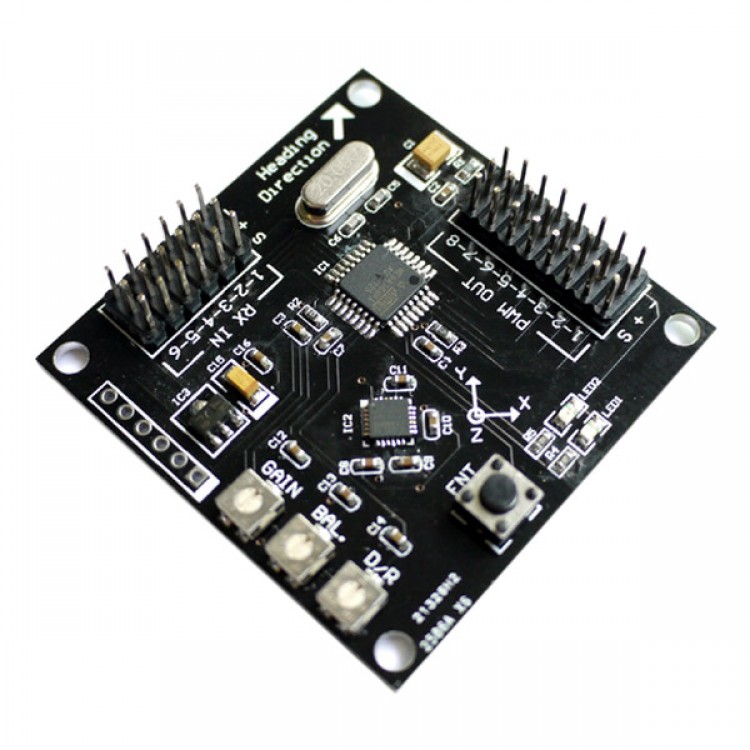

Eagle X6 6 in 1 Flight Control Board for RC Multicopter Quadcopter
Features:
- Integrated design of 6-axis (3 Gyro+3 Acc ) MEMS sensor for Self-stability and Self-balance;
- 6 Multi-types supported: TRI, QUAD+, QUADX, HEX6+, HEX6X and Y6;
- Independent adjustment for Gyro Gain, Stability Gain and Stick Rate (D/R);
- With a 2-axis PTZ camera stabilization system built in;
- Provides 5-level response rate setting for the sensor;
- One-key setting mode.
Specifications
- Input Voltage: 5 ~ 6V DC ( Provided by BEC of ESC )
- Output PWM Range: 1520 ± 400μs
- Frame Rate of PWM Output: 333Hz/ESC, 66Hz/Servo
- Full-Scale Range of Gyro: ±2000dps
- Full-Scale Range of Accelerometer: ±4g
- Operating Temperature: -40 ℃ ~ 85 ℃
- Dimensions: 50mm × 50mm
- Weight: 12g
