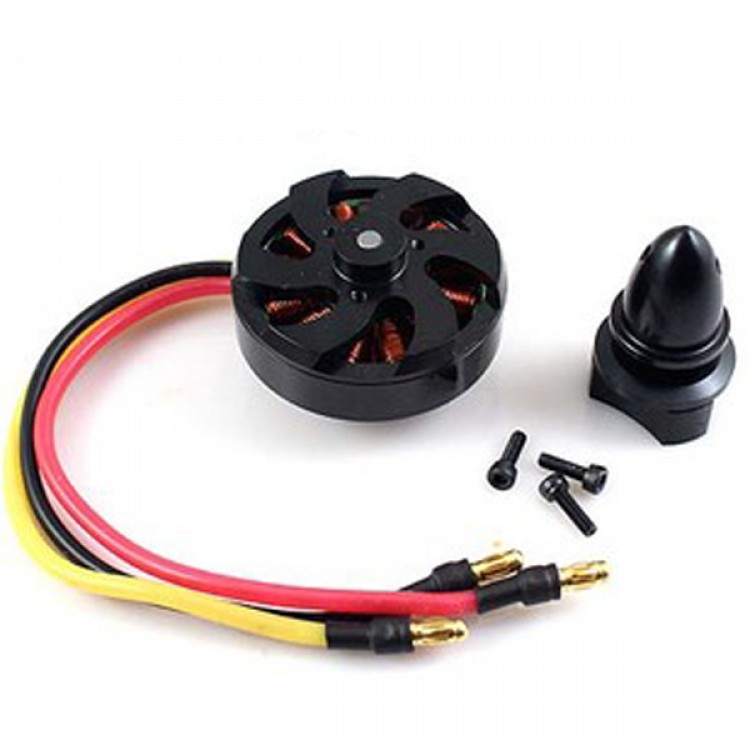

EagleKing 4215-650KV Multicopter Disk Type Outrunner Brushless Motor
  • EagleKing 4215-650KV Multicopter Disk Type Outrunner Brushless Motor
  • EagleKing 4215-650KV Multicopter Disk Type Outrunner Brushless Motor

  • SKU:23036
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 3
  • Price:$29.70
  • Price in reward points: 279
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $27.34 $26.78 $25.95 $24.83 Contact US

EagleKing 4215-650KV Multicopter Disk Type Outrunner Brushless Motor

Specification

- KV Value: 650KV
- Stator diameter:35mm
- Stator length:7mm
- Shaft diamension: 4.0*27
- Motor diamter:42mm
- Weight:82g
- No load current: ≤1.2A
- Recommended battery:11.1V
- Max current:15.7A
- Max efficiency:232.36
- Motor Efficient:(4-12v)    83%
- Inner resistance:0.114

Test Data:


Volts
Amps Watts Thrust
APC 12x3.8SF 11.96 13.85 165.6 1'25"
APC 12x3.8SF 15.6 22.1 341.6 3'9"
APC 10x4.7SF 12.01 9.55 114.1 1'10"
APC 10x4.7SF 15.6 14.75 230.1 2'9"
