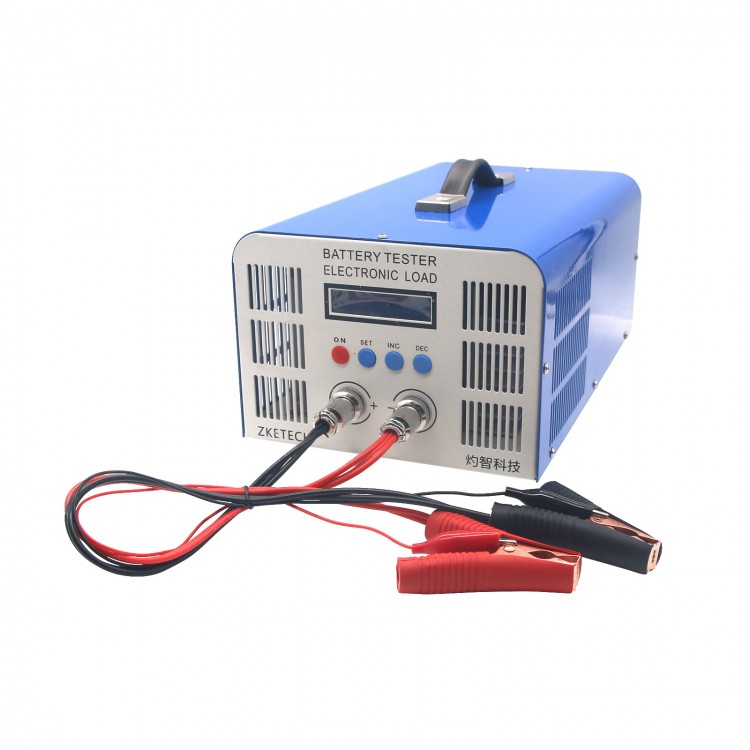

EBC-A40L High-current Lithium Battery Capacity Tester 5V Cycle 35A Charge 40A Discharge Capacity Tester
Note
we do not provide paper manual and CD-ROM. Please visit here to download the manual and softwear in English.Or leave your E-mail and we will send you the manual and softwear in English. Thank you!
Manual download
Software download
Specification:
- 35A charge/40A Discharge
- EBC-A40L is a high current battery capacity tester for 5V battery capacity and performance testing, through the online software with more extensions.
- Model: EBC-A40L
- Voltage range: 0-5V
- Voltage accuracy: 0.2% ± 0.03V
- Current range: 0.1-40A (maximum charge 35A)
- Current accuracy: 0.2% ± 0.01A
- Discharge mode: CC constant current discharge / CP Constant power
- Discharge termination: time / voltage is lower than the set limit / Manual
- Discharge power: maximum 200W
- Charge mode: CV constant current constant voltage charging
- Charge termination: constant current is less than the set limit / Manual
- Capacity test: 10Ah, the resolution of 0.001Ah
10Ah-100Ah, the resolution of 0.01Ah
above 100Ah, the resolution 0.1Ah
- Cooling method: fan active cooling
- Equipment Supply: AC220V

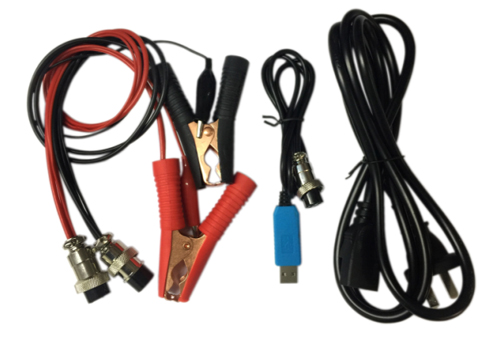

Parts included
