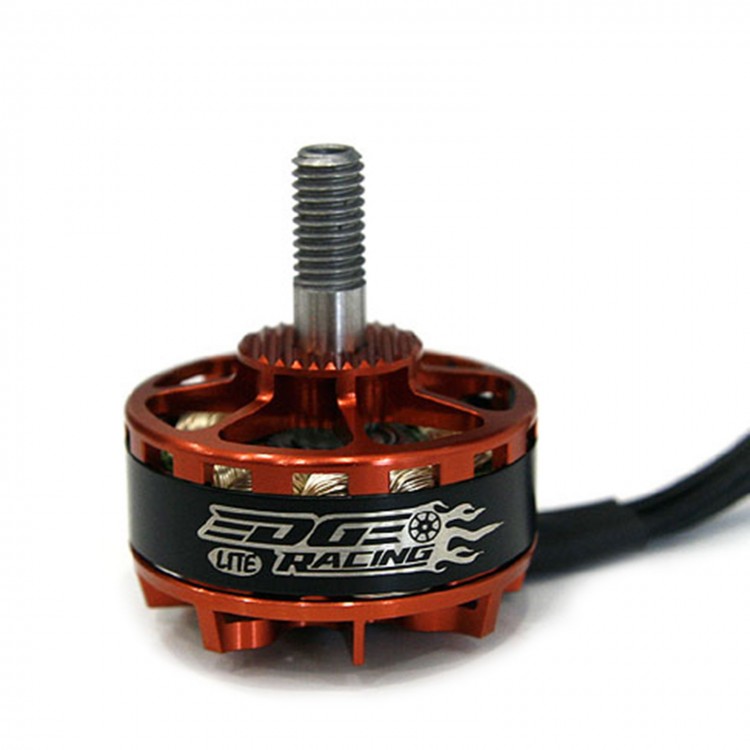

Edge Racing Lite 2205 2480KV CW Brushless Motor for Multicopter Quadcopter FPV

Availability: In stock, usually dispatched in 1 business day

  • Price:$24.62
  • Price in reward points: 246 Reward Points: 2
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $24.13 $23.64 $22.90 $21.91 Contact US
Quantity:

Edge Racing Lite 2205 2480KV CW Brushless Motor for Multicopter Quadcopter FPV

Specifications:

- KV: 2300
- Stator diameter: 22mm
- Stator length: 5mm
- No. of stator arms:12
- No. of stator poles: 14
- No-load current(A/10S): 1.2
- Max continuous Power(W) : 440W
- Max continuous current: 30A/10s
- Internal resistance: 39mΩ
- Weight: 28g
- Outside diameter: 28mm
- Shaft diameter:5mm
- Body length:18.5mm
- Overall shaft length:31.5mm
- No.of cells (Lipo): 2-4S
- ESC:30A-40A
- Recommended Pro(inch):HQ5*3,HQ5*4,HQ5*4.5

Package included:
- 1x Edge 2300KV CW motor
