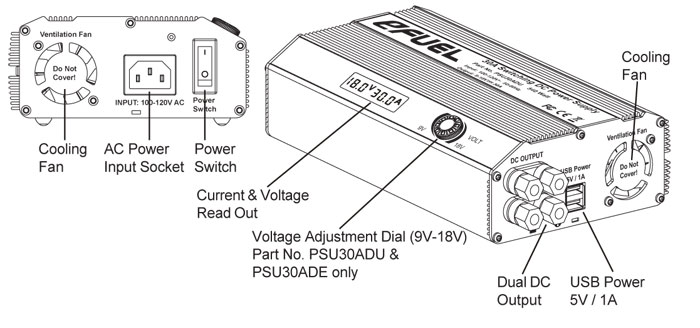

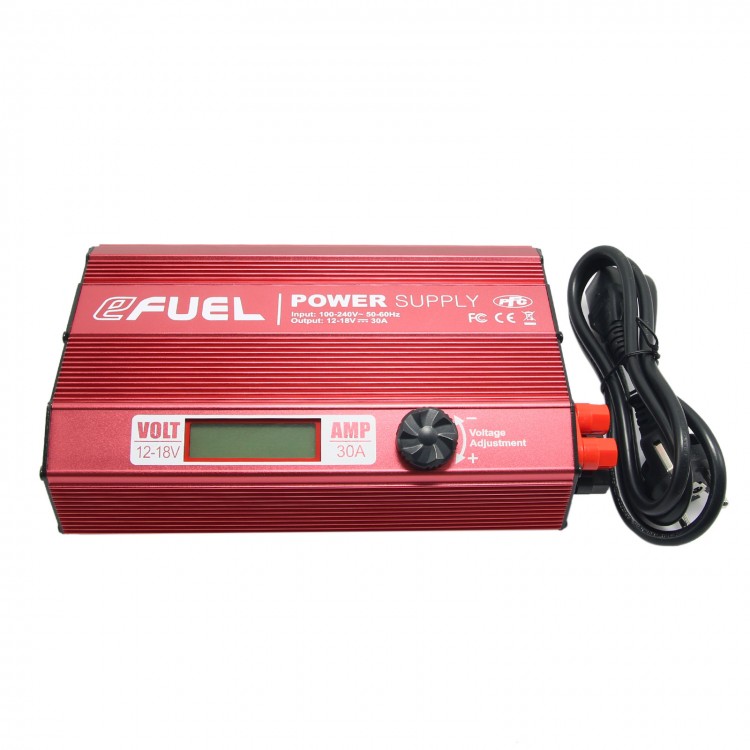

eFUEL 30A Switching DC Power Supply 100-240V AC to 12-18V DC Power for SKYRC Quattro B6 80W Charger
Your eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 100-240V AC to 12-18V DC power and can supply up to 30 amperes of continuous power.
Features:
- Two DC power outputs, up to 30 amperes
- Output voltage adjustable 12-18V
- Large LCD indicates voltage and current amperes output
- Two USB ports, 5 volts, 1000mA total for MP3 player, mobile phone and digital cameras
- Smart cooling fan
- Over temperature protection
- Over loading protection
- Short circuit protection
Specifications:
- Voltage…………………………………………………………………………………………………100-240V AC
- Input AC Frequency…………………………………………………………………………………………50-60Hz
- Output Voltage……………………………………………………………………………………12-18V DC±0.5V
- Output Current………………………………………………………………………………………………30A±1A
- Current Overload Protection…………………………………………………………………………≤31A 500MS
- Input Fuse…………………………………………………………………………………………… 10A Fuse
- LCD Display………………………………………………………………………………Voltage Precision ±0.3V
Current Precision ±0.3A
- Output Voltage Ripple………………………………………………………………………………………< 150mV
- Power Efficiency………………………………………………………………………………………………89%
- Power Factor……………………………………………………………………………………………………> 0.98
- Over Temperature Protection………………………………………………………………………………<65℃
- Cooling Method…………………………………………………………………………………………Cooling Fan
- Operating Temperature………………………………………………………………………………………0-40℃
- Operating Humidity……………………………………………………………………………………………0-90%
- Dimensions (L*W*H)……………………………………………………………………………218x139x59.5mm
- Net weight………………………………………………………………………………………………………1.62kg
Specifications are typical; individual units might vary. Specifications are subject to change and improvement without notice.
Download:
PSU 30A manual-new.pdf
