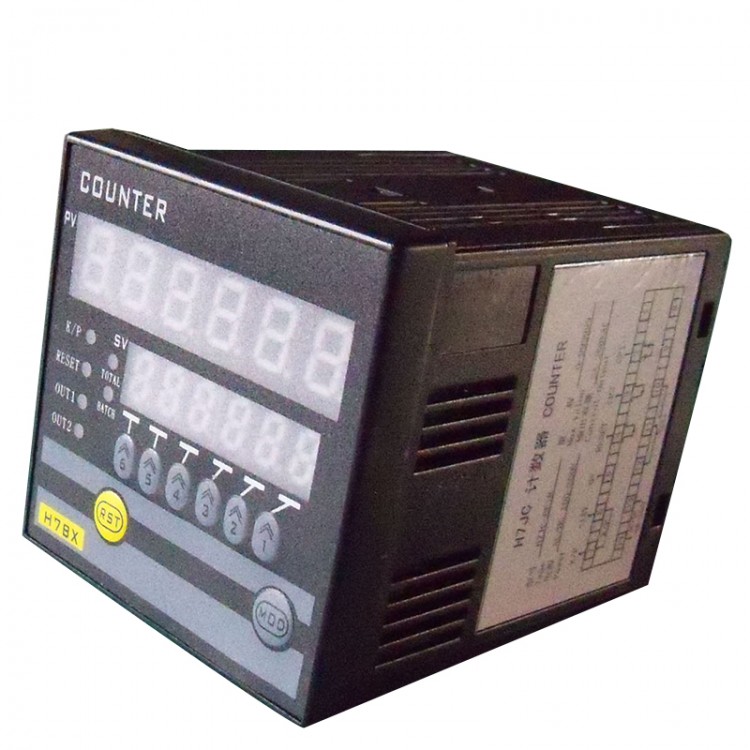

Elecronic Counter Total Counter Batch Counter H7BXJC2-6E2R

Elecronic Counter Total Counter Batch Counter H7BXJC2-6E2R

Description:
- This product can be used to calculate length and weight at the same time
- H7BXJC2-6E2R is added 2 functions, code protection adn parameters recovery. 4 grade speed: 30 times/sec, 300 times/sec, 2000 times/sec, 4000 times/sec. Reliable quality , stable performance, strong anti interference ability

Two group relay output:
- one is total number/batch number control(Total OUT1), another is batch control (Batch OUT2)
- Several types of relay output mode, total number controlled relay(Total OUT1) output mode has 01-06 six types
- Batch control relay(Batch OUT2) output mode 01-04
- Counting range :0-999999
- Plus minus  reversible A, B, C
- Can caulculate (pulse equivalent: 0.00001-99.9999)
- Off power calculation (power failutre memory) and no calculation
- Has several reset mode:  button reset, automatic reset, and external termianl (RESET) impulse reset
                                                 Terminal(RESET2) reset is batch number reset termianl, batch number plus 1 and reset batch
- Can locate the decimal point

Parameter:
- Power supply: AC/DC 100-250V
- Output power supply:DC12V 100mA(for sensor use)
- Input signal frequency: 0-2KHz
- Input signal: impulse width>=15mS(30cps)  impulse width>=0.2mS(2000cps)
- Dimension: 72*72*85MM
- Hole size: 68*68MM
- Weight: 230g
- Consumption:<4W
- Trigger capacity: AC220V 3A DC24V,5A
- Reset impulse signal: Low level<=2V  High>=4V
- Input resistance: 4.7K
- Environment: temp 0-60degree, relative humidity<=85%
- Storage temp: -20---85degree
- Installation: snap in
