Electronic Brick ACS712 Current Sensor Brick

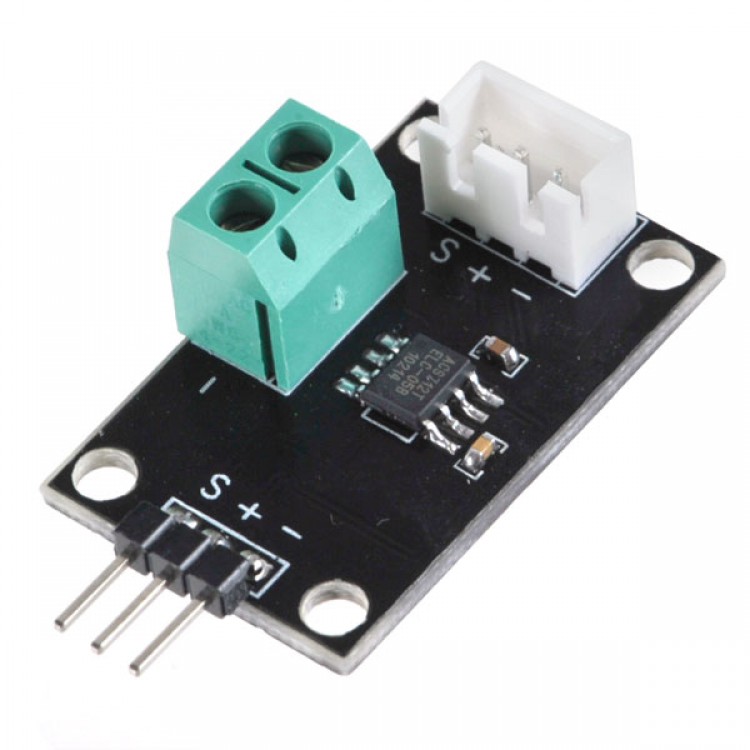

This is a brick with the fully integrated Hall Effect based linear ACS712 current sensor. The sensor gives precise current measurement for both AC and DC signals. Thick copper conductor and signal traces allows for survival of the device up to 5 times overcurrent conditions. The current should pass through the "+" to "-" terminals.

Connect the + pin to 5v and - pin to GND, S pin will output the analog current information.

Schematic for this brick. Datahseet of ACS712 current sensor.

This birck work with Arduino Sensor Shield and Arduino Mega Sensor Shield via 3Pin Connect Cables.

Or directly with Iteaduino.
