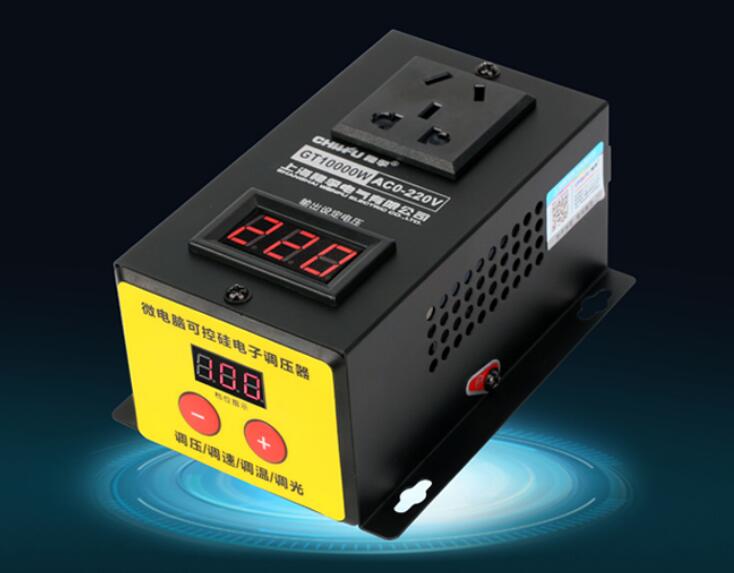

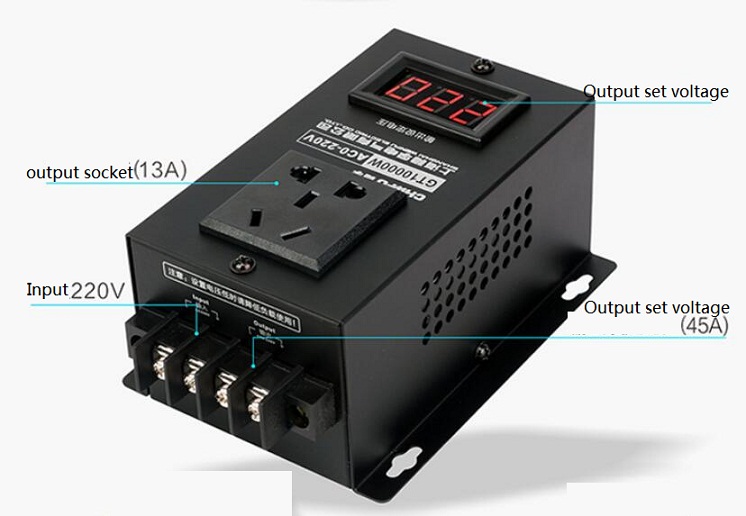

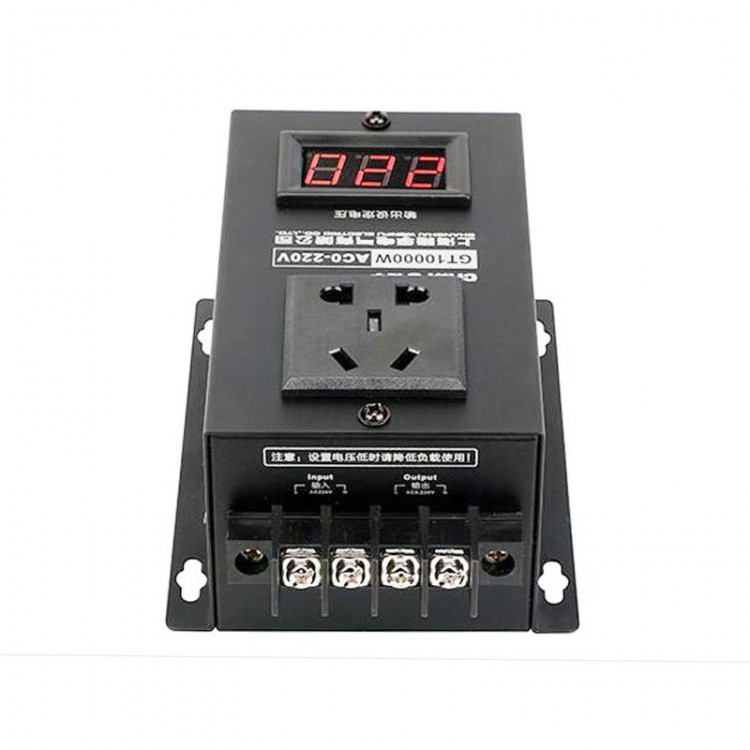

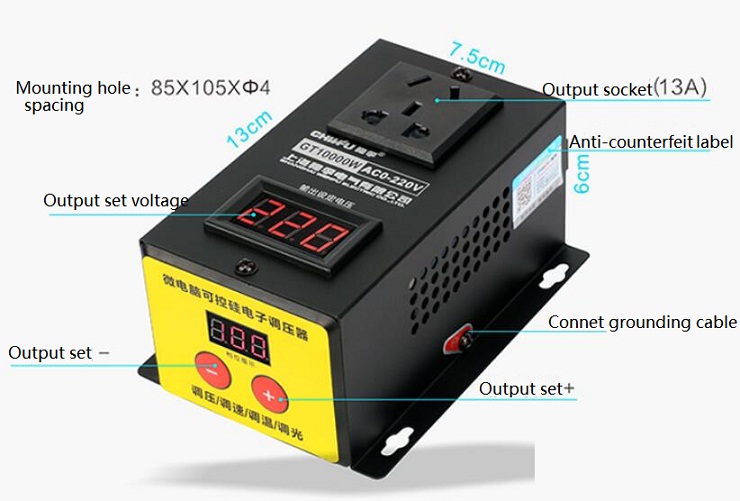

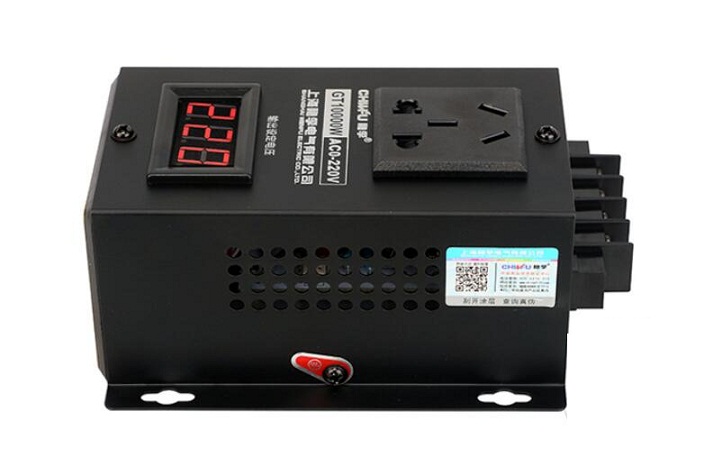

Electronic Voltage Regulator Speed Controller Thyristor Dimmer 10000W Large Power 220V

Tags: Electronic Voltage Regulator

Availability: In stock, usually dispatched in 1 business day

  • Price:$27.95
  • Price in reward points: 280 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $27.39 $26.83 $25.99 $24.88 Contact US
Quantity:

Electronic Voltage Regulator Speed Controller Thyristor Dimmer 10000W Large Power 220V

Product Description:
- Input voltage:AC220V
- Output voltage:AC0-220V
- Rated current:25A(5000W)
- Imported IC chip,1.6mm FR-4 dual circuit panel
- Flame retardant insulation shell,new universal socket
- Adjustable knobs,very large heat sink,hook design,voltage display

GT-10000W Parameter:
- Controllable mode:BTA100-800B (import) STMicroelectronics
- Input voltage:AC 220V
- Output voltage:AC 10-220V,adjustable(output voltage<input voltage)
- Rated current:25A
- The max current:45A
- The max power:10000W(Resistive load limit power,indoor temperature 5000W use)

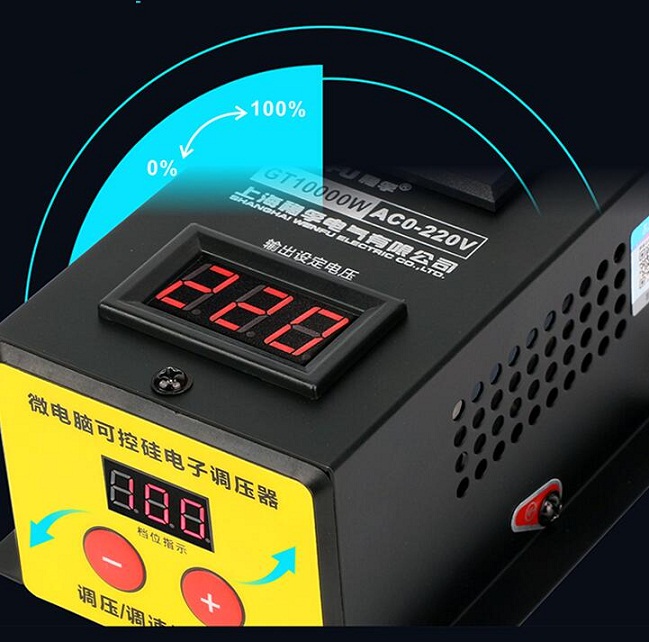

- Voltage adjustment:0-100%(220V devide 100 level adjust,nonlinear)
- Value save:value auto save,it will recovery to the last value when the current is on.

Features:zero delay,with peak voltage absorption circuit, effectively protect high-power thyristor, anti surge, anti peak, RC absorption, multiple protection

Application:household electrical appliances,industrial applications,scientific experiment instrument,factories,schools,such as electronical equipment.
button multi-level

Note:
- No-load testing output voltage and input voltage is the same,you need to connect more than 30W load,then you will test output voltage

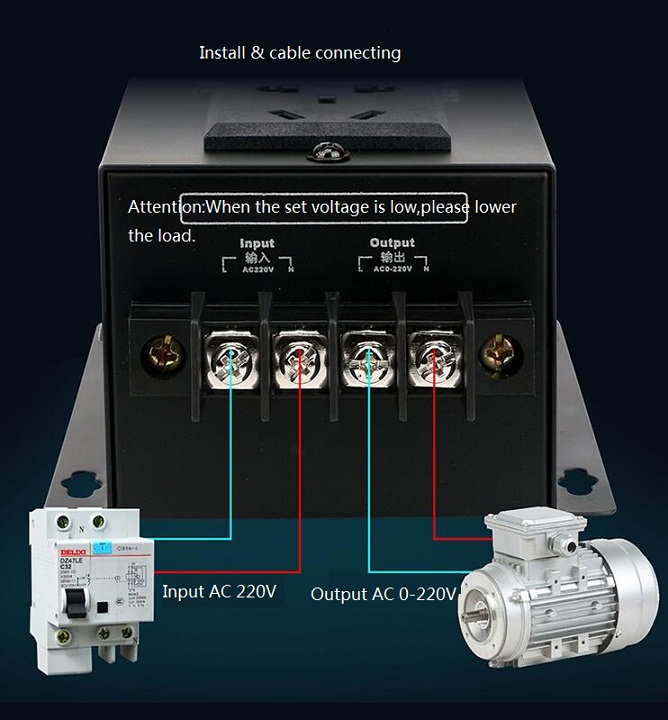

- Input AC,output AC
- The above 10000W refers the resistive load power.Connect inductive load is 1/3 of resistive load.Resistive load means electric lamp,heating cable;inductive load
is series excited motor.
- Metal shell application,please connect grounding cable.

Package List:
- 1 x Electronic Voltage Regulator Speed Controller
