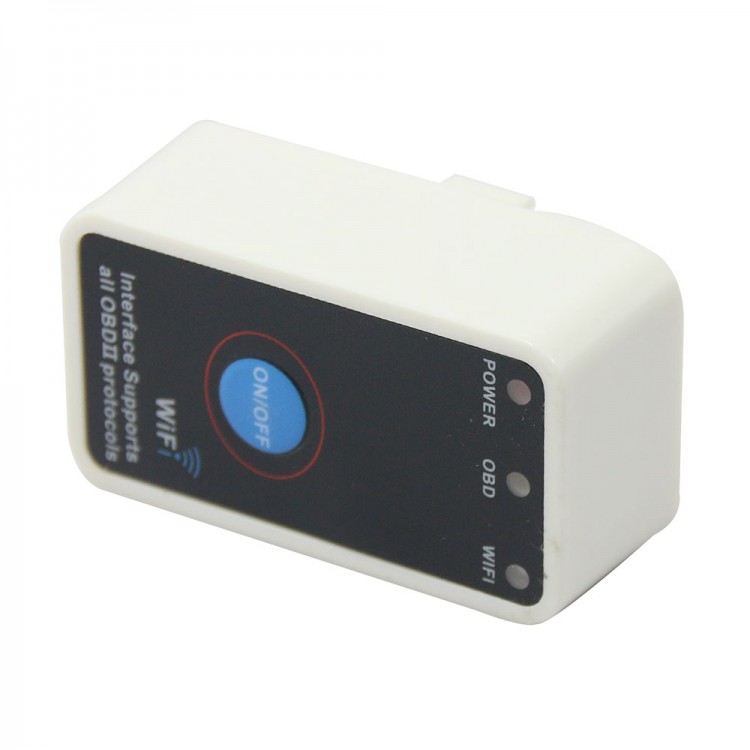

ELM327 V2.1 Super MINI WIFI ON/OFF Switch ELM327 WIFI OBD2 / OBDII ELM 327 Car Scanner

ELM327 V2.1 Super MINI WIFI ON/OFF Switch ELM327 WIFI OBD2 / OBDII ELM 327 Car Scanner

Specifications:
- Operating voltage: 12V, internal protection from short circuits/overvoltages
- Working current: 85mA
- Item Size: 4.5 * 4.1 * 1.8cm
- Item Weight: 21.9g
- Package Weight: 55g

Function:
- Display current sensor data, including: Engine RPM, Calculated Load Value, Coolant Temperature, Fuel System Status, Vehicle Speed, Short Term Fuel Trim, Long Term Fuel Trim, Intake Manifold Pressure, Timing Advance, Intake Air Temperature, Air Flow Rate, Absolute Throttle Position, Oxygen sensor voltages/associated short term fuel trims, Fuel System status, Fuel Pressure etc.
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Compatible Phones: Android Smartphone
- Compatible Software: Easy OBD2, ScanMaster ELM, wOBD Crazy and More
- Processor: ELM327 v2.1
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Supported Software Compatible for Windows, OSX, Palm, Pocket-PC, Linux, Android, DOS, and Windows Smartphone
- Supports all OBD2 Protocols (ISO15765-4 (CAN), ISO14230-4 (KWP2000), ISO9141-2, J1850 VPW, J1850 PWM)
- Works with Android Torque (Suggested)
- Works with OBD2 Complaint Vehicles

Support OBDII Protocols:
- SAE J1850 PWM (41.6 kbaud)
- SAE J1850 VPW (10.4 kbaud)
- ISO 9141-2 (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (5 baud init, 10.4 kbaud)
- ISO 14230-4 KWP (fast init, 10.4 kbaud)
- ISO 15765-4 CAN (11 bit ID, 500 kbaud)
- ISO 15765-4 CAN (29 bit ID, 500 kbaud)
- ISO 15765-4 CAN (11 bit ID, 250 kbaud)
- ISO 15765-4 CAN (29 bit ID, 250 kbaud)
- SAE J1939
- J1979

Package including:
- 1 x 2014 New Super MINI WIFI ON/OFF Switch ELM327 Black OBD2 / OBDII ELM 327 V1.5 for Android IOS Car Scanner
- 1 x CD driver
