Eloik ALK-88 Fiber Optic Digital Welding Splicing Machine Fusion Splicer Fusionadora de Fibra Optica

Eloik ALK-88 Fiber Optic Digital Welding Splicing Machine Fusion Splicer Fusionadora de Fibra Optica

Product Description:
- Fusion Splicer (portable) Fiber Optic Equipment is a Mini type Fusion splicing machine and have our own intellectual property right of fiber adjustment technology.
- It adopts advanced PAS Fiber adustment technology . Adopt four motors drive, have fiber adjustment function, it is not only used for FTTX project, but also can be used for the trunk line, it is a machine which is the smallest volume,the lightest weight ,the most fast splicing speed

Features:

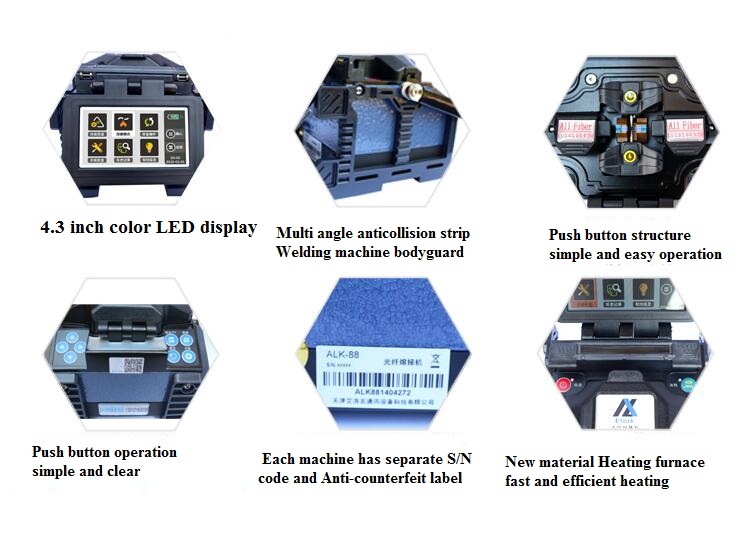

- Hardness:The body is made from titanium alloy , and it has rubber protection function , quakeproof, waterproof, dustproof .
- Fast: 7s fast splicing,30s fast heating, support continuous heating , average efficiency improve 2-3times.
- Long lifetime : 1group batteries. 200 fiber splicing ,no memory effect Lithium Batteries ,the fiber cleaver has 16 blade,long lifetime.
- Convenience: convenient for maintenance
- Six languages: Chinese, English, Russian, Portuguese, French, Spanish
- Applicable Fiber Type: SM,MM,DS,NZDS
- Applicable Fiber Count: Single
- Applicable fiber diameter:  Cladding diameter of 125um, coating diameter 250 ~ 900umm
- Splice Mode: Stored 40 groups, 80 groups of user-defined
- Average splice loss: 0.01dB(SM),0.005dB(MM),0.04dB(DS),0.04dB(NZDS)
- Return Loss: More than 60dB
- Connecting time: 9sec(Typical time)
- Splice loss evaluation: Have
- Tensile test: 2N
- Screen: 4.3 in. color LCD, support Chinese and English display
- Optical magnification: X / Y: 115 times, X, or Y: 230 times
- Power Supply: 11.1V lithium battery, 13.5V/5A power adapter, 12V vehicle power supply
- Battery: Typical Operating 220 (splice / heat shrink / thermal stripping) on a single charge 3h, can be reused 500 times
- Maximum storage: 5000 set of the latest record storage
- Data interface: USB2.0
- Operating environment: Altitude 0 ~ 4000m, 0 to 95% relative humidity, temperature -10 ~ 55degree, the maximum - wind speed 15m / s
- Storage Conditions: 0 to 95% relative humidity, temperature -40 ~ 80degree (except battery), temperature -10 ~ - 30 degree (battery)
- Weight: 1.54kg (without battery), 1.82kg (including battery), including attachments packing gross weight: 5.38Kg
- Corrosion resistance: Device components, spare parts and materials used meet corrosion requirements, fluid contamination from erosion
- Size: 150D×130W×126H(mm)
- packing:  New waterproof, drop, more than can be heavy 300KG

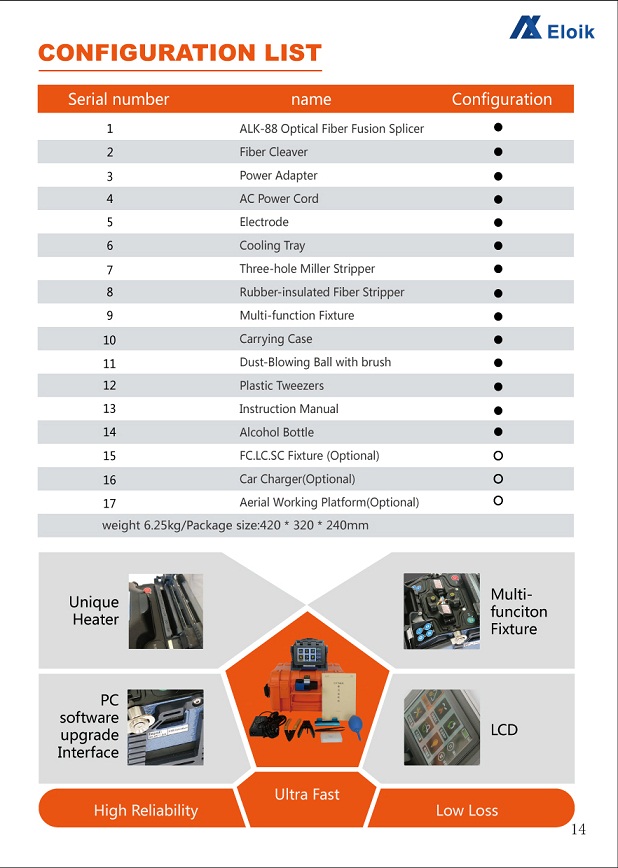

Package List:
