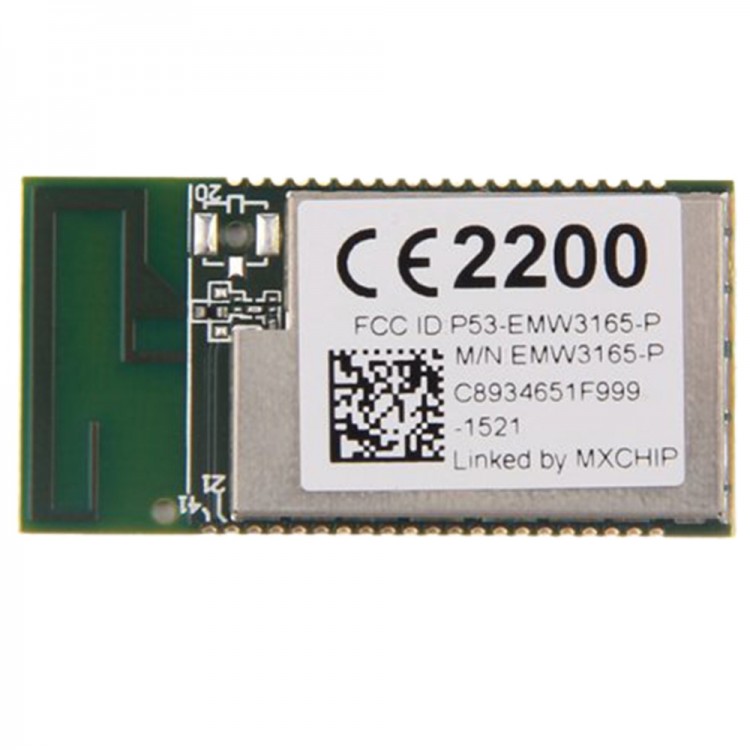

EMW3165-Cortex-M4 100MHz 3.0V-3.6V Based WiFi SoC Module WIFI Module for DIY
Description:
EMW3165 is a low-power embedded Wi-Fi module integrates a wireless LAN MAC/baseband /radio, and a Cortex-M4 microcontroller STM32F411CE that runs a unique "self-hosted" Wi-Fi networking library and software application stack. EMW3165 has 2M bytes of on-board flash besides 512K bytes of in-chip flash, 128K bytes RAM and rich peripherals for user embedded Wi-Fi applications.
EMW3165 is also a MiCO platform, users can build their own embedded Wi-Fi applications based on MiCO library which manage all of the Wi-Fi MAC and TCP/IP stack processing. We also provide independent series of particular firmware to meet typical applications: Wireless UART, Cloud Service etc.
Features:
- Consists of a Cortex-M4 microcontroller and an IEEE 802.11 b/g/n chip
- Cortex-M4 core at 100MHz
- 2M bytes on-board SPI flash and 512K bytes on-chip flash
- 128K bytes RAM
- Operation voltage:3.0V~3.6V
Peripherals
- 22 GPIOs
- JTAG/SWD debug interface
Wi-Fi connectivity
- 802.11b, 802.11g, 802.11n (single stream)
- WEP, WPA/WPA2 PSK/Enterprise
- 16.5dBm@11b，14.5dBm@11g 13.5dBm@11n
- Receiver Sensitivity: -87 dBm
- Station, Soft AP and Wi-Fi direct
- Support EasyLink
- On-board PCB antenna，IPEX connector for external antenna
- CE，FCC compliant
Package included:
- 1 x EMW3165 - Cortex-M4
