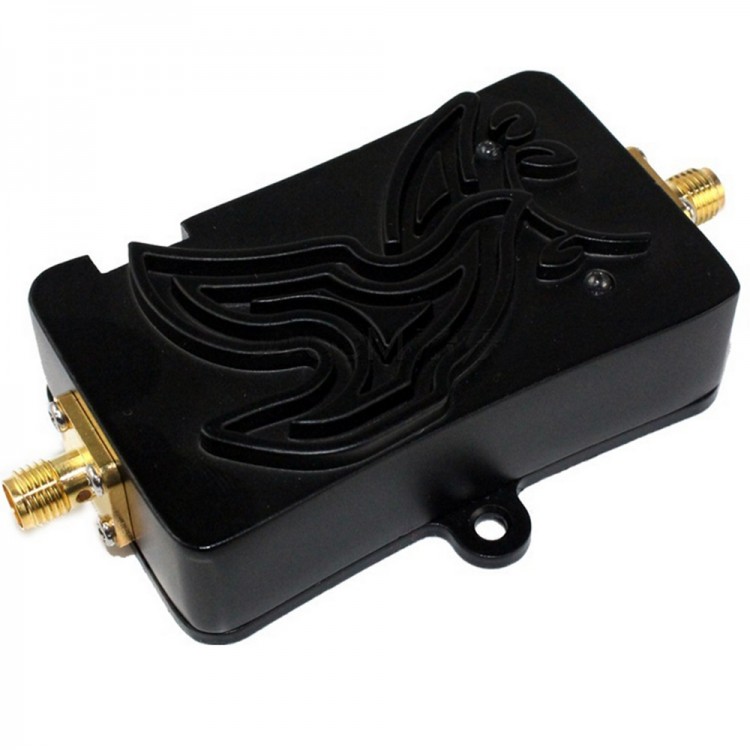

• EP-AB007 4W 2.4GHz WiFi Wireless Broadband Amplifier WiFi WLAN Booster Extender Signal Booster

EP-AB007 4W 2.4GHz WiFi Wireless Broadband Amplifier WiFi WLAN Booster Extender Signal Booster

Availability: In stock, usually dispatched in 1 business day

  • Price:$27.98
  • Price in reward points: 280 Reward Points: 3
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $27.42 $26.86 $26.02 $24.90 Contact US
Quantity:

EP-AB007 4W 2.4GHz WiFi Wireless Broadband Amplifier WiFi WLAN Booster Extender Signal Booster

Specification:

- Support Standards: IEEE 802.11b/g/n
- Frequency: 2.4~2.5GHz
- Working Pattern: TDD
- RF Output Power: 36dBm (4W)
- Input Trigger Power: Min 3dBm; Max 20dBm
- Transmit Gain: 13dB±1
- Receiver Gain: 10dB±1
- TX/RX Switch Time Delay: <1μs
- Noise Figure: 2.5dB (Typical)
- Working Voltage: 6~18V DC
- Color: Black
- Weight: 177g
- Dimension: 89*50*19mm

Steps:
- Remove the Antenna from the Wireless Router (Access Point)
- Use RG316 cable to connect the Booster and AP
- Connect the Antenna to the other end of Booster
- Plug in the Power Adapter

Package included:
- 1 x WiFi Booster
- 1 x Adapter
- 1 x Antenna
