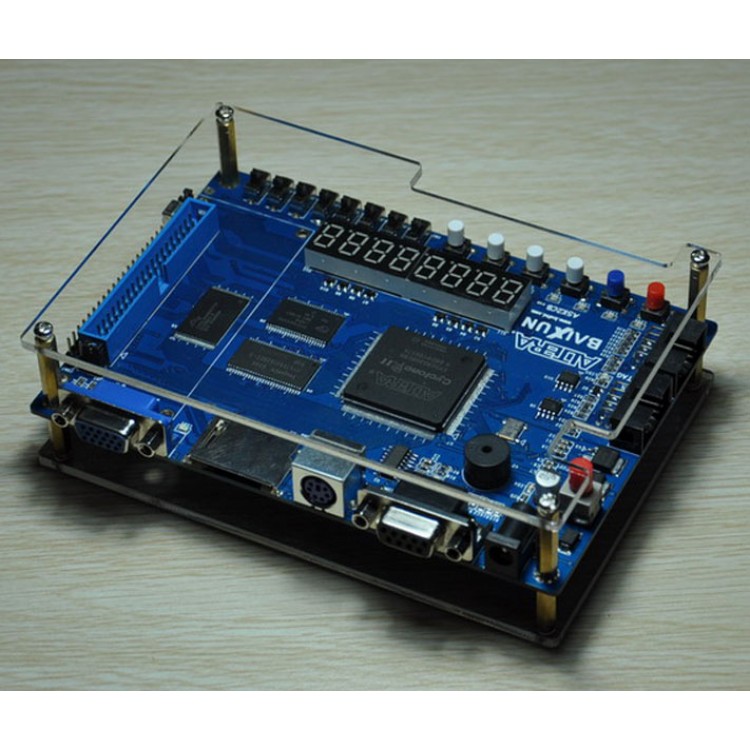

EP2C8Q208 Altera Cyclone NIOS II FPGA Development Board
  • EP2C8Q208 Altera Cyclone NIOS II FPGA Development Board
  • EP2C8Q208 Altera Cyclone NIOS II FPGA Development Board

  • SKU:24072
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 8
  • Price:$75.99
  • Price in reward points: 760
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $74.47 $72.95 $70.67 $67.63 Contact US

- FPGA chip: EP2C8Q208C8N (8256Les, 2PLLs, 18MULs, 36M4Ks)
- Configure the chip I: EPCS4 (4MBit/512KByte)
- SDRAM: K4S641632H-TC (L) 75l (64MBit/8MByte 133MHz)
- Nor Flashl: S29AL016D70ATI01 ​​(16MBit/2MByte)
- SRAM: ISSI61LV5128-10TI (4MBit/512KByte 10ns) (optional RMB30)
- AD: TLC549 (8Bit 40Ksps)
- DA: TLC5615 (10Bit 1.21M)
- TEMP: DS18B20
- IR: 1838 (NEC with remote control)
- RTC: DS1302Z (with CR2032)
- LCD1: 2.4 'TFT LCD 320 * 240 (optional RMB70)
- LCD2: 3.5 'TFT LCD 480 * 320 (optional RMB150)

Peripheral configuration:
- The digital control * 2, eight
- LED * 4,4 bit
- LCD12864 Interface
- LCD1602 Interface
- VGA Interface
- UART interface (serial, MA3232)
- SD card interface
- PS2 interface * 2
- 4-pin socket * 2 (AD / DA / op amp)
- 40 Pins pin (3.3V/5V two sets of power, 35GPIO)
- 30 Pins pin (3.3V/5V two sets of power, 25GPIO, LCD1 / 2 interface)
- USB transposons (power supply)
- Potentiometer (1602 Contrast adjustment)
- KEY * 6, 6 separate buttons (large buttons, feel better).
- 50 M active crystal
- JTAG / AS, the configuration interface
- DC-5V Interface / self-locking switch...
