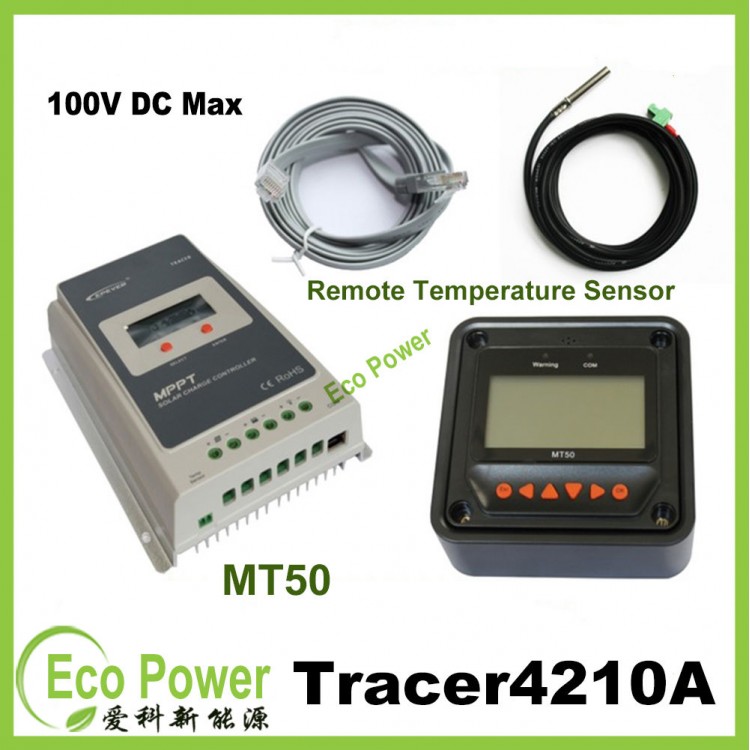

EPEVER 40A MPPT Solar Charge Controller12V 24V 100VDC input W/MT-50+Temperature Sensor
  • EPEVER 40A MPPT Solar Charge Controller12V 24V 100VDC input W/MT-50+Temperature Sensor
  • EPEVER 40A MPPT Solar Charge Controller12V 24V 100VDC input W/MT-50+Temperature Sensor
  • EPEVER 40A MPPT Solar Charge Controller12V 24V 100VDC input W/MT-50+Temperature Sensor
  • EPEVER 40A MPPT Solar Charge Controller12V 24V 100VDC input W/MT-50+Temperature Sensor
  • EPEVER 40A MPPT Solar Charge Controller12V 24V 100VDC input W/MT-50+Temperature Sensor
  • EPEVER 40A MPPT Solar Charge Controller12V 24V 100VDC input W/MT-50+Temperature Sensor

  • SKU:53355
    (0 reviews)   Write a review(Get Thanksbuyer Points!)
  • Availability: In Stock     Reward Points: 18
  • Price:$179.80
  • Price in reward points: 1798
  • Buy more, save more
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $176.20 $172.61 $167.21 $160.02 Contact US

EPEVER 40A MPPT Solar Charge Controller12V 24V 100VDC input W/MT-50+Temperature Sensor


Features:
- Automatic identify  the controller, and display the type, model and relevant parameter data
- Large-screen multifunction LCD displays all the operational data and system working status in digital, graphic and textual forms
- With six navigation function keys, the  operation is direct, convenient and rapid
- Real-time energy statistics recording
- Both data and data flowing on the same lead ,no need for  external power
- Real-time monitoring and acoustic alarm of failure information of the controller
- Longer communication distance based on RS485
- More powerful function Via MT50
- Diversified load control modes:manual, light ON/OFF, Light ON+ Timer, Time Control
- Battery type selection: Gel, sealed, flooded and USER type
- Real-time monitor
- Programmable parameters
- Energy  display function


Spefication:
- Self-consumption:Backlight and acoustic alarm on<65mA, Backlight on<23mA,Backlight off <15mA
- Faceplate dimensions:98×98 mm / 3.86×3.86 in
- Frame dimensions:114×114 mm / 4.49×4.49 in
- Connector type:RJ45
- Meter cable:Standard 2m, max .50m
- Meter weight:0.190 Kg
- Ambient Temperature:-20 -+70C/-4-158


Tracer A series adopts common positive design and advanced MPPT control algorithm. The products can track

the MPP point fast and accurately in any situation which will improve energy efficiency and obtain the maximum

solar energy.

  • Tracer1210A       10A, 12/24V auto work
  • Tracer2210A       20A, 12/24V auto work
  • Tracer3210A       30A, 12/24V auto work
  • Tracer4210A       40A, 12/24V auto work

Features

  • Advanced MPPT technology
  • High tracking efficiency no less than 99.5%
  • Peak conversion efficiency of 98%
  • Ultra-fast tracking speed
  • Accurately recognizing and tracking of multiple power point
  • Multi-function LCD displays system information intuitively
  • User programmable for battery types, load control etc.
  • 3-Stage charge with PWM output
  • Common positive grounding design
  • RS485 port with industrial standard MODBUS open architecture
  • Fully programmable function via PC software or remote meter

Model

Tracer1210A

Tracer2210A

Tracer3210A

Tracer4210A

Nominal system voltage

12/24VDC  auto work

Rated charge current

           10A

20A

30A

40A

Rated discharge current

           10A

20A

30A

40A

Maximum battery voltage

32V

Max. solar input voltage

100V

Battery terminal voltage

9V~32V

Max. PV input power

130W(12V) 260W(24V)

260W(12V) 520W(24V)

390W(12V) 780W(24V)

520W(12V) 1040W(24V)

Equalize charging voltage

           Gel: 14.2V,  Sealed: 14.6V,  Flooded: 14.8V, USER: 9~17V

Boost charging voltage

           Gel: 14.2V,  Sealed: 14.6V,  Flooded: 14.8V, USER: 9~17V

Float charging voltage

Gel /Sealed /Flooded: 13.8V,   USER: 9~17V

Low voltage reconnect voltage

Gel /Sealed /Flooded: 12.6V,   USER: 9~17V

Low voltage disconnect voltage

Gel /Sealed /Flooded: 11.1V,   USER: 9~17V

Self-consumption

≤20mA/12V; ≤16mA/24V

Temperature compensation coefficient

-3mV/ ºC/2V(25 ºC)

Working temperature

-25 ºC ~+45 ºC

Enclosure

IP30

Overall dimension

172x139x44mm

172x139x44mm

228x164x55mm

252x180x63mm

Power cable

4mm2

10mm2

        10mm2

10mm2

Net weight

0.6kg

1.1kg

          1.2kg

1.9kg
