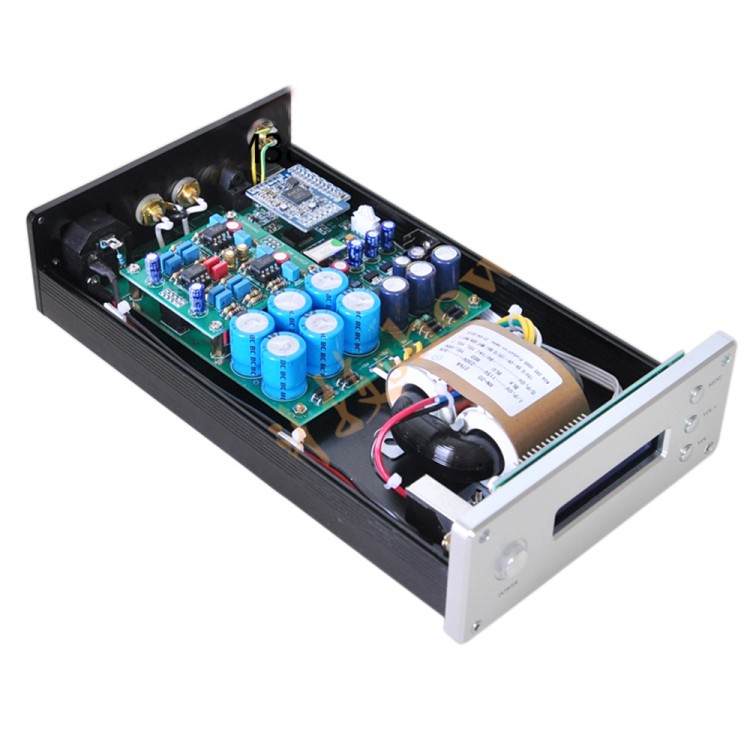

• ES9018 DAC Decoder XMOS U8 Module Digital LCD Audio Decoding USB Support PCM384K DSD

ES9018 DAC Decoder XMOS U8 Module Digital LCD Audio Decoding USB Support PCM384K DSD

Availability: In stock, usually dispatched in 1 business day

  • Price:$240.51
  • Price in reward points: 2405 Reward Points: 24
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $235.70 $230.89 $223.67 $214.05 Contact US
Quantity:

ES9018 DAC Decoder XMOS U8 Module Digital LCD Audio Decoding USB Support PCM384K DSD

Description:

- ES9018 decoder, with 8 independent DAC, dual channel
- Under the control of MCU, support key to control switch for coaxial, optical fiber, USB and wave filter. 120 grade for volume control.
- This decode is with XMOS U8 module, USB support PCM384K, DSD.

Specification:
- Material: HIgh quality aluminum alloy
- Color:  silver panel and black body
- Support coaxial, optical fiber(24bit 192K) and computer USB input
- Support PCM384K and DSD64/ DSD128/DSD256 (ASIO native)
- 3.3V power supply
- Shaping circuit OPA2604AP
- 0.1ppm temperature consumption active crystal
- Filter output: 3 dual amp OPA2604AP I/V and Low pass filtering LPF, with amp socket
- Philips BC (25V 2200UF*6),Panasonic 16V1500uf*3
- Red WIMA0.1U decoupling capacitor
- Analog circuit part adopts 0.1% metal film resistance
- 25M optical fiber receiving port, support 192K signal input
- Voltage regulator: LM317BT LM337BT
- With relay output mute function
- ES9018 analog power supply adopts two voltage regulator chip: LT1963-3.3V, independent power supply for dual channel
- 27VA Oxygen free copper R transformer

XMOS U8 drive and installation download: Click here

Package included:
- 1 x ES9018 DAC Decoder
