ES9028PRO DAC Audio Decoder DSD Italy Amanero USB Module XLR Balance HiFi PCM384

ES9028PRO DAC Audio Decoder DSD Italy Amanero USB Module XLR Balance HiFi PCM384

Parameters:

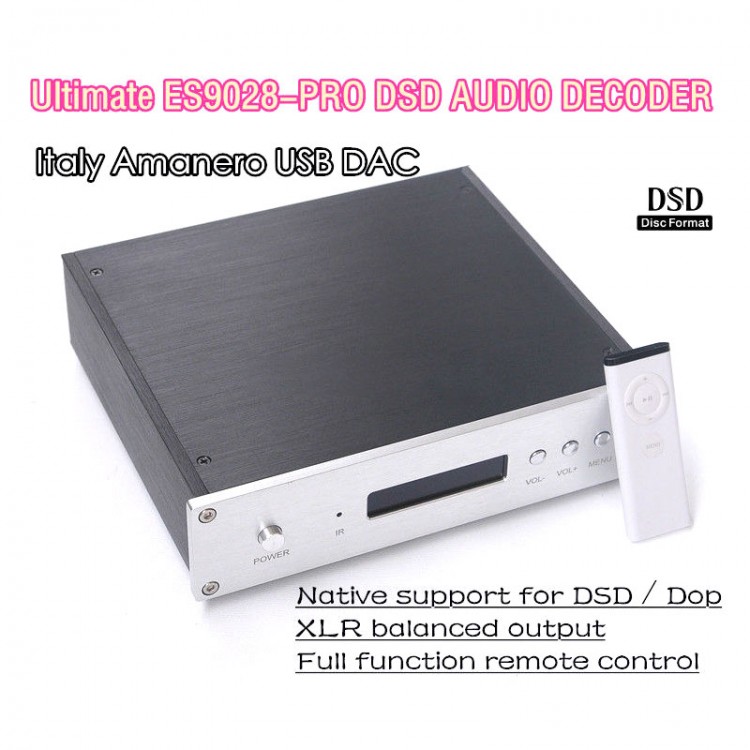

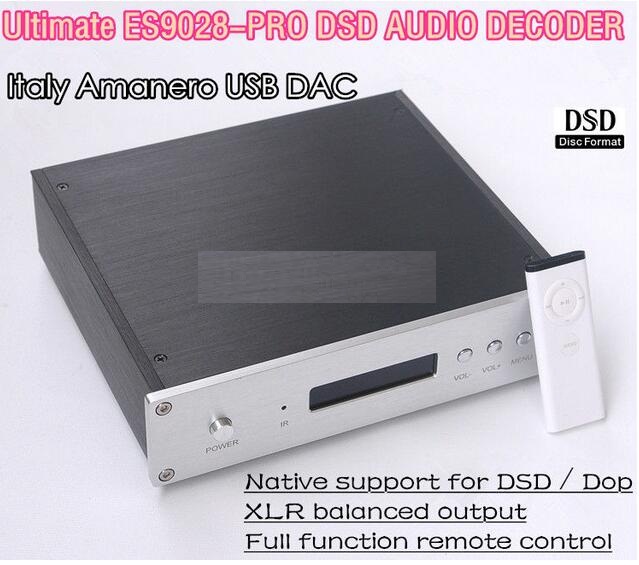

- Ultimate ES9028PRO DAC DSD AUDIO DECODER
- Italy Amanero USB DAC, Supports PCM384K / DSD
- Native support for DSD / Dop
- XLR balanced output

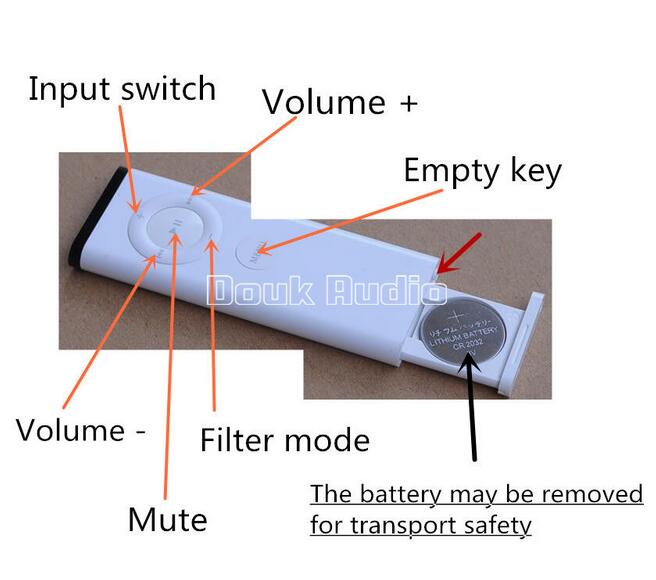

- Full function remote control
- Ultimate Op-amps: OPA1611A * 4 + LME49990 * 2
- Dynamic range: ≥120dB, distortion 0.0003%
- Frequency response: 20Hz-20kHz +/- 0.08dB
- Line output: RCA output level Single-ended 2.0 Vrms, XLR balance 4.0 Vrms
- Aluminum alloy chassis size: W218 × D199 × H60 mm
- Weight: 2.5Kg
- Input Voltage: 110V (115V) / 220V (235V)

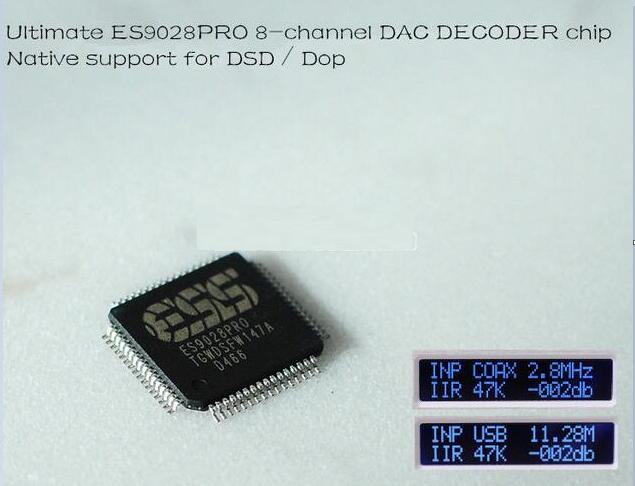

Bulit-in eight independent dac used in two channels, equivalent to a channel four dac parallel output, high resolution, large dynamic and good sound field performance.

Italy Amanero program driver and installation tutorial:Click here

Features:
- Under the control of mcu, support button control coaxial, fiber and USB switching, filter selection, 120 volume control, shutdown memory, and with full-function remote control.
- Gold-plated RCA input and output socket, to ensure good transmission performance, 25M bandwidth fiber optic receiver, support 192K.
- A comprehensive upgrade 0.1ppm high-precision temperature compensation active crystal, independent regulator power supply, decoder work more stable, better sound quality.
- Analog output using single op amp OPA1611A * 4 + LME49990 * 2 (Ultimate). Imported signal relay constitute protection circuit, the effective protection of your favorite amplifier and speakers from the impact. With XLR balanced output, you can connect more high-end amplifier and active speakers.

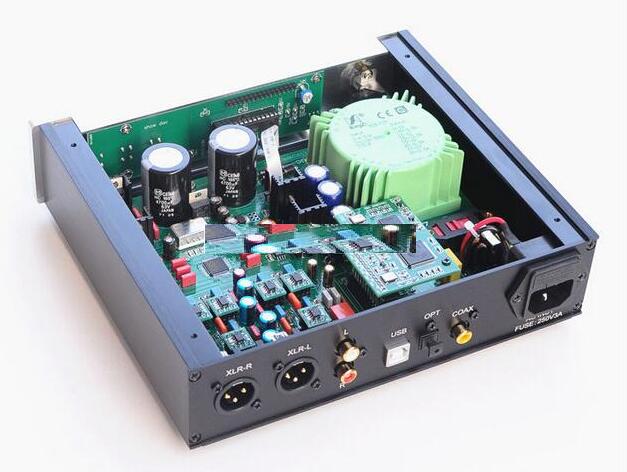

- Fully sealed O-type transformer, zero vibration zero leakage high efficiency, fast recovery rectifier diodes, original Panasonic audio dedicated filter capacitor, with mellow warm tone.

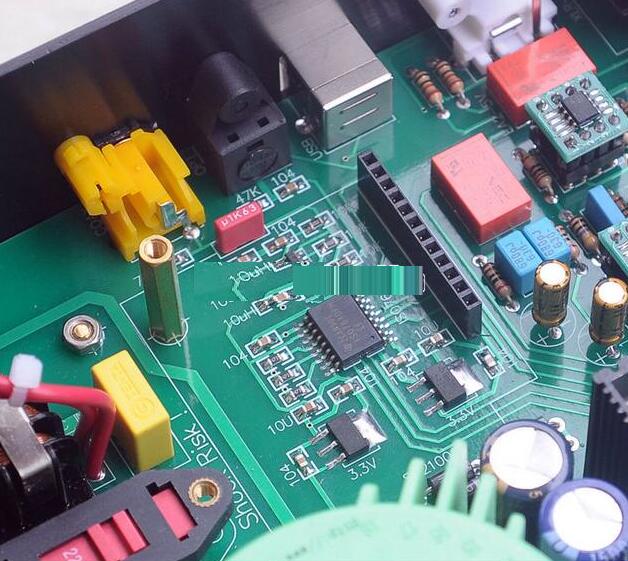

- Up to 12 groups of voltage regulator circuit module, ES9028PRO core power supply using LT LT6363.3.3V * 2 and ASM1117-1.2V * 2, left and right channel independent power supply. ON company industrial voltage regulator chip LM317BT, LM337BT for the op amp to provide pure power.
- Red WIMA0.1U decoupling capacitors, ELNA audio dedicated electrolytic capacitors, Siemens, EVOX and other hifi capacitors. Analog part of the circuit using 718 factory 0.1% high precision metal film resistors.
- The power supply MEI filter, effectively reduce the mains of the decoder interference. Texas Instruments ISO7640 isolation chip, the Italian Amanero module signal and computer interference effectively isolated.
ES9028PRO digital input support format:

COAX (coaxial): PCM: 16-24bit / 44.1, 48,88.2,96,176.4,192 kHz, DSD64 / Dop
OPT (optical fiber): PCM: 16-24bit / 44.1, 48,88.2,96,176.4,192 kHz, DSD64 / Dop

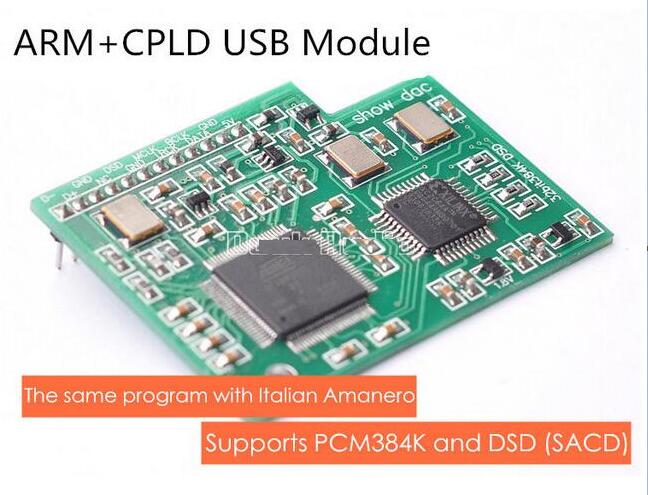

Italy Amanero USB module:
- PCM16-32BIT44.1,48,88.2,96,176.4,192,352.8,384 kHz
- DSD64 (2.8M), DSD128 (5.6M), DSD256 (11.28M)

USB interface system support:Support WIN XP, WIN7, WIN8, WIN8.1, WIN10. Support Mac OS system (10.6 or above don't need to install the driver), support part of Android native platform (need to buy OTG line, the phone output current is not enough need add USB power supply, some mobile phone is not compatible).

This product is DAC audio decoder, does not support direct reading U disk, SD card and other carriers.

Package includes:
- 1 x ES9028PRO DAC
- 1 x Remote Control
- 1 x Power Cord
