|Quantity||3+ units||10+ units||30+ units||50+ units||More|
|Price /Unit||$56.73||$55.57||$53.84||$51.52||Contact US|

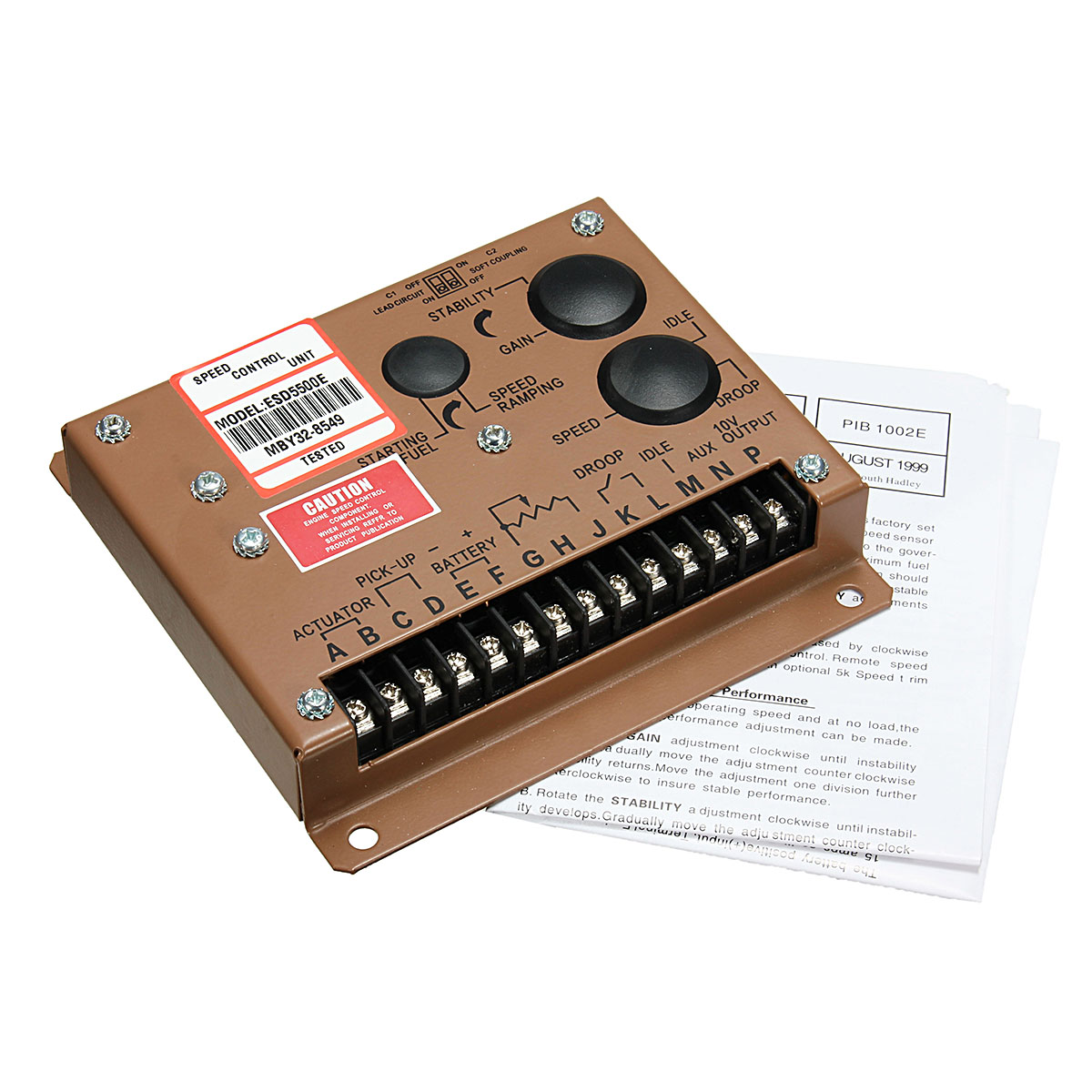

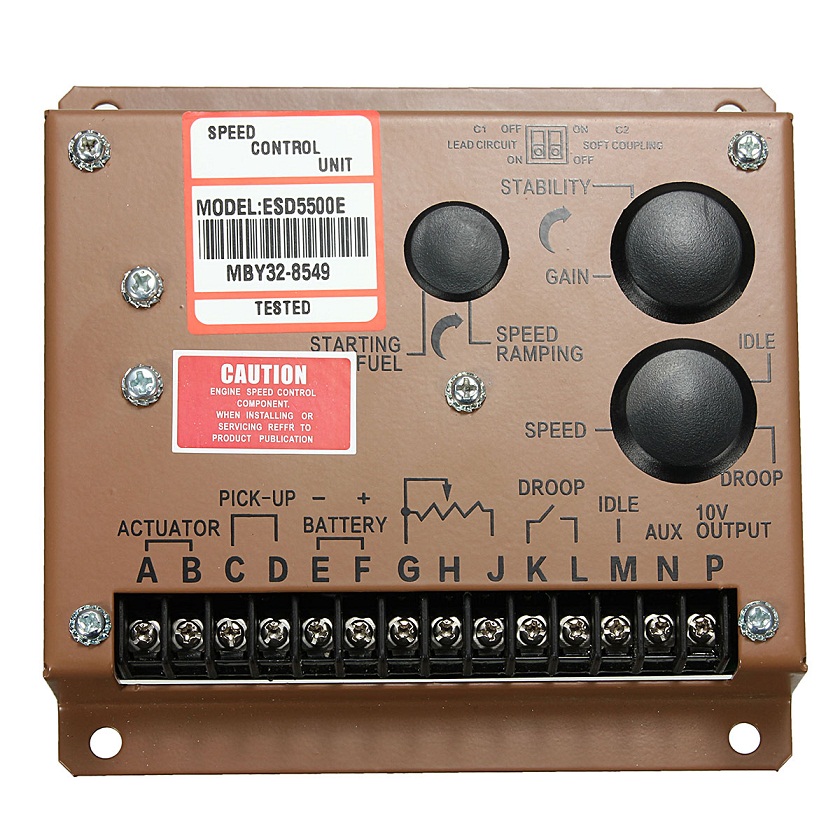

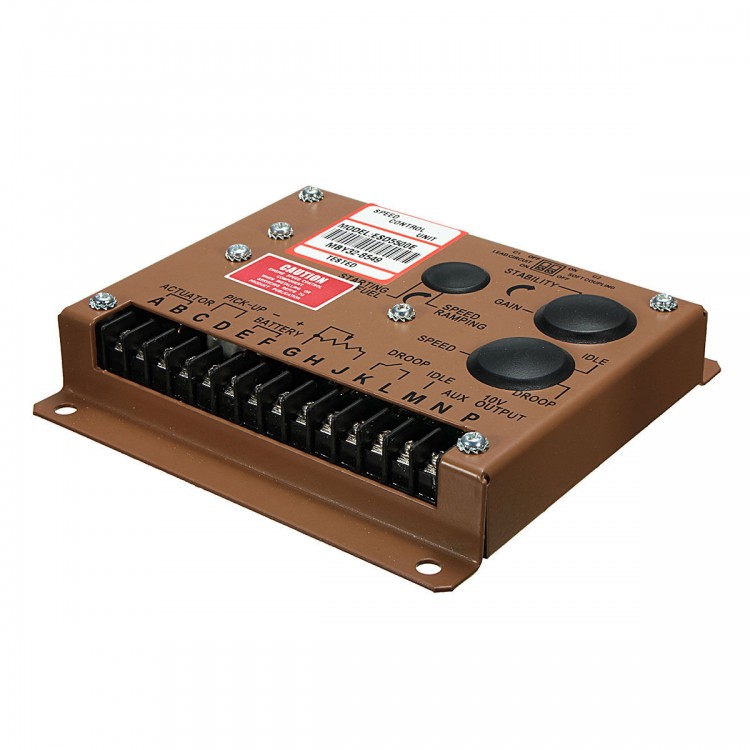

ESD5500E Electronic Engine Speed Controller Governor ESD5111 GAC Generator Genset Parts
- The ESD5500E speed governor is an all electronic device designed to control engine speed with fast and precise response to transient load changes. This closed loop control,when connected to a proportional electric actuator and sup-plied with a magnetic speed sensor signal, will control a wide variety of engines in an isochronous or droop mode. It is designed for high reliability and
built ruggedly to withstand the engine environment.
- Cummins ESD5500E speed governor Series is compatible with all GAC proportional actuators except the ACB2000 electric actuator. When the Cummins ESD5500E speed governor Series is used with a ADC100 Series electric actuator, the DROOP The ESD5500E Series speed control unit is compatible with all GAC proportional actuators except the ACB2000 electric actuator. When the - ESD5500E Series speed control unit is used with a ADC100 Series electric actuator, the DROOPadjustment range will be less due to this actuator's low current demand.
- ESD5500E built on the basis of ESD5111,the start of the new fuel control and smooth slow start to control the process, these new features can be resolved in the engine to start the process by the rapid filling of black smoke caused by the phenomenon has greatly improved the engine's life .
- At present,it is very rich, perfect models in the new generators are widely in use.
- RPM Stability: <±0.25%
- Speed Range: 1KHz ~ 7.5KHz
- Thermal Stability: Max ±1%
- IDLE Regulation: 160 ±20Hz
- DROOP Regulation: Minimum 15Hz ±6Hz/ 1 Amp
- Maximum: 400Hz ±75Hz/ 1 Amp
- External Speed Regulation: ±200Hz (with 1 KΩ connected)
- AUX Input Sensitivity: 148Hz / 1V., ±10Hz
- Impedance: 1MΩ
- Start Fuel IDLE Adjustment: 160 ± 20Hz ~ 70% of set speed
- Ramp Time Adjustion:1.5-20Sec
- 19V Output current:Max 20mA
- Working Temperature Range: -40 ~ 85 °C
- Working Humidity Range: Maximum 95%
- Stocking Temperature: -55 ~ 90 °C
- Shocking: 20-100HZ 500mm/Sec.
- Voltage: 12V or 24V DC Battery System
- Grounding Pole: Negative pole
- Power Supply: 50mA
- Actuator Continuous Current: Minimum 2.5A, Maximum 10A
- Speed Sensor Signal: 0.5-120 RMS
- Droop adjustment Min.(K-L Jumpered) :15Hz. ± 6Hz. per 1.0 A change
- Droop adjustment Max.(K-L Jumpered) :400Hz. ± 75Hz. per 1.0 A change
- Droop Adj. Max. (K-L Jumpered) :875Hz., ± 75Hz. per 1.0 A change
- Droop Adj. Min. (K-L Jumpered):15Hz., ± 6Hz. per 1.0 A change
- Speed Trim Range: ± 200Hz.
- Remote Variable Speed Rang :500 -7.5Hz. or any part thereof
-1 x Speed Controller
