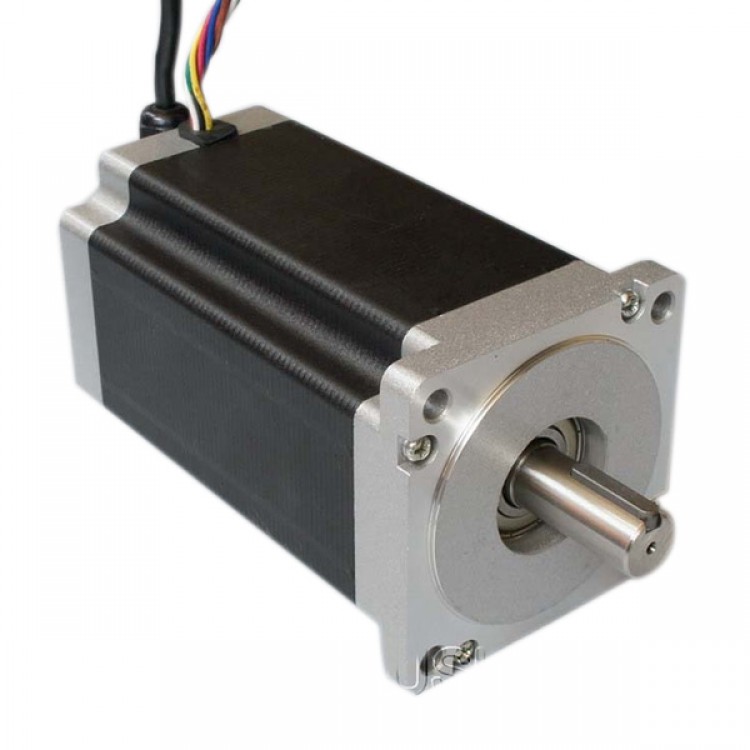

Extended 86x 150 Two Phases Stepper Motor 5A Rated Current 12N/m High Speed Provided High Quality and Good Performance
Description:
- The motor is a 4-line high-speed motor of high-quality, the raw material is better than the general motor, high speed well performance, small noise and vibration.
- The limit speed can reach 3000rpm, 1200rmp can enable engraving machine or CNC milling motion to work stably.
- Base: 86 x 86
- Length: 150 (shaft not calculated)
- Phase resistance: 0.5R
- Rated current: 5A.
- Maximum torque: 12N/m
- Shaft diameter: 14mm Length: 30
- Weight: 5.2KG
- Mounting hole: 5.5 x 4
- Center distance: 69.9 x 69.9
- The positioning flange front cover: 73 x 1.5 height
